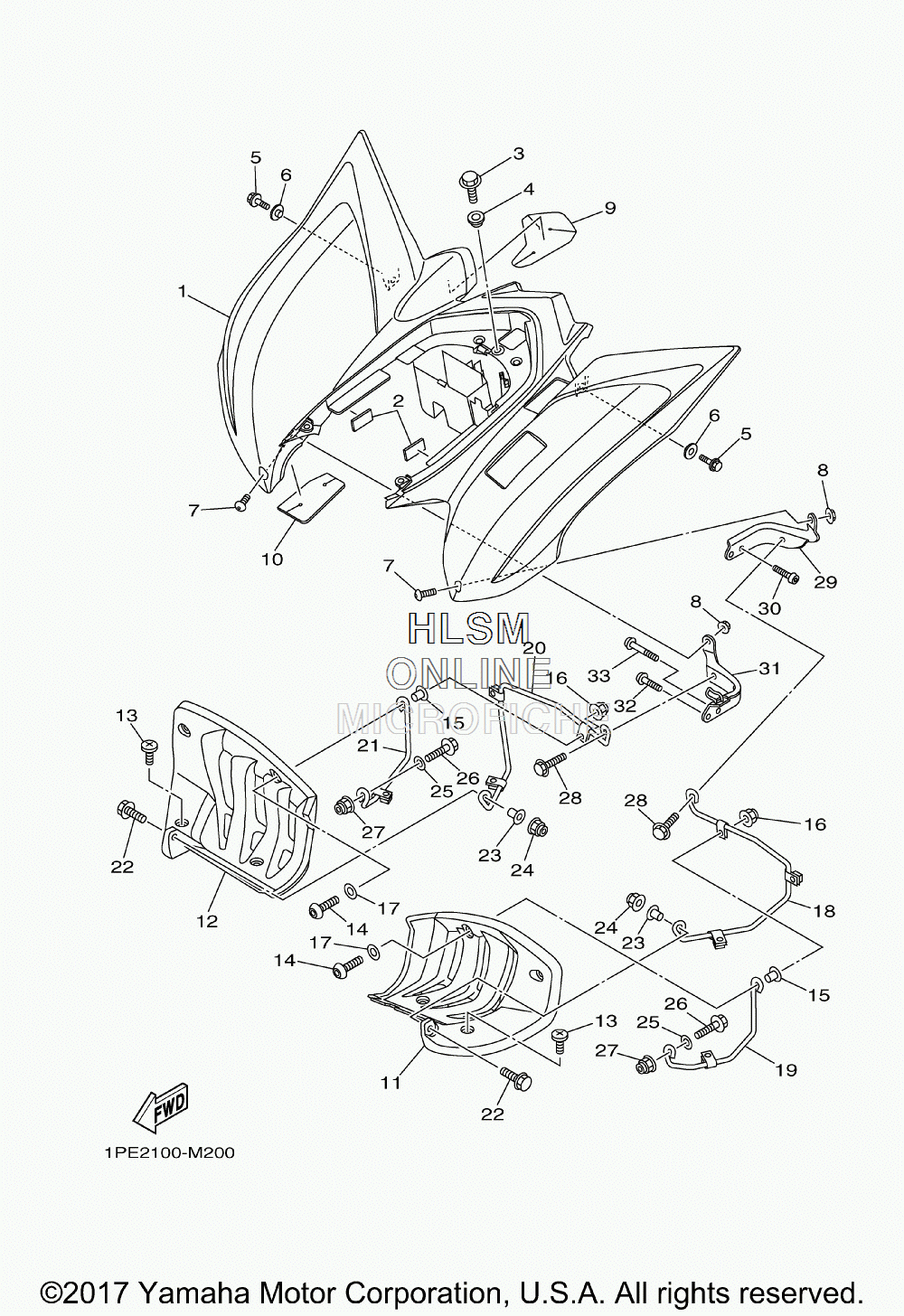

FENDER - REAR для Yamaha RAPTOR 700R - 2018 года выпуска
-
№АртикулНазвание
-
11PE-F1600-70-00 REAR FENDER ASSYREAR FENDER ASSY
-
21S3-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
390105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
490387-06153-00 COLLARCOLLAR
-
590105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
690387-06153-00 COLLARCOLLAR
-
790111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
91S3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
101S3-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
111PE-F1621-00-00 FLAPFLAP
-
121PE-F1691-00-00 FLAPFLAP
-
1390154-05043-00 SCREW, BINDINGSCREW, BINDING
-
1492012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590560-06201-00 SPACERSPACER
-
1695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790201-06076-00 WASHER, PLATEWASHER, PLATE
-
181S3-2164F-10-00 STAY 1STAY 1
-
191S3-2164H-20-00 STAY 3STAY 3
-
205TG-2164G-20-00 STAY 2STAY 2
-
211S3-2164J-20-00 STAY 4STAY 4
-
2295812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06204-00 COLLARCOLLAR
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-08053-00 WASHER, PLATEWASHER, PLATE
-
2695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2795602-08200-00 NUT, U FLANGENUT, U FLANGE
-
2895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
291PE-F1643-00-00 STAY, REARSTAY, REAR
-
3092012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
311PE-F1644-00-00 STAY, REARSTAY, REAR
-
3292012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3392012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
