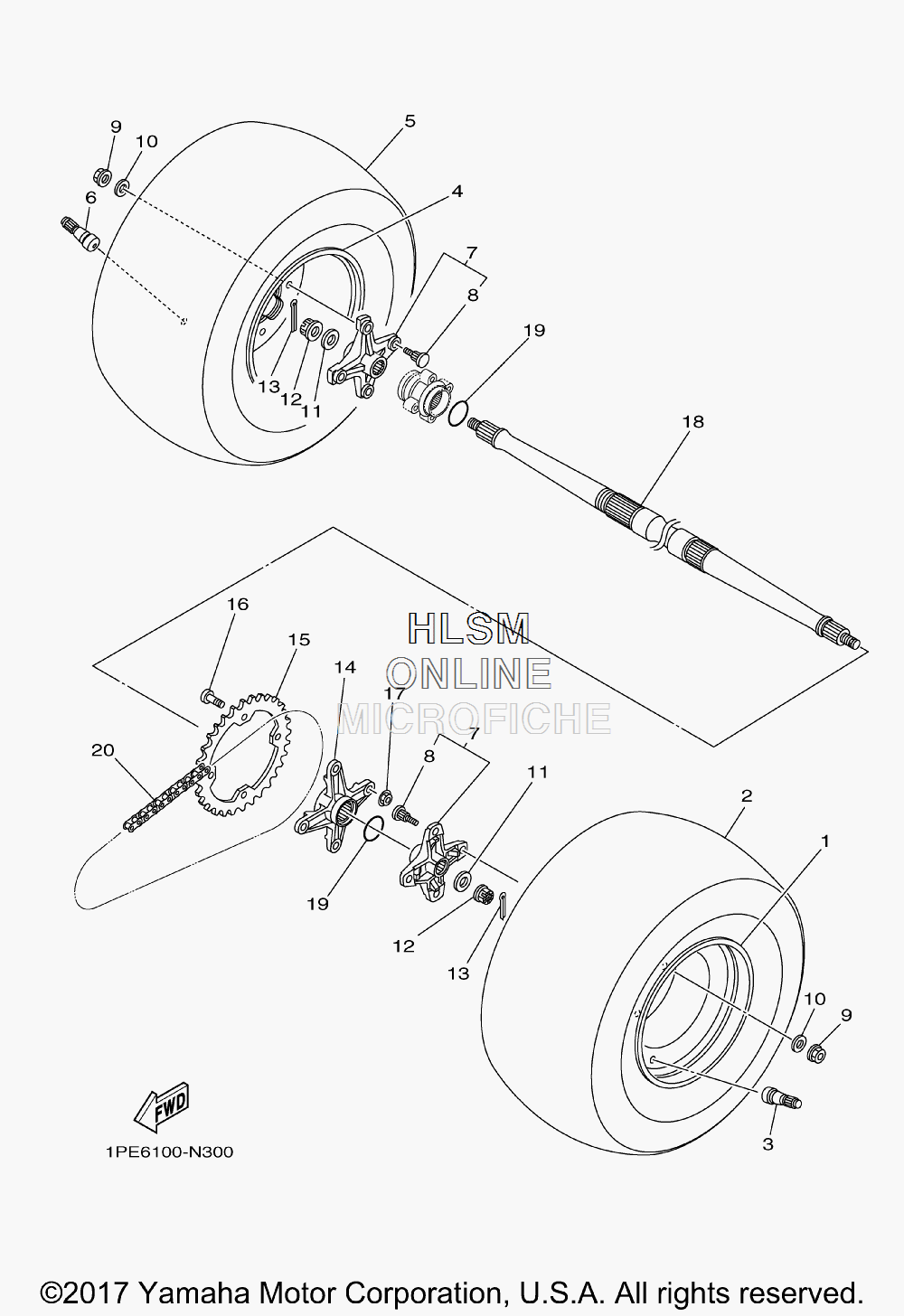

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 700R - 2018 года выпуска
-
№АртикулНазвание
-
11TD-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09801-00 TIRE (AT20X10-9 M976Y)TIRE (AT20X10-9 M976Y)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41TD-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-09801-00 TIRE (AT20X10-9 M976Y)TIRE (AT20X10-9 M976Y)
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
71PE-F53K0-00-00 WHEEL SHAFT COLLAR ASSYWHEEL SHAFT COLLAR ASSY
-
890114-10020-00 ...BOLT, SERRATION...BOLT, SERRATION
-
995702-10500-00 NUT, FLANGENUT, FLANGE
-
1092902-10200-00 WASHERWASHER
-
1190201-16023-00 WASHER, PLATEWASHER, PLATE
-
1290171-16002-00 NUT, CASTLENUT, CASTLE
-
1390252-03001-00 PIN, COTTERPIN, COTTER
-
141PE-F5386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
155TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1690109-10013-00 BOLTBOLT
-
1790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
181S3-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
1993210-36769-00 O-RINGO-RING
-
2094568-H6098-00 CHAIN (DID520VP2-T)CHAIN (DID520VP2-T)
