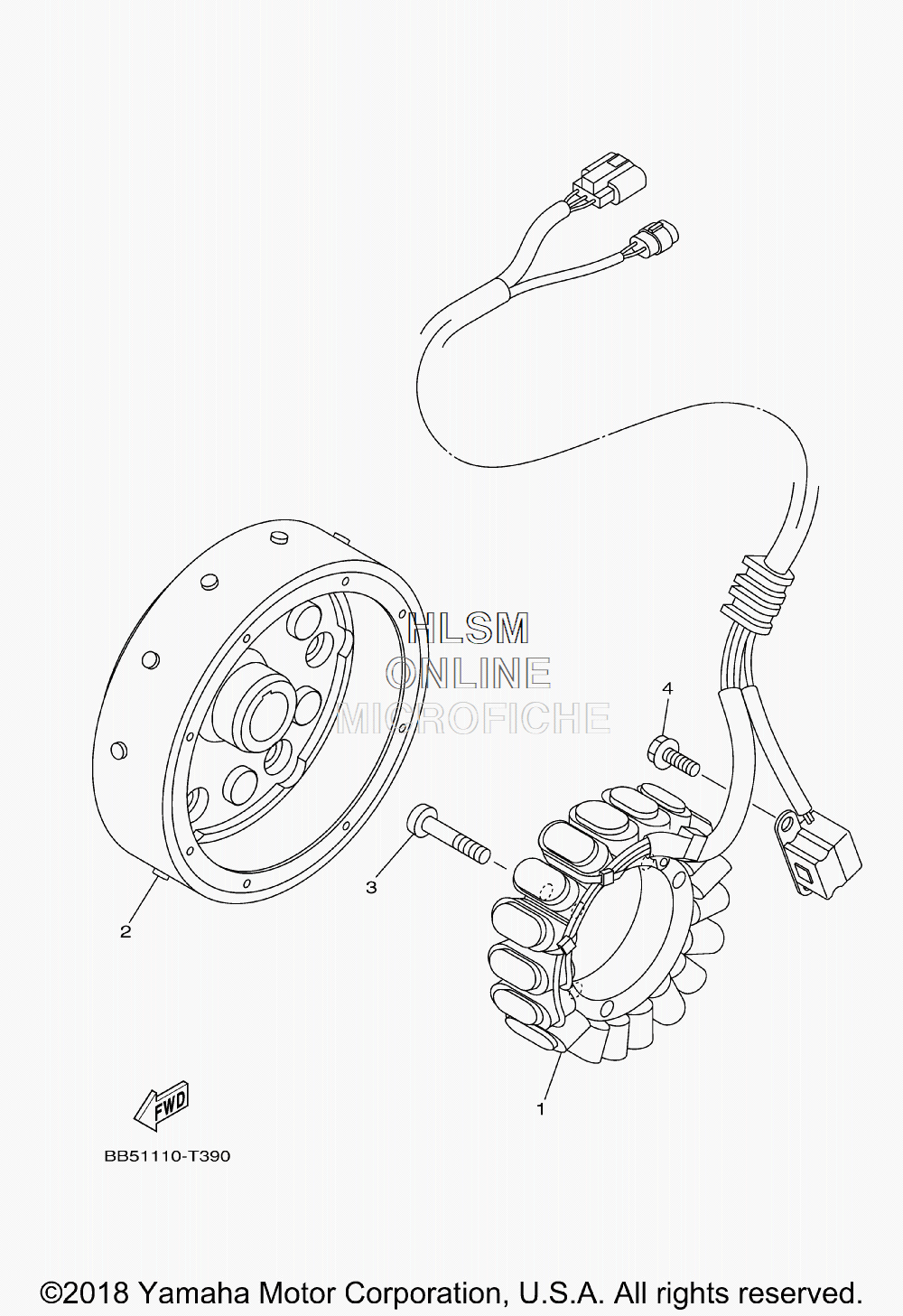

GENERATOR для Yamaha KODIAK 450 4WD - 2019 года выпуска
-
№АртикулНазвание
-
1BB5-81410-00-00 STATOR ASSYSTATOR ASSY
-
2BB5-81450-00-00 ROTOR ASSYROTOR ASSY
-
391312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490105-05025-00 BOLT, FLANGEBOLT, FLANGE
