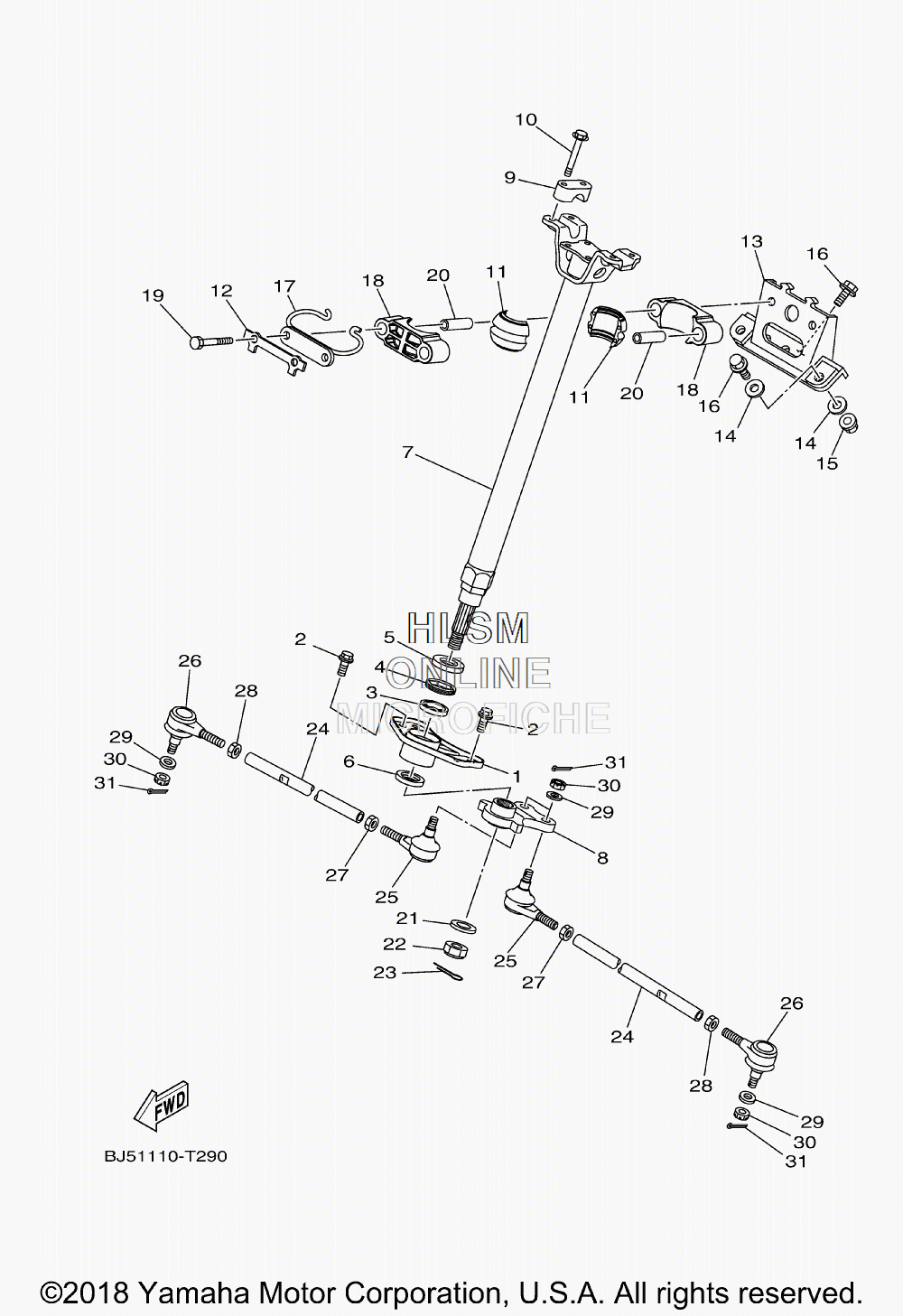

STEERING для Yamaha KODIAK 450 4WD - 2019 года выпуска
-
№АртикулНазвание
-
11CU-F131H-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
290105-08237-00 BOLT, FLANGEBOLT, FLANGE
-
393306-203YN-00 BEARINGBEARING
-
493102-25081-00 OIL SEALOIL SEAL
-
593102-25099-00 OIL SEALOIL SEAL
-
62GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
7BJ5-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
8BJ5-F3816-01-00 ARM, PITMANARM, PITMAN
-
98K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1095812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
111CT-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
121CT-F3894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
131CT-F253F-00-00 BRACKET, STEERINGBRACKET, STEERING
-
1490201-08055-00 WASHER, PLATEWASHER, PLATE
-
1590179-08674-00 NUTNUT
-
1695812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
171CT-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
181CT-F1957-00-00 BRACKET, STEERING 2BRACKET, STEERING 2
-
1997012-08080-00 BOLTBOLT
-
201CT-F1545-00-00 COLLAR, 2COLLAR, 2
-
2190201-14021-00 WASHER, PLATEWASHER, PLATE
-
2290185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2391402-20025-00 PIN, COTTERPIN, COTTER
-
24BB5-23831-00-00 ROD, TIEROD, TIE
-
251UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
261UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2795302-10700-00 NUT, HEXAGONNUT, HEXAGON
-
2890170-10010-00 NUT (LEFT HAND THREAD)NUT (LEFT HAND THREAD)
-
2990209-10229-00 WASHERWASHER
-
3090171-10001-00 NUT, CASTLENUT, CASTLE
-
3191402-25020-00 PIN, COTTERPIN, COTTER
