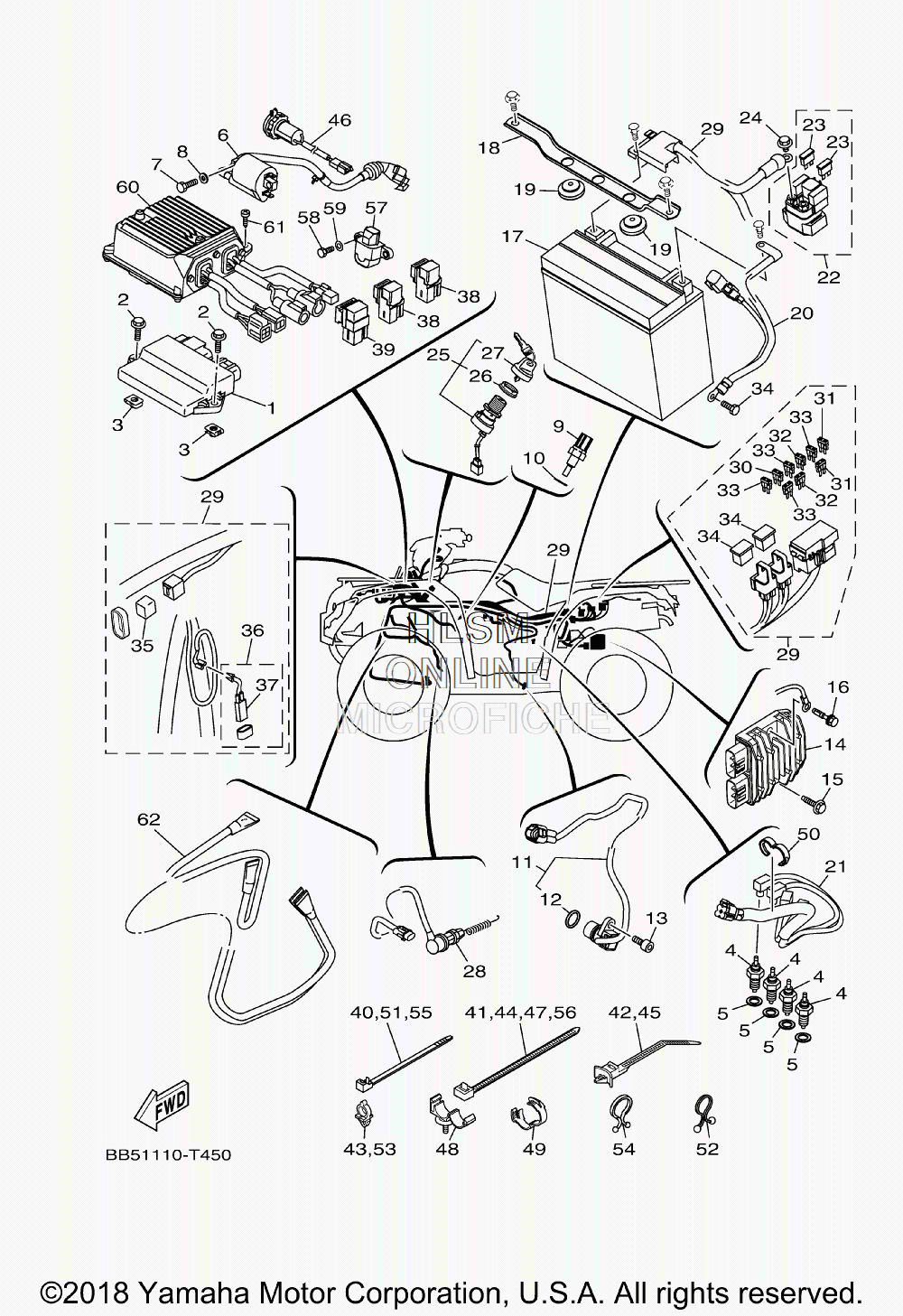

ELECTRICAL для Yamaha KODIAK 450 EPS 4WD (DEEP GREEN) - 2019 года выпуска
-
№АртикулНазвание
-
1BB5-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
6BB5-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
797002-06020-00 BOLTBOLT
-
892902-06600-00 WASHER, PLATEWASHER, PLATE
-
94P9-83591-00-00 THERMO UNITTHERMO UNIT
-
1090430-10004-00 GASKETGASKET
-
113C2-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
124D9-81168-00-00 ...O-RING...O-RING
-
1390110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
141D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1590105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
1690109-06865-00 BOLTBOLT
-
175FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
185ND-H2128-02-00 BRACKET, BATTERYBRACKET, BATTERY
-
19371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
20BB5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
215ND-82541-01-00 WIRE, LEADWIRE, LEAD
-
225B4-81940-00-00 STARTER RELAY ASSY (RC19-080A)STARTER RELAY ASSY (RC19-080A)
-
2342X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
2495022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2528P-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
263HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
273HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
28BB5-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
29BB5-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
305JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
315JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
325JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
335JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
345PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
353WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
364GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
374GB-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
388DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
395DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
4090464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
4190464-48800-00 CLAMPCLAMP
-
4290464-38800-00 CLAMPCLAMP
-
4390464-10833-00 CLAMPCLAMP
-
4490464-48800-00 CLAMPCLAMP
-
4590464-38800-00 CLAMPCLAMP
-
461HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
4790464-48800-00 CLAMPCLAMP
-
4890464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
4990464-28003-00 CLAMPCLAMP
-
5090464-16001-00 CLAMPCLAMP
-
5190464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
52341-82594-00-00 CLAMPCLAMP
-
5390464-10833-00 CLAMPCLAMP
-
5490464-37257-00 CLAMPCLAMP
-
5590464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
5690464-48800-00 CLAMPCLAMP
-
573B4-82576-10-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
5897002-05016-00 BOLTBOLT
-
5992902-05600-00 WASHER, PLATEWASHER, PLATE
-
60BB5-859A0-00-00 POWER STRG. CONT. UNIT ASSYPOWER STRG. CONT. UNIT ASSY
-
6195022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
62BB5-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
