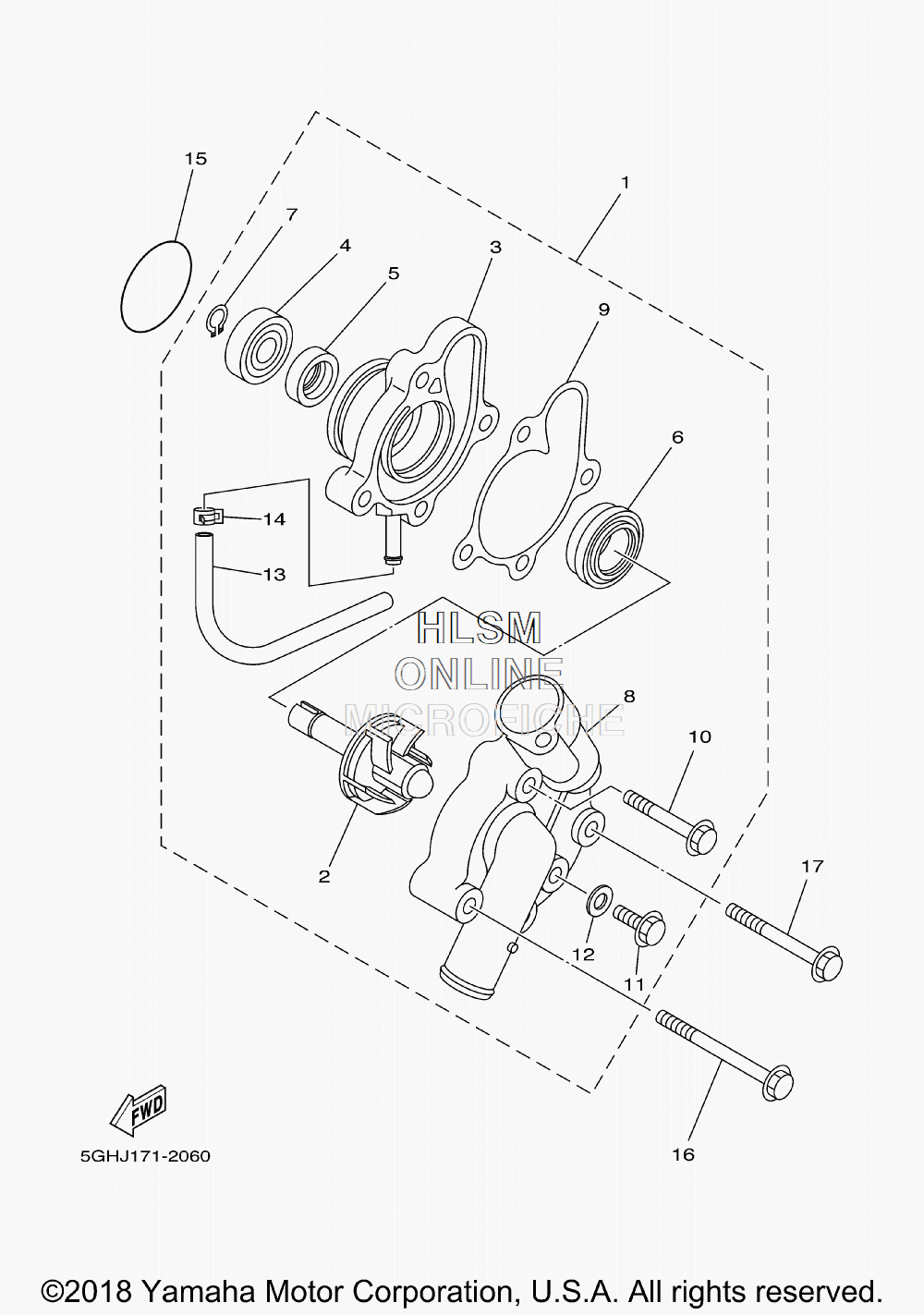

WATER PUMP ASSY для Yamaha KODIAK 450 EPS 4WD (DEEP GREEN) - 2019 года выпуска
-
№АртикулНазвание
-
15GH-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
25CG-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
35GH-12421-01-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
493306-00006-00 ...BEARING...BEARING
-
593101-10090-00 ...OIL SEAL...OIL SEAL
-
611H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
799009-10400-00 ...CIRCLIP...CIRCLIP
-
85GH-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
95GH-12428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
1090105-06086-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1195022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1290430-06014-00 ...GASKET...GASKET
-
1390446-06001-00 ...HOSE (L300)...HOSE (L300)
-
1490467-06194-00 ...CLIP...CLIP
-
1593210-33133-00 O-RINGO-RING
-
1695022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06050-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- AIR FILTER
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- COOLING SYSTEM
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- GUARD
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- HEADLIGHT W/ METER AND COVER
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- • WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
