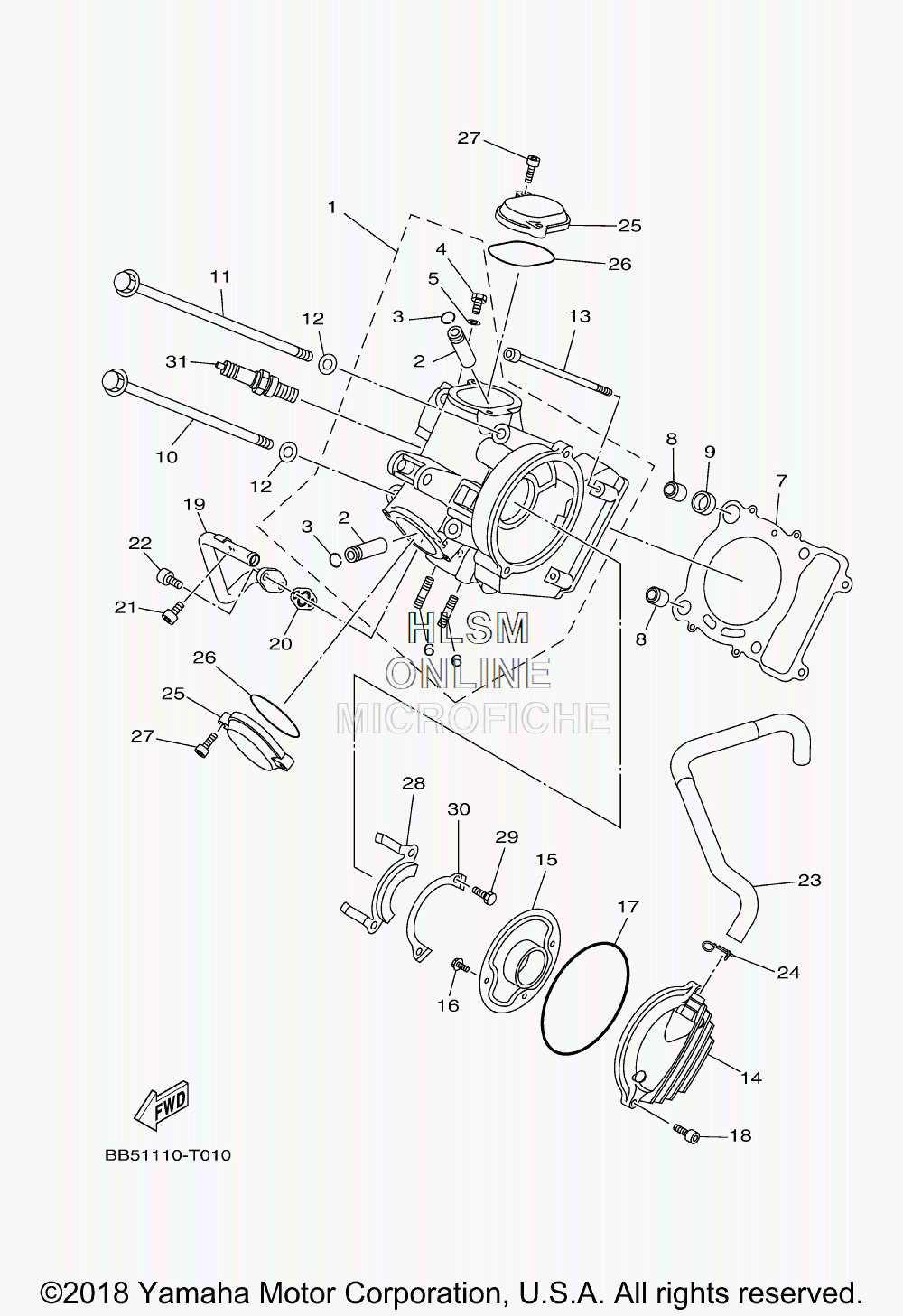

CYLINDER HEAD для Yamaha KODIAK 450 EPS 4WD HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1BB5-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
495022-06014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06192-00 ...GASKET...GASKET
-
695612-08620-00 ...BOLT, STUD...BOLT, STUD
-
75GH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
899530-14016-00 PIN, DOWELPIN, DOWEL
-
990430-14240-00 GASKETGASKET
-
1090105-10137-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10136-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-10128-00 WASHER, PLATEWASHER, PLATE
-
1391312-06140-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
144WU-11160-01-00 BREATHER ASSYBREATHER ASSY
-
154KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1793211-06635-00 O-RINGO-RING
-
1891312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19BB5-14871-00-00 PIPE 1PIPE 1
-
205XT-14815-10-00 GASKETGASKET
-
2191312-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2291317-06016-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
23BB5-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2490467-140A4-00 CLIPCLIP
-
252NL-11186-12-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2693210-57634-00 O-RINGO-RING
-
2791312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
285GH-1111F-00-00 PLATEPLATE
-
2997002-06012-00 BOLTBOLT
-
3090215-06003-00 WASHER, LOCKWASHER, LOCK
-
31DR7-EA000-00-00 PLUG, SPARK (NGK DR7EA) (WITH RESISTER)PLUG, SPARK (NGK DR7EA) (WITH RESISTER)
