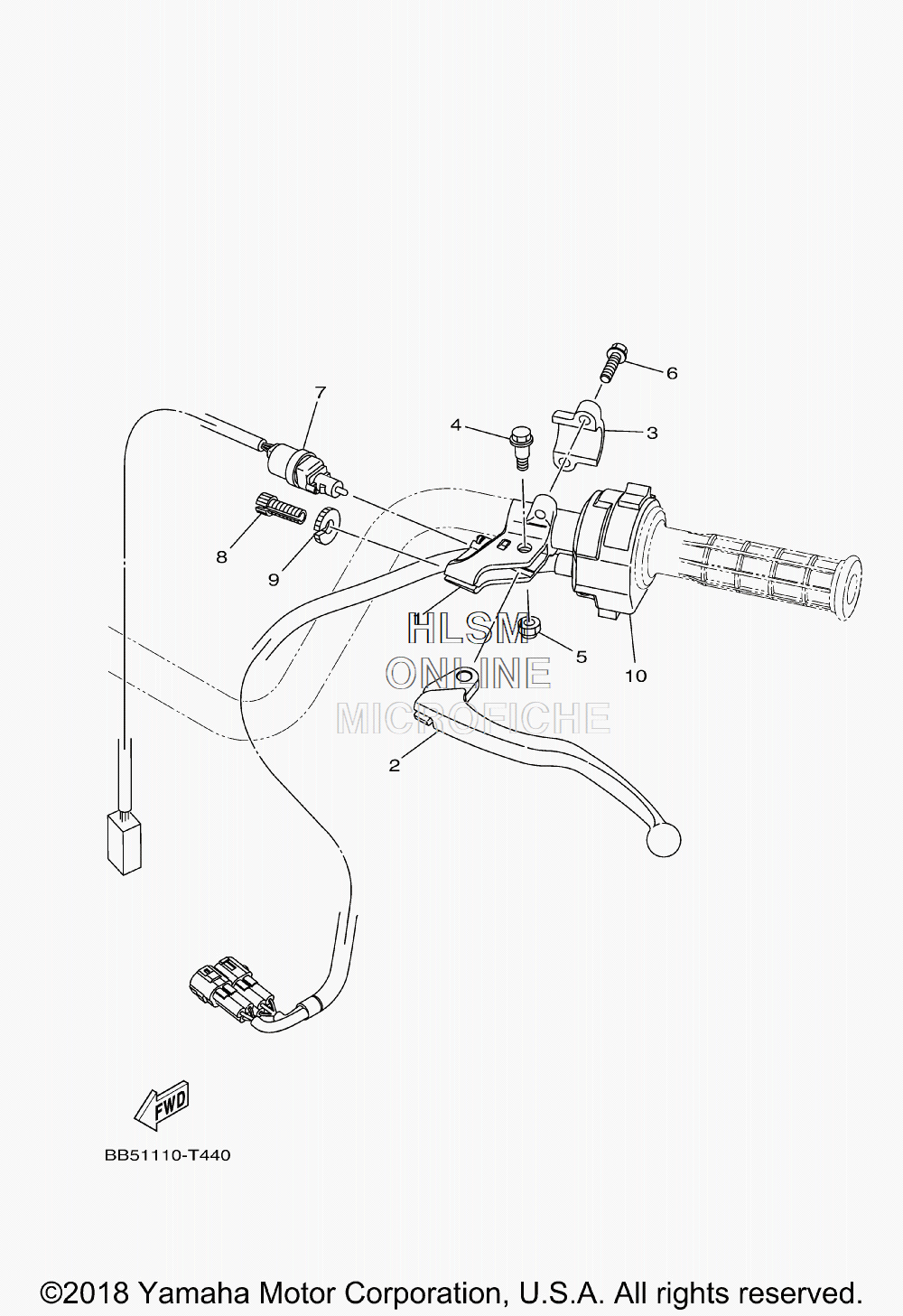

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha KODIAK 450 EPS 4WD HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
11YW-82911-10-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22HT-83912-01-00 LEVER 1LEVER 1
-
35LP-82913-11-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
490109-06799-00 BOLTBOLT
-
595607-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
695027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
73FA-83980-03-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
890123-08002-00 BOLTBOLT
-
990179-08030-00 NUTNUT
-
101S3-83973-11-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
