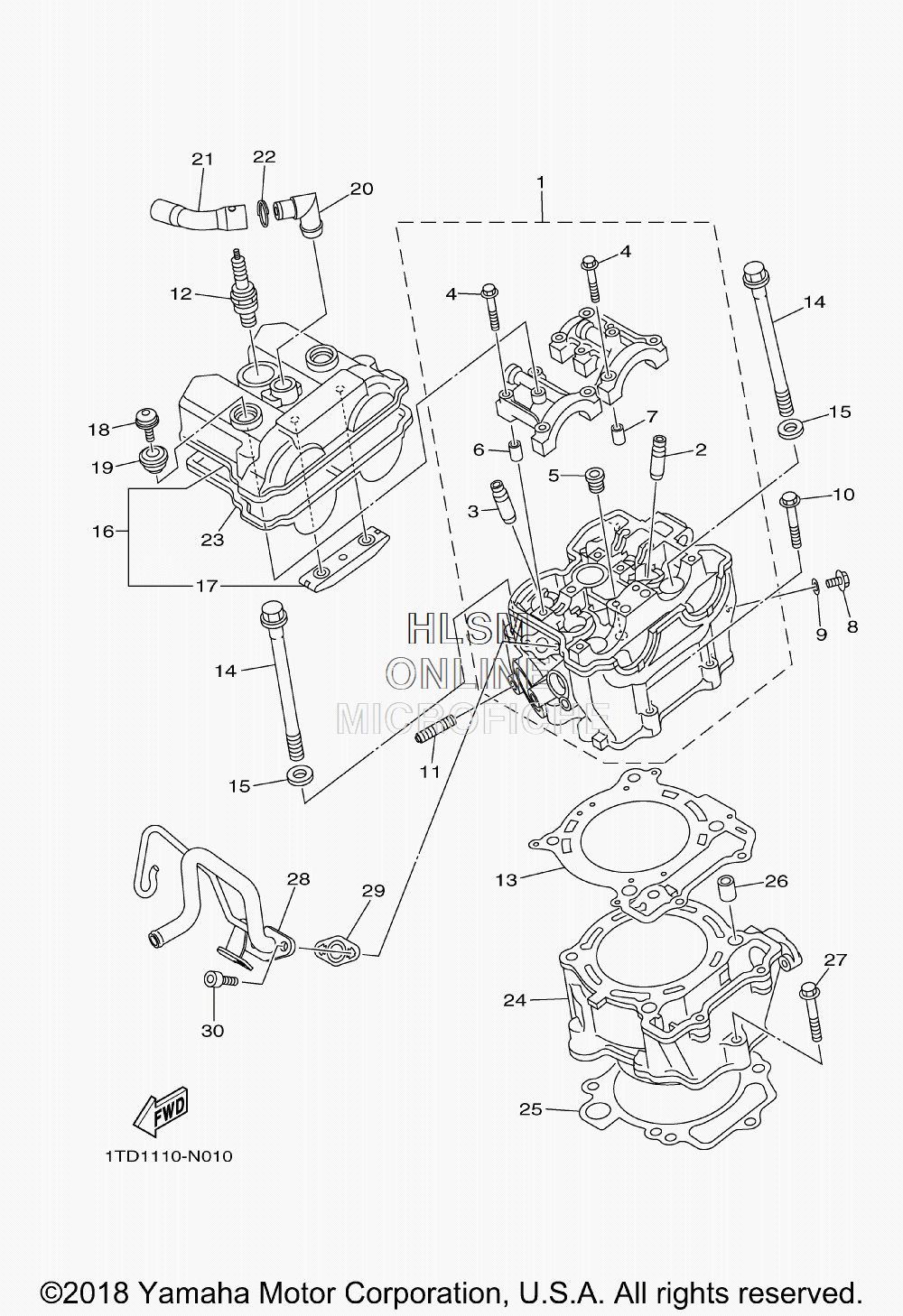

CYLINDER для Yamaha YFZ 450R SPECIAL EDITION (DARK RED) - 2019 года выпуска
-
№АртикулНазвание
-
11TD-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25TA-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
35TA-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590340-12007-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
895022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
990430-06014-00 GASKETGASKET
-
1095022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1190116-08022-00 BOLT, STUDBOLT, STUD
-
12CR89-E0000-00-00 PLUG, SPARK (NGK CR8E)PLUG, SPARK (NGK CR8E)
-
132S2-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1490105-10163-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-10025-00 WASHER, PLATEWASHER, PLATE
-
162S2-11190-20-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
175BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
1890109-06203-00 BOLTBOLT
-
195VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2018P-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
211TD-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2290468-100A1-00 CLIPCLIP
-
232S2-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
242S2-11311-30-00 CYLINDER 1CYLINDER 1
-
252S2-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2693612-16254-00 PIN, DOWELPIN, DOWEL
-
2795022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
281TD-14871-00-00 PIPE 1PIPE 1
-
295TJ-14815-00-00 GASKETGASKET
-
3091314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
