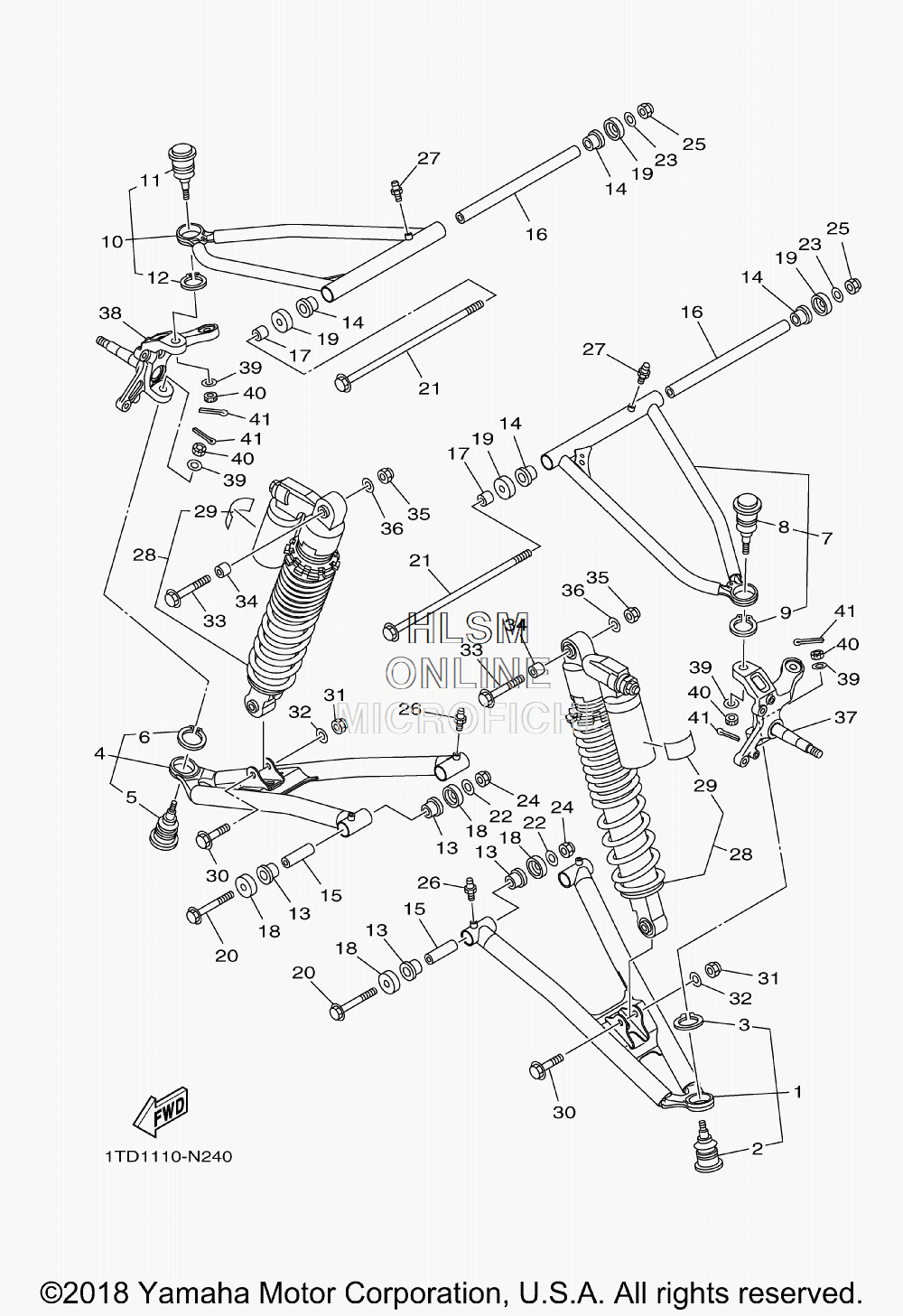

SUSPENSION - FRONT WHEEL для Yamaha YFZ 450R SPECIAL EDITION (DARK RED) - 2019 года выпуска
-
№АртикулНазвание
-
11TD-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
41TD-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
55LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
699009-30400-00 ...CIRCLIP...CIRCLIP
-
71TD-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
85LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
999009-30400-00 ...CIRCLIP...CIRCLIP
-
101TD-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
115LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
1299009-30400-00 ...CIRCLIP...CIRCLIP
-
1390381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1490381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1590387-101R3-00 COLLARCOLLAR
-
1690387-10069-00 COLLARCOLLAR
-
1790387-10043-00 COLLARCOLLAR
-
181UY-23517-01-00 COVER, THRUST 1COVER, THRUST 1
-
191UY-23517-01-00 COVER, THRUST 1COVER, THRUST 1
-
2090105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
2190105-10301-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-10037-00 WASHER, PLATEWASHER, PLATE
-
2390201-10037-00 WASHER, PLATEWASHER, PLATE
-
2490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
281TD-F3390-90-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
291HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
3090105-10339-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-10035-00 WASHER, PLATEWASHER, PLATE
-
3390105-10351-00 BOLT, FLANGEBOLT, FLANGE
-
3490387-10043-00 COLLARCOLLAR
-
3590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-10037-00 WASHER, PLATEWASHER, PLATE
-
3718P-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
3818P-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3990209-10229-00 WASHERWASHER
-
4090171-10001-00 NUT, CASTLENUT, CASTLE
-
4191402-20020-00 PIN, COTTERPIN, COTTER
