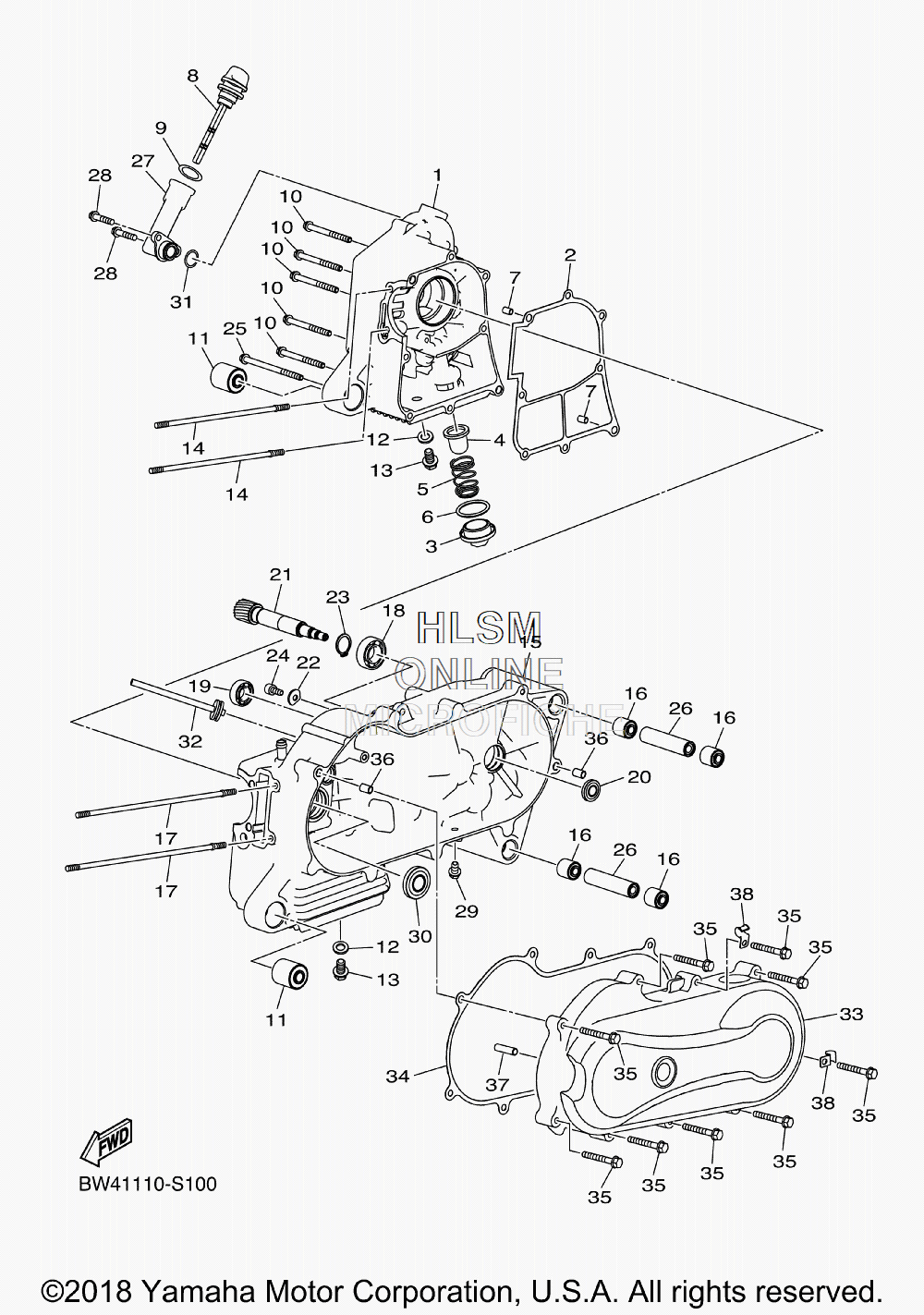

CRANKCASE для Yamaha YFZ50 - 2019 года выпуска
-
№АртикулНазвание
-
1BD3-E5121-00-00 CRANKCASE 2CRANKCASE 2
-
2BD3-E5314-00-00 GASKET, CRANKCASE 1GASKET, CRANKCASE 1
-
3BD3-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
4BD3-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
5BD3-E3469-00-00 SPRINGSPRING
-
6BD3-E119B-00-00 O-RINGO-RING
-
7BD3-E3516-00-00 PIN, DOWELPIN, DOWEL
-
8BD3-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
9BD3-E2843-00-00 O-RINGO-RING
-
10BD3-H1826-10-00 BOLTBOLT
-
11BD3-E4844-00-00 DAMPERDAMPER
-
12BD3-E5158-00-00 WASHERWASHER
-
13BD3-G2544-10-00 BOLTBOLT
-
14BW4-G2742-00-00 BOLTBOLT
-
15BW4-E5111-00-00 CRANKCASE 1CRANKCASE 1
-
16BD3-E5328-00-00 SPACER, DAMPERSPACER, DAMPER
-
17BW4-G3143-00-00 BOLTBOLT
-
18BD3-E1428-00-00 BEARING 1BEARING 1
-
19BD3-E1429-00-00 BEARING 2BEARING 2
-
20BD3-E511A-00-00 OIL SEALOIL SEAL
-
21BD3-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
22BD3-E511B-10-00 OIL SEALOIL SEAL
-
23BD3-E5744-00-00 CIRCLIPCIRCLIP
-
24BD3-G3886-10-00 BOLTBOLT
-
25BD3-G5154-10-00 BOLTBOLT
-
26BD3-E5327-10-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
27BD3-E5112-00-00 PIPE, OILPIPE, OIL
-
28BD3-E3573-10-00 BOLT 1BOLT 1
-
29BW4-G5241-00-00 BOLT, FLANGE W/WASHERBOLT, FLANGE W/WASHER
-
30BD3-E5315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
31BD3-E5114-00-00 O-RINGO-RING
-
32BW4-E532A-00-00 HOSE, BREATHER 2HOSE, BREATHER 2
-
33BW4-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
34BD3-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
35BD3-G1148-10-00 BOLTBOLT
-
36BD3-E3516-00-00 PIN, DOWELPIN, DOWEL
-
37BD3-E5521-00-00 SHAFT 1SHAFT 1
-
38BW4-E5484-00-00 CLAMP 2CLAMP 2
