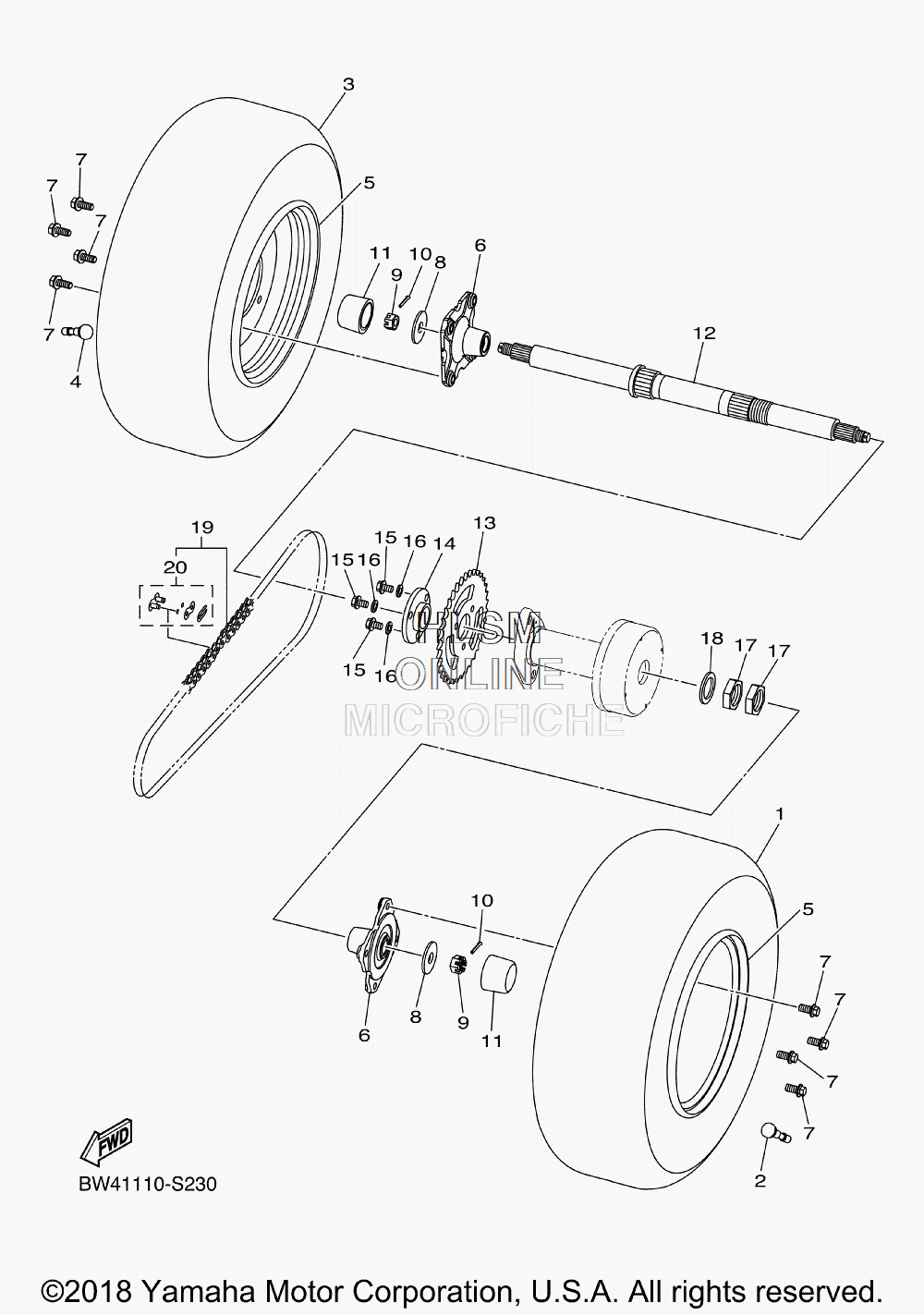

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ50 - 2019 года выпуска
-
№АртикулНазвание
-
1BW4-F53P3-00-00 TIRE (LEFT)TIRE (LEFT)
-
2BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
3BW4-F53P3-00-00 TIRE (RIGHT)TIRE (RIGHT)
-
4BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
5BW4-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
6BW4-F5377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
7BD3-F4592-10-00 BOLTBOLT
-
8BW4-F2243-00-00 WASHER 1WASHER 1
-
9BW4-F5382-00-00 NUT, AXLENUT, AXLE
-
10BD3-F112N-10-00 PINPIN
-
11BD3-F512A-00-00 CAP, WHEELCAP, WHEEL
-
12BW4-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
13BW4-F5438-00-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
14BD3-F5386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
15BW4-F3459-00-00 BOLTBOLT
-
16BD3-F2156-10-00 WASHER, PLATEWASHER, PLATE
-
17BD3-F1636-10-00 NUTNUT
-
18BD3-F3737-00-00 WASHER 1WASHER 1
-
19BW4-F53C0-00-00 CHAINCHAIN
-
20BW4-E6548-00-00 ...JOINT, CHAIN...JOINT, CHAIN
