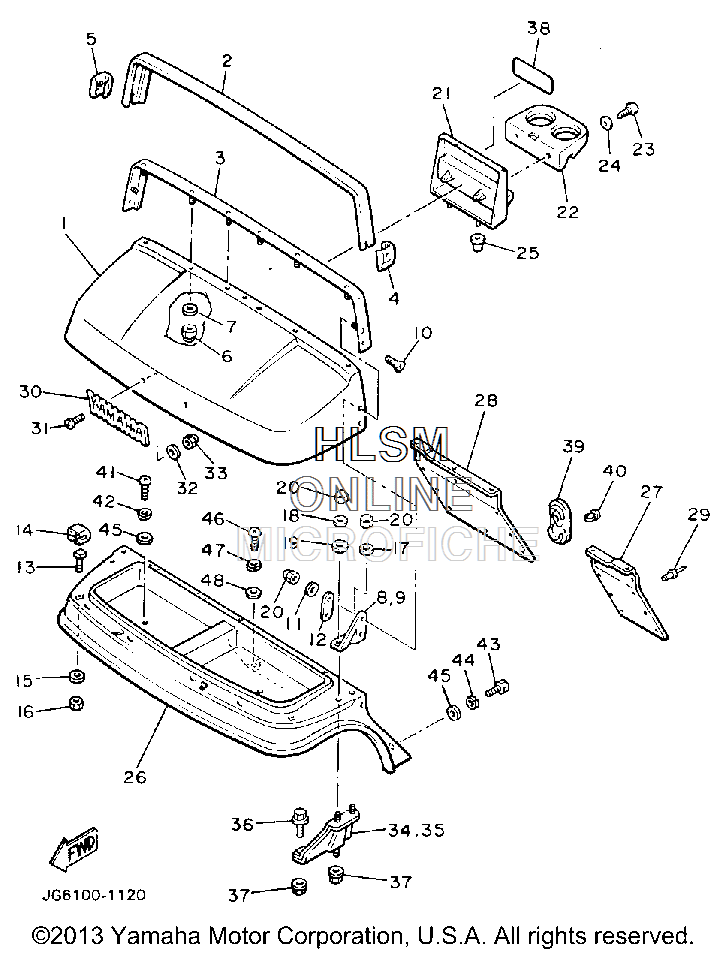

BODY 1 для Yamaha GOLF CAR ELECTRIC [G9EG] (JG6) - 1991 года выпуска
-
№АртикулНазвание
-
1J55-K8116-00-00 COWL, FRONT UPPERCOWL, FRONT UPPER
-
2JG5-K811V-00-00 PROTECTOR 1PROTECTOR 1
-
3JG5-K8261-01-00 PLATE, BODY PROTECT 1 (JG5-K8261-00-00)PLATE, BODY PROTECT 1 (JG5-K8261-00-00)
-
4JG5-K818E-00-00 CAP, PROTECTOR END 1CAP, PROTECTOR END 1
-
5JG5-K818F-00-00 CAP, PROTECTOR END 2CAP, PROTECTOR END 2
-
695601-06200-00 NUT, U-FLANGENUT, U-FLANGE
-
790201-06059-00 WASHER, PLATEWASHER, PLATE
-
8JG5-K811E-00-00 STAY, UPPER COWL (LH)STAY, UPPER COWL (LH)
-
9JG5-K811F-00-00 STAY, UPPER COWL (RH)STAY, UPPER COWL (RH)
-
1090151-06803-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1192990-06200-00 WASHER, PLAINWASHER, PLAIN
-
12JG5-K8117-00-00 PLATE 1PLATE 1
-
13J38-7811G-00-00 BOLT, COWL FITTINGBOLT, COWL FITTING
-
14J38-7811H-00-00 RETAINER, COWL FITTINGRETAINER, COWL FITTING
-
1590201-065F3-00 WASHER, PLATEWASHER, PLATE
-
1695601-06100-00 NUT, UNUT, U
-
1790201-062G3-00 WASHER, PLATEWASHER, PLATE
-
1892990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1990202-06172-00 WASHER, PLATEWASHER, PLATE
-
20J55-K811B-00-00 NUT, CAPNUT, CAP
-
21JG5-K835G-00-00 HOUSING, HOLDERHOUSING, HOLDER
-
22JF2-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
2397702-60130-00 SCREW, TAPPINGSCREW, TAPPING
-
2490201-060A3-00 WASHER, PLATEWASHER, PLATE
-
2590480-12355-00 GROMMETGROMMET
-
26JG5-K8115-00-00 COWL, FRONTCOWL, FRONT
-
27JG5-K8231-00-00 MAT, MAIN FLOOR 1MAT, MAIN FLOOR 1
-
28JG5-K8232-00-00 MAT, MAIN FLOOR 2MAT, MAIN FLOOR 2
-
2990267-63047-00 RIVET, BLINDRIVET, BLIND
-
30J38-24161-00-00 EMBLEM 1EMBLEM 1
-
3190152-04015-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3292906-04200-00 WASHER, PLAINWASHER, PLAIN
-
3395606-04100-00 NUT, UNUT, U
-
34J38-7812E-01-00 SUPPORT, UPPER COWL (L.H.)SUPPORT, UPPER COWL (L.H.)
-
35J38-7812F-01-00 SUPPORT, UPPER COWL (R.H.)SUPPORT, UPPER COWL (R.H.)
-
3695811-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3795701-08500-00 NUT, FLANGE (95702-08500-00)NUT, FLANGE (95702-08500-00)
-
38J50-77768-00-00 LABEL, WARNING 2 (OPT)LABEL, WARNING 2 (OPT)
-
39J38-78273-00-00 COVER, HOLECOVER, HOLE
-
4090269-11042-00 RIVETRIVET
-
4198580-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4397395-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
4492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4590201-067M9-00 WASHER, PLATEWASHER, PLATE
-
4698580-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4890201-06049-00 WASHER, PLATEWASHER, PLATE
