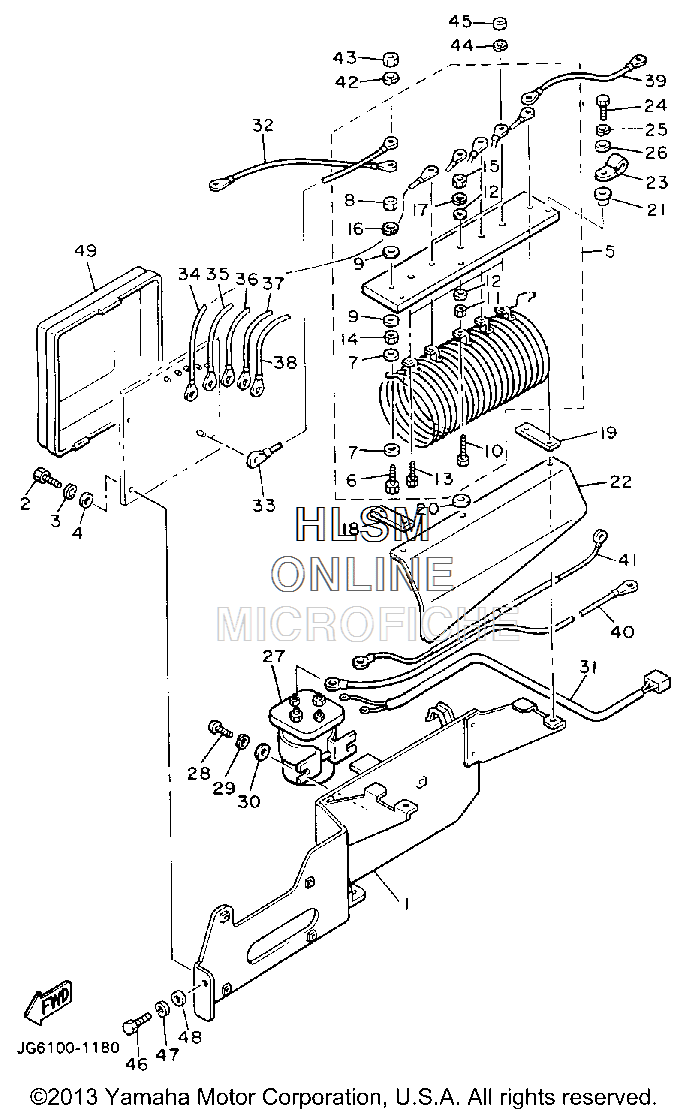

CONTROLLER 2 для Yamaha GOLF CAR ELECTRIC [G9EG] (JG6) - 1991 года выпуска
-
№АртикулНазвание
-
1JG6-86141-00-00 PLATE, CONTROLLERPLATE, CONTROLLER
-
297011-06025-00 BOLTBOLT
-
392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
492990-06600-00 WASHER, PLATEWASHER, PLATE
-
5J51-85370-00-00 RESISTORRESISTOR
-
690101-08470-00 ...BOLT...BOLT
-
790201-083F1-00 ...WASHER, PLATE...WASHER, PLATE
-
895303-08700-00 ...NUT...NUT
-
992990-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
1095320-08700-00 ...NUT...NUT
-
1190101-06469-00 ...BOLT...BOLT
-
1295380-06700-00 ...NUT...NUT
-
1392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1495320-06600-00 ...NUT...NUT
-
1597011-06025-00 ...BOLT...BOLT
-
1692990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
18J46-8257L-00-00 PLATE, INSULATORPLATE, INSULATOR
-
19J46-8250X-00-00 PLATE, INSULATORPLATE, INSULATOR
-
20J46-8253F-00-00 INSULATOR 2INSULATOR 2
-
21J46-8253E-00-00 INSULATOR 1INSULATOR 1
-
22J14-85379-00-00 COVER, RESISTORCOVER, RESISTOR
-
2390465-08028-00 CLAMPCLAMP
-
2497011-06025-00 BOLTBOLT
-
2592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2692990-06600-00 WASHER, PLATEWASHER, PLATE
-
27JF3-H1950-00-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
2897011-06016-00 BOLTBOLT
-
2992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3092990-06600-00 WASHER, PLATEWASHER, PLATE
-
31JF2-82105-00-00 WIRE HARNESSWIRE HARNESS
-
32J41-86176-00-00 WIRE, LEADWIRE, LEAD
-
33J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
34J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
35J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
36J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
37J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
38J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
39J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
40JG6-H2117-00-00 WIRE, LEADWIRE, LEAD
-
41JG6-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
4292990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4395303-08700-00 NUTNUT
-
4492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4595380-06700-00 NUTNUT
-
4697011-08016-00 BOLTBOLT
-
4792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4892990-08600-00 WASHER, PLATEWASHER, PLATE
-
49J56-H6163-00-00 COVER, CONTROLLERCOVER, CONTROLLER
