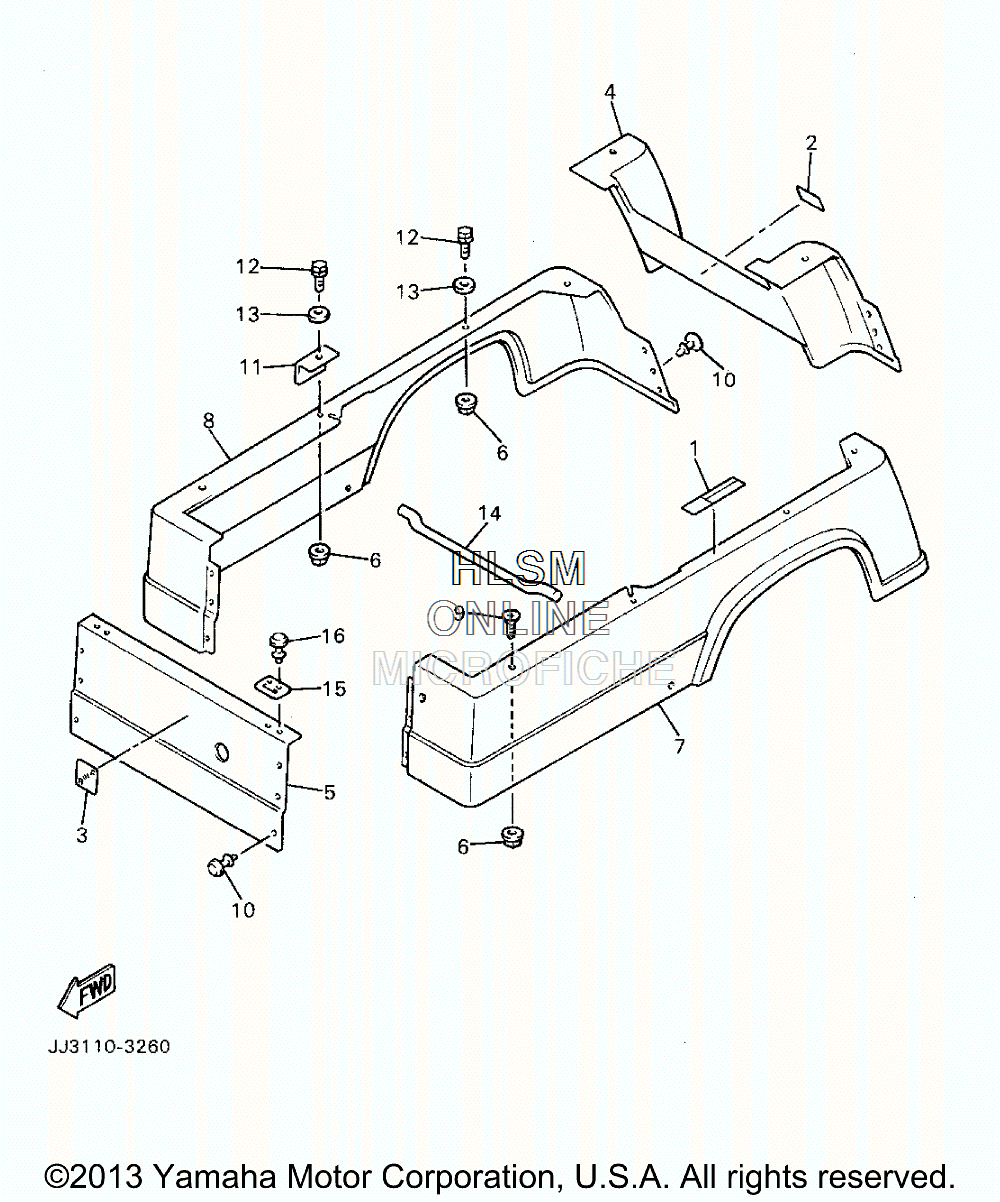

BODY 2 для Yamaha GOLF CAR GAS [G11AJ] (JJ3) - 1993 года выпуска
-
№АртикулНазвание
-
1JJ3-K7767-00-00 LABEL, WARNING 7LABEL, WARNING 7
-
2JJ3-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
3JN3-K7741-00-00 INDICATOR, 1INDICATOR, 1
-
4JJ3-K8142-01-00 PANEL, REAR BODY (RED)PANEL, REAR BODY (RED)
-
5JJ3-K8141-01-00 PANEL, INT. BODY (RED)PANEL, INT. BODY (RED)
-
690183-06810-00 NUT, SPRINGNUT, SPRING
-
7JJ3-K8111-01-00 PANEL, BODY SHELL (RED)PANEL, BODY SHELL (RED)
-
8JJ3-K8112-01-00 PANEL, BODY SHELL 2 (RED)PANEL, BODY SHELL 2 (RED)
-
990151-06040-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1090267-62833-00 RIVET, BLINDRIVET, BLIND
-
11JJ3-K811V-00-00 PROTECTOR 1PROTECTOR 1
-
1290119-06915-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390201-065F3-00 WASHER, PLATEWASHER, PLATE
-
14JJ3-K8226-00-00 ROD, SEAT STOPPERROD, SEAT STOPPER
-
15JJ3-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
1690267-64834-00 RIVET, BLINDRIVET, BLIND
