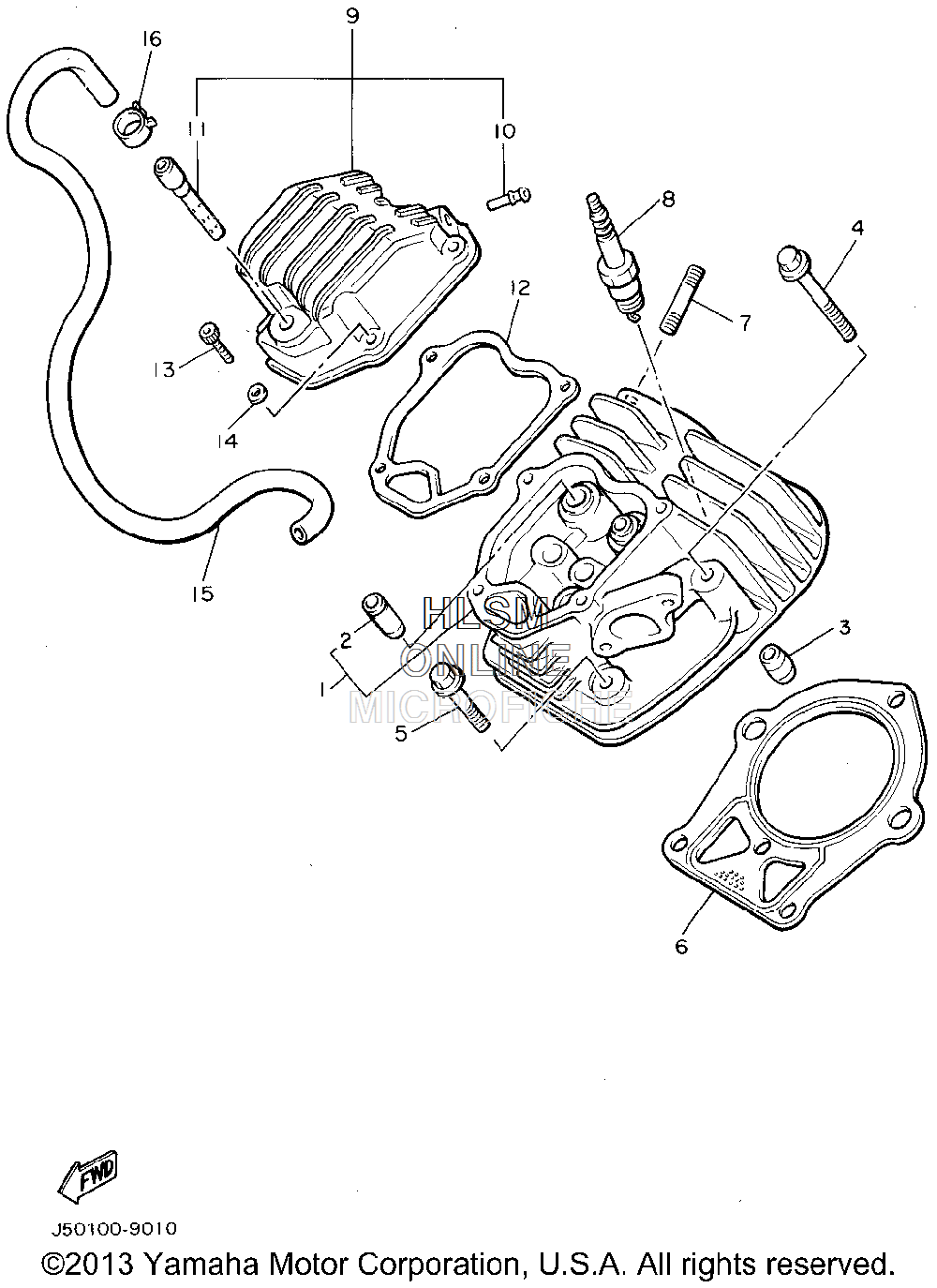

CYLINDER для Yamaha GOLF CAR GAS [G11AJ] (JJ3) - 1993 года выпуска
-
№АртикулНазвание
-
1J38-11102-00-00 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
2J38-11133-09-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
399510-12016-00 PIN, DOWELPIN, DOWEL
-
495811-08070-00 BOLT, FLANGEBOLT, FLANGE
-
595811-08045-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
6J38-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
795612-08618-00 BOLT, STUDBOLT, STUD
-
8NGK-BR4ES-00-00 PLUG, SPARK (NGK BR4ES)PLUG, SPARK (NGK BR4ES)
-
9J38-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
10J38-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
11J38-24461-00-00 ...PIPE, JOINT...PIPE, JOINT
-
12J38-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1391316-06025-00 BOLTBOLT
-
1492990-06600-00 WASHER, PLATEWASHER, PLATE
-
1590445-130F8-00 HOSEHOSE
-
1690467-12052-00 CLIPCLIP
