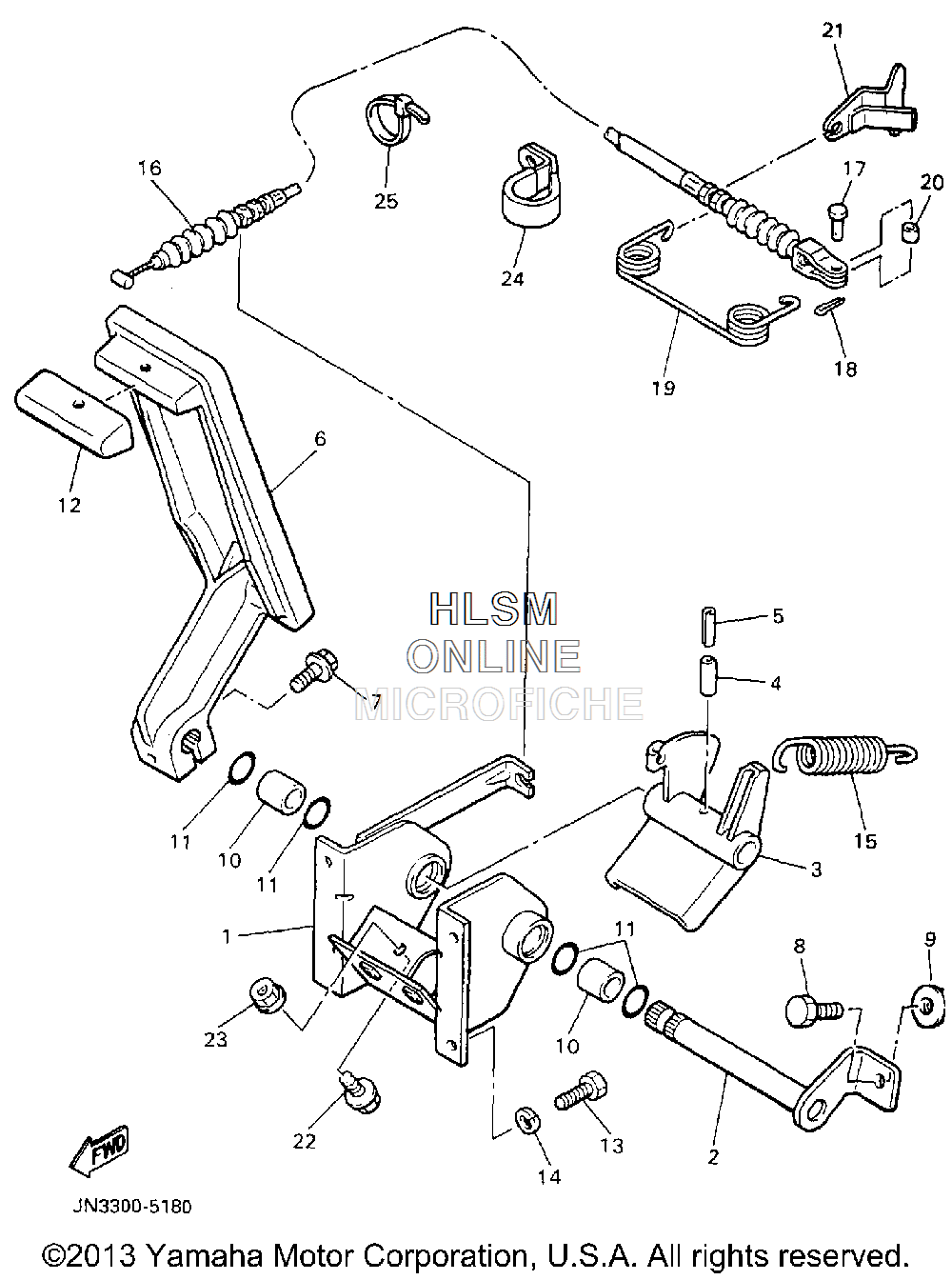

ACCELERATOR для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска
-
№АртикулНазвание
-
1JN3-27874-00-00 BRACKET, ACCELERATOR PEDALBRACKET, ACCELERATOR PEDAL
-
2J17-27853-01-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
3J38-27872-00-00 ARM, ACCELERATOR PEDALARM, ACCELERATOR PEDAL
-
491609-60028-00 PIN, SPRINGPIN, SPRING
-
591609-35028-00 PIN, SPRINGPIN, SPRING
-
6JF3-27871-00-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
795817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
890106-08040-00 BOLTBOLT
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
1090384-14080-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
1193210-14104-00 O-RINGO-RING
-
12JN3-F7854-00-00 COVER, PEDALCOVER, PEDAL
-
1397007-06016-00 BOLTBOLT
-
1492907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1590506-26282-00 SPRING, TENSIONSPRING, TENSION
-
16JN3-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1791702-05012-00 PINPIN
-
1890468-10050-00 CLIPCLIP
-
1990508-16460-00 SPRING, TORSIONSPRING, TORSION
-
2090560-05001-00 SPACERSPACER
-
21J38-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
2295817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2395707-06500-00 NUT, FLANGENUT, FLANGE
-
2490465-08334-00 CLAMPCLAMP
-
2590601-200U1-00 BANDBAND
