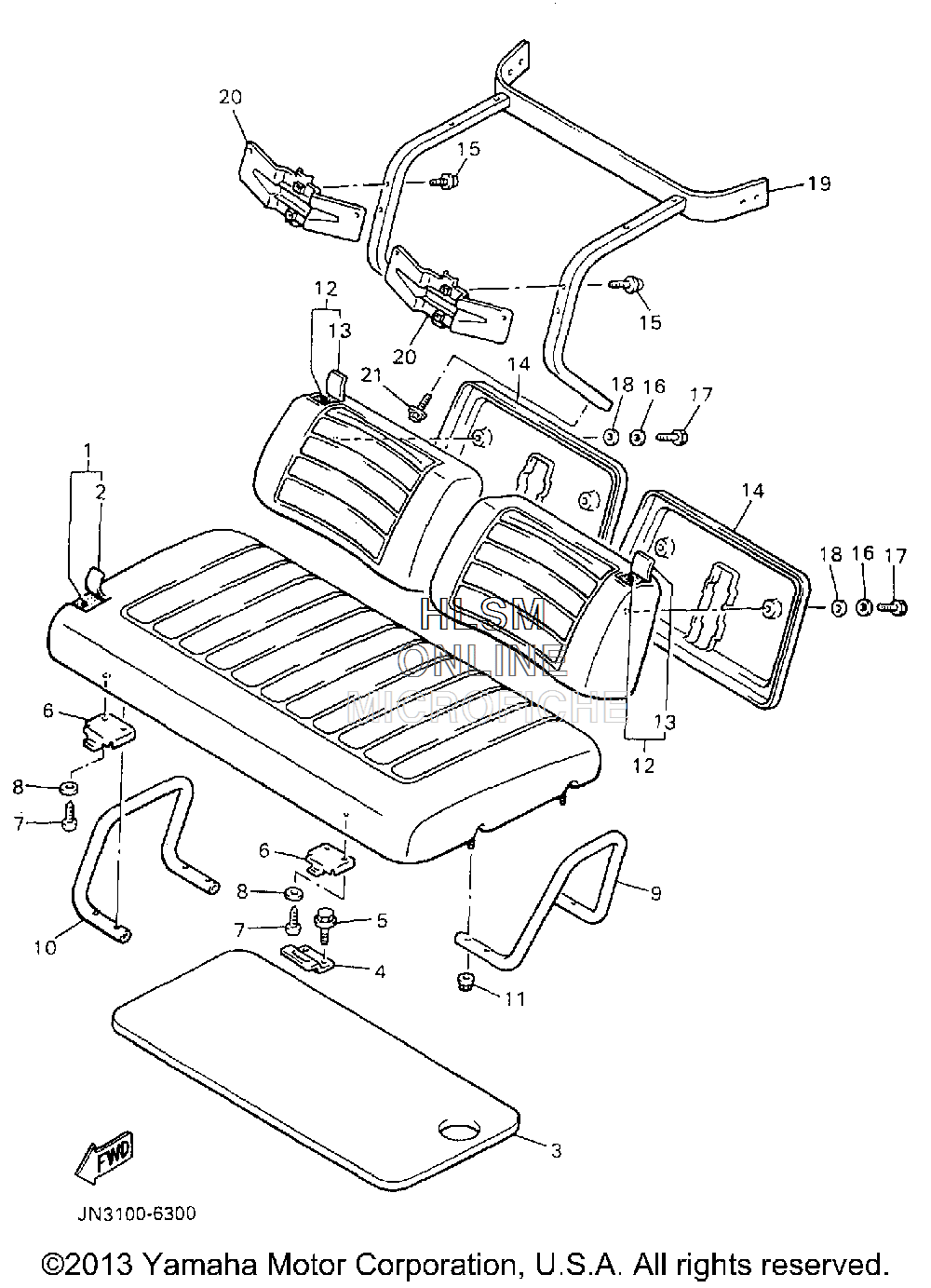

SEAT для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска
-
№АртикулНазвание
-
1JN3-K8401-00-00 SEAT SUB-ASSEMBLY, CUSHIONSEAT SUB-ASSEMBLY, CUSHION
-
2JN3-K8404-09-00 ...COVER, SEAT...COVER, SEAT
-
3JN3-K825A-00-00 PAD, SILENCER 0PAD, SILENCER 0
-
4JF2-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
590105-06903-00 BOLT, FLANGEBOLT, FLANGE
-
6JN3-K8426-00-00 HINGE, SEAT MALEHINGE, SEAT MALE
-
797780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
890204-05804-00 WASHER, SPRINGWASHER, SPRING
-
9JN3-K8361-00-00 ARM RESTARM REST
-
10JN3-K8362-00-00 ARM REST 2ARM REST 2
-
1195617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
12JN3-K8402-00-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
13JN3-K841G-09-00 ...COVER, SEAT BACK 2...COVER, SEAT BACK 2
-
14JN3-K8413-00-00 COVER, SEAT BACKCOVER, SEAT BACK
-
1590119-08820-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690201-068G0-00 WASHER, PLATEWASHER, PLATE
-
1795880-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-068G6-00 WASHER, PLATEWASHER, PLATE
-
19JN3-K8423-00-00 SUPPORT, SEAT BACKSUPPORT, SEAT BACK
-
20JN3-K842H-00-00 RETAINER, SEATRETAINER, SEAT
-
2195817-08045-00 BOLT, FLANGEBOLT, FLANGE
