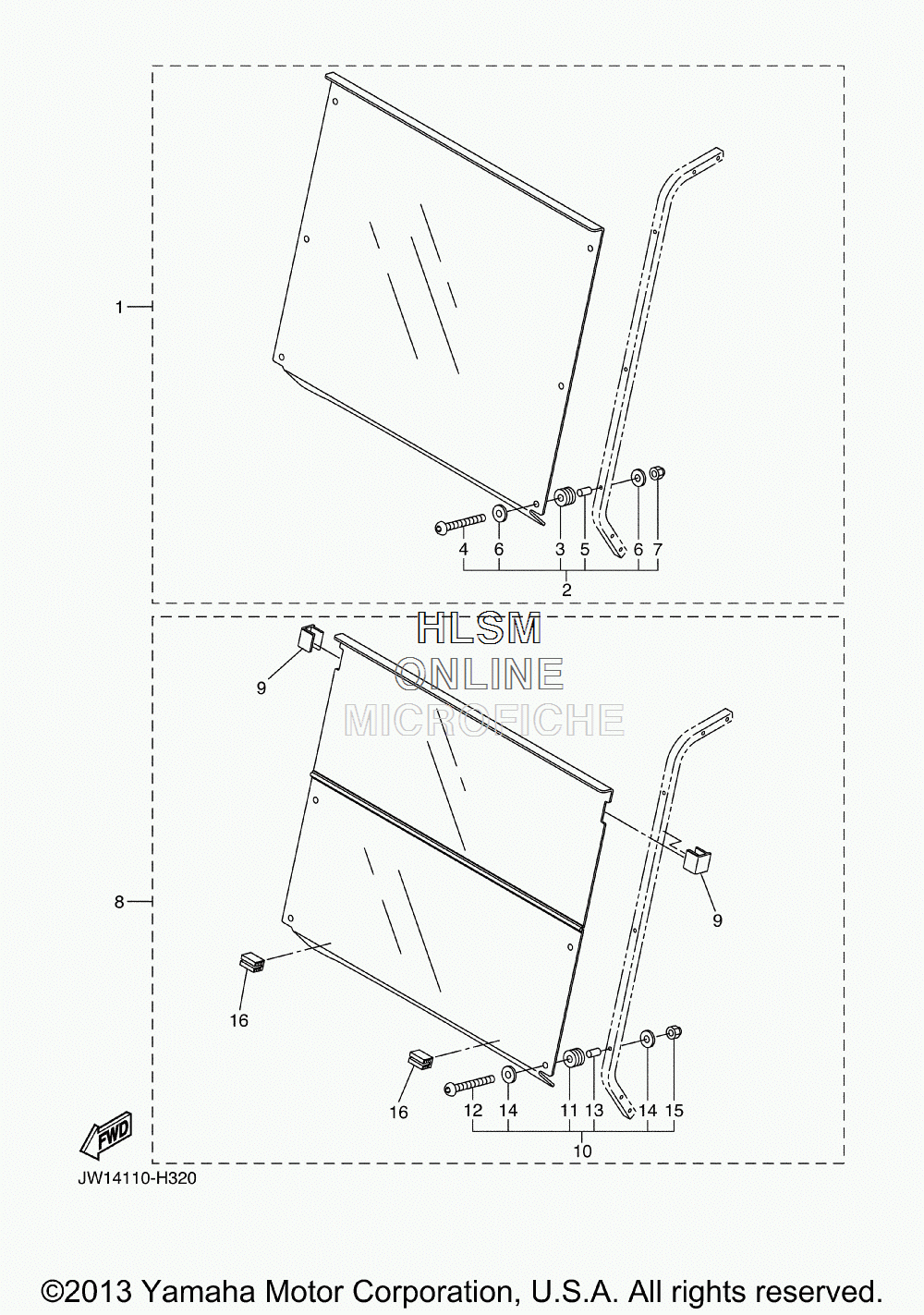

ALTERNATE FOR WINDSHIELD для Yamaha GOLF CAR GAS [DRIVE YDRA2] (JW14) - 2009 года выпуска
-
№АртикулНазвание
-
1JW1-K7200-00-00 WINDSHIELD ASSY, SOLID (CLEAR) (OPT) (OPT)WINDSHIELD ASSY, SOLID (CLEAR) (OPT) (OPT)
-
1JW1-K7200-10-00 WINDSHIELD ASSY, SOLID(SMOKE) (OPT) (OPT)WINDSHIELD ASSY, SOLID(SMOKE) (OPT) (OPT)
-
2GCA-JW121-00-00 ...HARDWARE KIT...HARDWARE KIT
-
3JW1-K7237-01-00 ......GROMMET......GROMMET
-
4JW1-K7212-00-00 ......BOLT (L: 45MM)......BOLT (L: 45MM)
-
5JW1-K7115-00-00 ......COLLAR......COLLAR
-
690201-068G7-00 ......WASHER, PLATE......WASHER, PLATE
-
7JW1-K7217-00-00 ......NUT, WIND SHIELD......NUT, WIND SHIELD
-
8JW1-K7200-30-00 WINDSHIELD ASSY, HINGED(SMOKE) (OPT) (OPT)WINDSHIELD ASSY, HINGED(SMOKE) (OPT) (OPT)
-
8JW1-K7200-20-00 WINDSHIELD ASSY, HINGED(CLEAR) (OPT) (OPT)WINDSHIELD ASSY, HINGED(CLEAR) (OPT) (OPT)
-
9JW1-K7173-00-00 ......LEVER, LATCH 1......LEVER, LATCH 1
-
10GCA-JW122-00-00 ...HARDWARE KIT...HARDWARE KIT
-
11JW1-K7237-01-00 ......GROMMET......GROMMET
-
12JW1-K7212-00-00 ......BOLT (L: 45MM)......BOLT (L: 45MM)
-
13JW1-K7115-00-00 ......COLLAR......COLLAR
-
1490201-068G7-00 ......WASHER, PLATE......WASHER, PLATE
-
15JW1-K7217-00-00 ......NUT, WIND SHIELD......NUT, WIND SHIELD
-
16GCA-JW124-00-00 ......KIT, BOTTOM RETAINER (INCLUDES GLUE)......KIT, BOTTOM RETAINER (INCLUDES GLUE)
