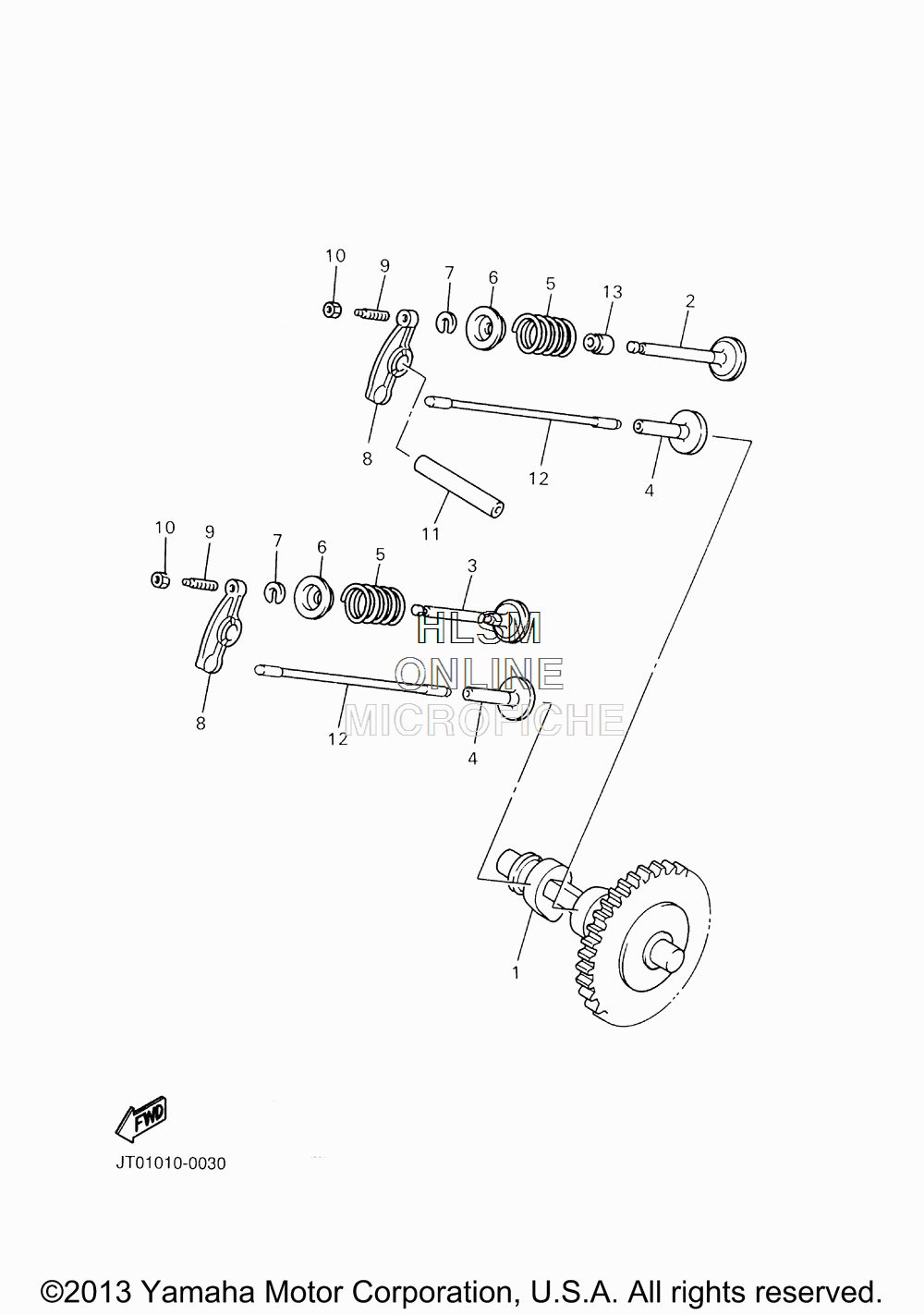

CAMSHAFT W/VALVE для Yamaha GOLF CAR GAS [DRIVE YDRA2] (JW14) - 2009 года выпуска
-
№АртикулНазвание
-
1JR7-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
2JN6-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
37RH-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
4JN6-12153-00-00 LIFTER, VALVELIFTER, VALVE
-
590501-264A9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6J38-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
7J38-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
8JN6-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
922F-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05302-00 NUTNUT
-
11J38-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
12JR7-12154-01-00 ROD, VALVE PUSHROD, VALVE PUSH
-
134G0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
