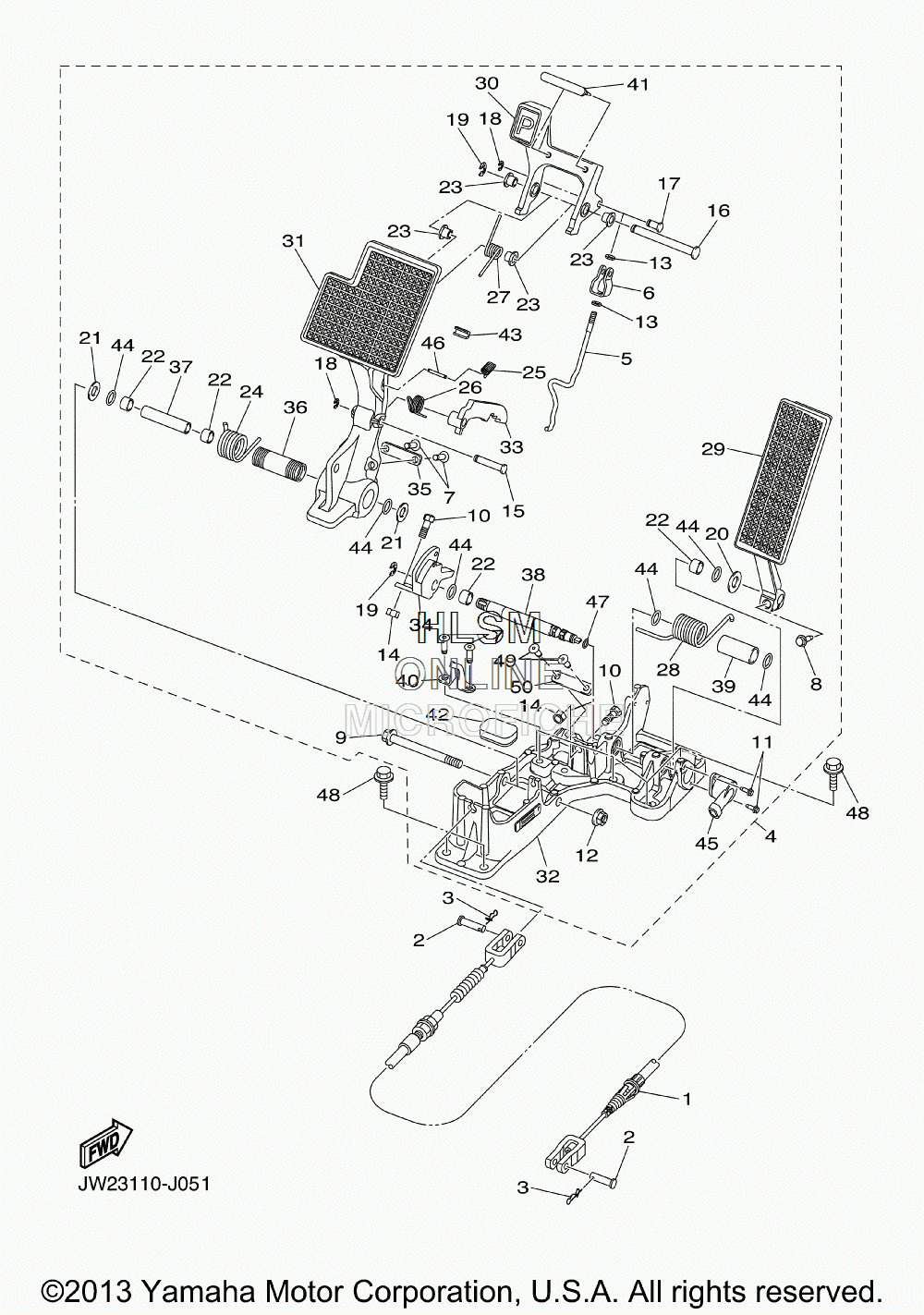

PEDAL ASSEMBLY для Yamaha GOLF CAR [YDRE3] (JW23) - 2010 года выпуска
-
№АртикулНазвание
-
1JW2-F6341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
291701-10028-00 PINPIN
-
390468-20196-00 CLIPCLIP
-
4JW2-F7850-10-00 PEDAL ASSY (LEFT HAND)PEDAL ASSY (LEFT HAND)
-
5JW1-F720G-00-00 ...PUSH ROD ASSY...PUSH ROD ASSY
-
6JW1-F7232-00-00 ...END, ROD 2...END, ROD 2
-
7JW1-F1128-00-00 ...RIVET...RIVET
-
8JW1-F7117-00-00 ...BOLT, MAIN STAND...BOLT, MAIN STAND
-
9JW1-F7217-00-00 ...BOLT...BOLT
-
10JW1-F7227-00-00 ...BOLT, AJUSTING...BOLT, AJUSTING
-
11JW2-F7317-01-00 ...BOLT...BOLT
-
12JW1-F7218-00-00 ...NUT...NUT
-
13JW1-F7855-00-00 ...NUT, RING...NUT, RING
-
14JW1-F7238-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
15JW1-F5734-00-00 ...PIN 1...PIN 1
-
16JW1-F5744-00-00 ...PIN 2...PIN 2
-
17JW1-F5754-00-00 ...PIN 3...PIN 3
-
18JW1-F5866-01-00 ...CIRCLIP...CIRCLIP
-
19JW1-F6466-01-00 ...RING, SNAP...RING, SNAP
-
20JW1-F723F-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
21JW1-F723G-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
22JW1-F582M-00-00 ...BEARING...BEARING
-
23JW1-F339Y-00-00 ...BEARING...BEARING
-
24JW1-F7825-00-00 ...SPRING, RETURN...SPRING, RETURN
-
25JW1-F5659-00-00 ...HOOK, SPRING 2...HOOK, SPRING 2
-
26JW1-F5658-00-00 ...HOOK, SPRING 1...HOOK, SPRING 1
-
27JW1-F7216-00-00 ...SPRING, RETURN...SPRING, RETURN
-
28JW1-F5735-00-00 ...SPRING, RETURN 1...SPRING, RETURN 1
-
29JW1-F7871-00-00 ...PEDAL, ACCELERATOR...PEDAL, ACCELERATOR
-
30JW1-F7252-00-00 ...LEVER, BRAKE PEDAL...LEVER, BRAKE PEDAL
-
31JW1-F7211-01-00 ...PEDAL, BRAKE...PEDAL, BRAKE
-
32JW1-F785A-10-00 ...PEDAL SET...PEDAL SET
-
33JW1-F5666-00-00 ...SECTOR, PARKING BRAKE...SECTOR, PARKING BRAKE
-
34JW1-F7249-00-00 ...PEDAL, LOCK...PEDAL, LOCK
-
35JW1-F7275-00-00 ...PLATE...PLATE
-
36JW1-F7243-00-00 ...BOSS, BRAKE PEDAL...BOSS, BRAKE PEDAL
-
37JW1-F7213-00-00 ...COLLAR...COLLAR
-
38JW2-F7853-10-00 ......SHAFT, PEDAL 1......SHAFT, PEDAL 1
-
39JW1-F7814-00-00 ...BUSH, PEDAL...BUSH, PEDAL
-
40JW1-F7254-00-00 ...HOOK...HOOK
-
41JW1-F5672-00-00 ...PAD, PARKING PEDAL...PAD, PARKING PEDAL
-
42JW1-F7257-10-00 ...PAD, BRAKE...PAD, BRAKE
-
43JW1-F5673-00-00 ...DAMPER, BRAKE...DAMPER, BRAKE
-
44JW1-F3147-01-00 ...O-RING...O-RING
-
45JW2-H5885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
46JW1-F5677-00-00 ...PIN, HOLD 1...PIN, HOLD 1
-
47JW1-F3188-00-00 ...O-RING...O-RING
-
4895812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4992012-06012-00 BOLT, BUTTON HEAD (OPT) (M6)BOLT, BUTTON HEAD (OPT) (M6)
-
50JW1-F7275-09-00 PLATE (OPT) (WITH M6)PLATE (OPT) (WITH M6)
