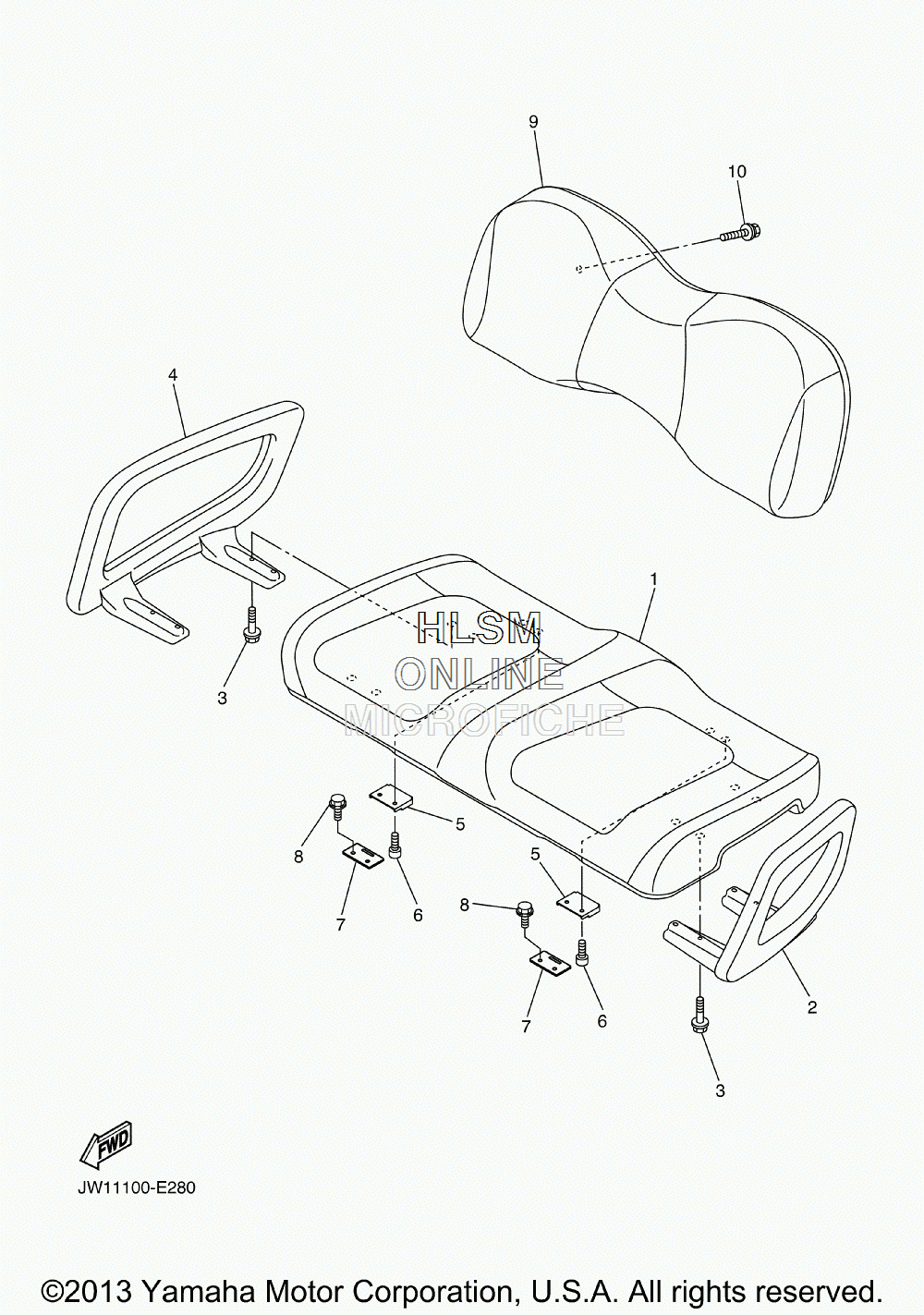

SEAT для Yamaha GOLF CAR [YDRE3] (JW23) - 2010 года выпуска
-
№АртикулНазвание
-
1JW1-K8401-00-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
2JW1-K8361-00-00 ARM REST 1ARM REST 1
-
390105-06042-00 BOLT, FLANGEBOLT, FLANGE
-
4JW1-K8362-00-00 ARM REST 2ARM REST 2
-
5JW1-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
690110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
890163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
9JW1-K8402-00-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
1090119-06808-00 BOLT, WITH WASHERBOLT, WITH WASHER
