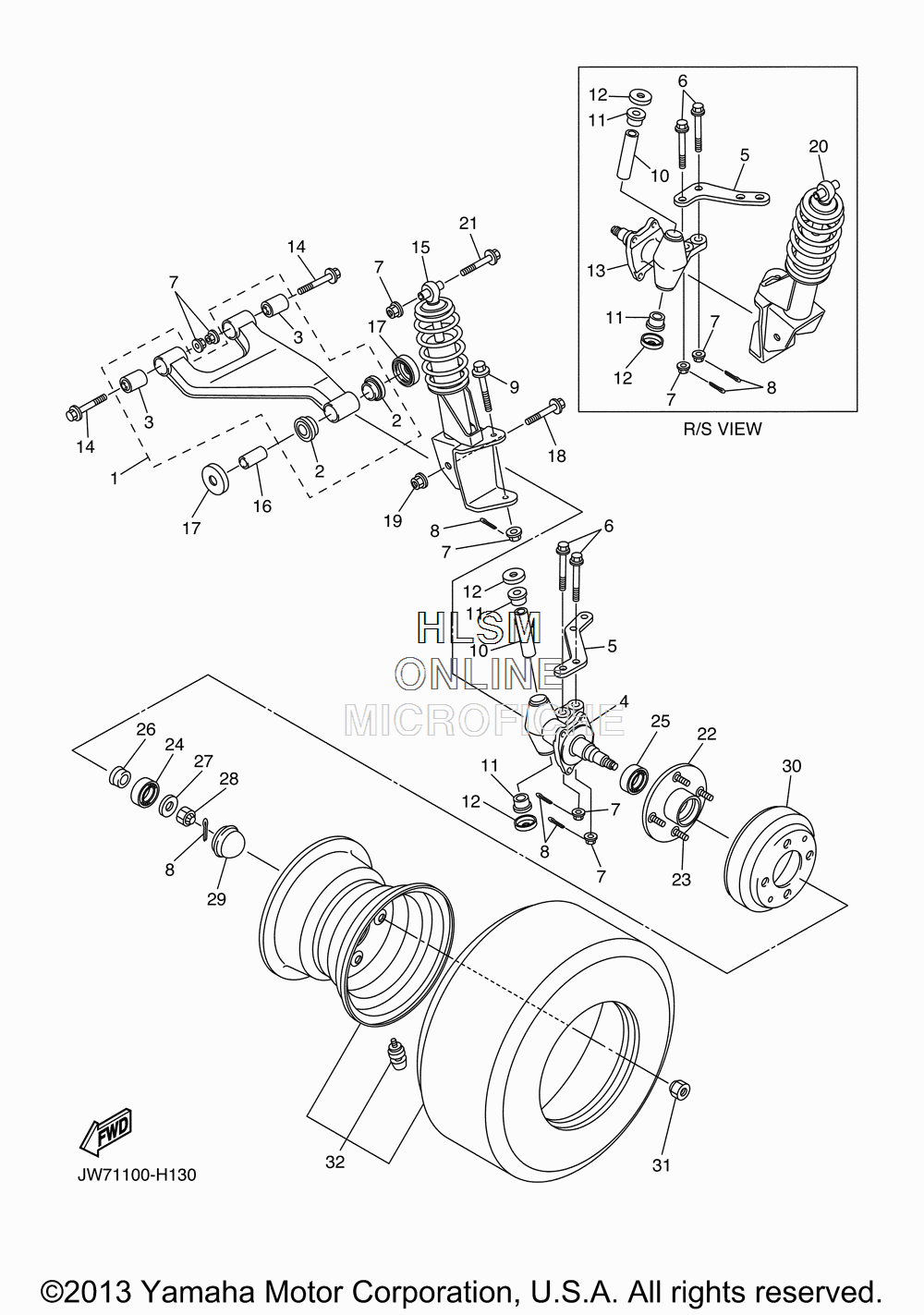

SUSPENSION - FRONT WHEEL для Yamaha ADVENTURER [YTF2X2] (JW75) - 2012 года выпуска
-
№АртикулНазвание
-
1JU0-F3570-20-00 FRONT LOWER ARM COMP.FRONT LOWER ARM COMP.
-
290381-18001-00 ...BUSH, SOLID...BUSH, SOLID
-
32HR-23526-00-00 ...BUSH...BUSH
-
4JW7-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
5JW1-F3512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
690105-10728-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
990105-10064-00 BOLT, FLANGEBOLT, FLANGE
-
102NL-23448-00-00 SPACERSPACER
-
1190381-17067-00 BUSH, SOLIDBUSH, SOLID
-
122NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
13JW7-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
1490105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
15JW7-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690387-12016-00 COLLARCOLLAR
-
17401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
1895812-12080-00 BOLT, FLANGEBOLT, FLANGE
-
1995612-12100-00 NUT, UNUT, U
-
20JW7-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
2190105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
22JR6-F5110-01-00 HUB ASSY, FRONTHUB ASSY, FRONT
-
2390114-12805-00 BOLT, SERRATIONBOLT, SERRATION
-
2493306-204X0-00 BEARINGBEARING
-
2593306-005Y3-00 BEARINGBEARING
-
2690387-241M7-00 COLLARCOLLAR
-
2790208-14801-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2895602-14100-00 NUT, UNUT, U
-
29JN6-F5118-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
30JU0-G6521-00-00 DRUMDRUM
-
3190179-12262-00 NUTNUT
-
32JW1-F5100-01-00 WHEEL ASSY (18X8.50-8-4PLY)WHEEL ASSY (18X8.50-8-4PLY)
