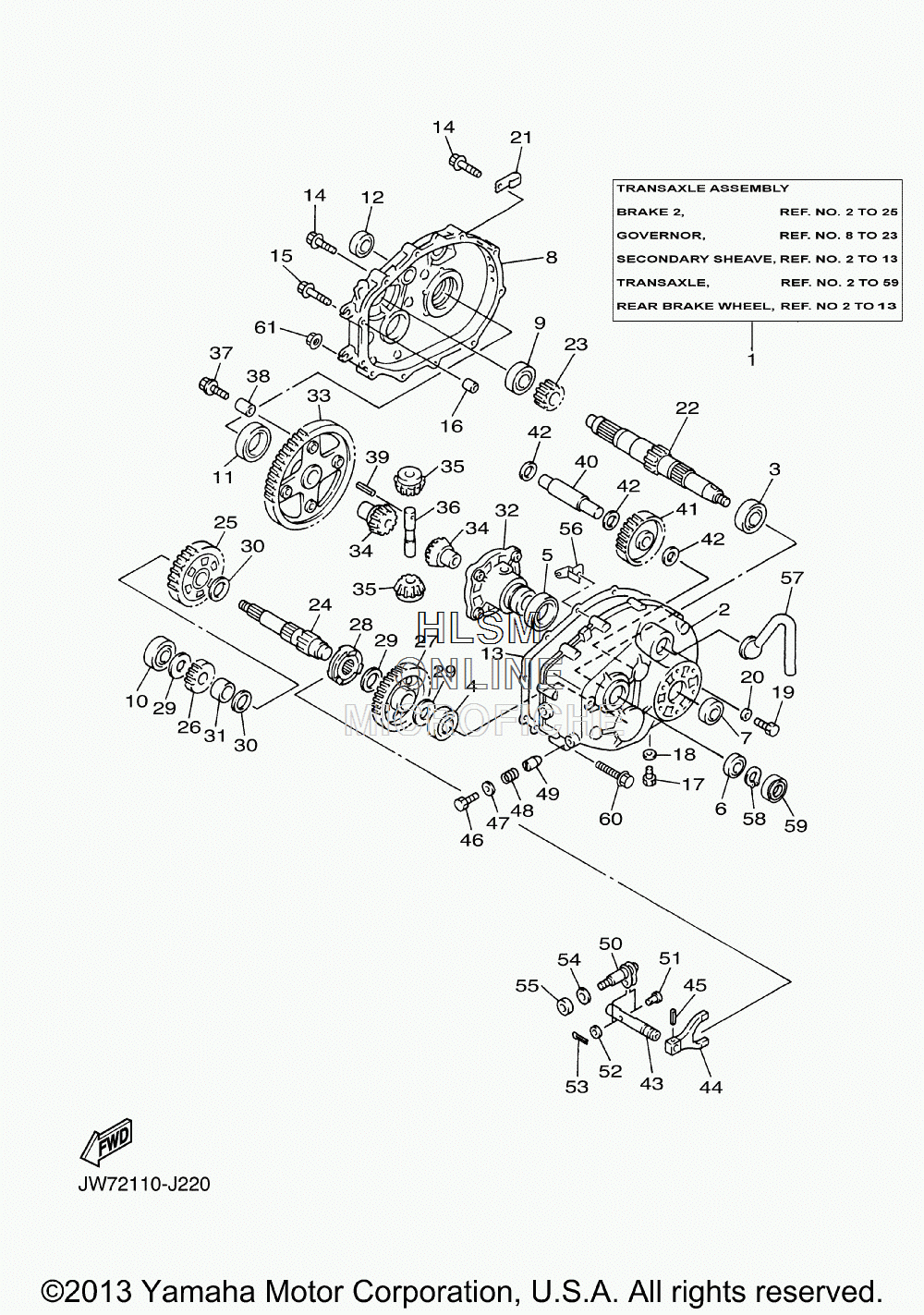

TRANSAXLE для Yamaha ADVENTURER [YTF2X2] (JW75) - 2012 года выпуска
-
№АртикулНазвание
-
1JW7-46300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW7-46311-00-00 CASE, TRANSMISSION 1CASE, TRANSMISSION 1
-
393306-20501-00 BEARINGBEARING
-
493306-20401-00 BEARINGBEARING
-
593306-00803-00 BEARINGBEARING
-
693102-25017-00 OIL SEALOIL SEAL
-
793102-25360-00 OIL SEALOIL SEAL
-
8JW7-46312-01-00 CASE, TRANSMISSION 2CASE, TRANSMISSION 2
-
993306-30311-00 BEARINGBEARING
-
1093306-20401-00 BEARINGBEARING
-
1193306-00803-00 BEARINGBEARING
-
1293102-25360-00 OIL SEALOIL SEAL
-
13J38-46319-01-00 GASKETGASKET
-
1495827-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1595827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1699530-12016-00 PIN, DOWELPIN, DOWEL
-
1790340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1890430-14043-00 GASKETGASKET
-
1990101-08344-00 BOLTBOLT
-
2090430-08119-00 GASKETGASKET
-
2190465-06011-00 CLAMPCLAMP
-
22JN7-46321-00-00 SHAFT, INPUTSHAFT, INPUT
-
23J38-46331-01-00 GEAR, INPUT 1GEAR, INPUT 1
-
24J38-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
25J38-46361-01-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
26J38-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
27J38-46363-00-00 GEAR, REVERSEGEAR, REVERSE
-
28J38-4636A-00-00 DOG, CLUTCHDOG, CLUTCH
-
2990201-20611-00 WASHER, PLATEWASHER, PLATE
-
3090201-257J2-00 WASHER, PLATEWASHER, PLATE
-
3190387-252M8-00 COLLARCOLLAR
-
32JJ3-46411-00-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
33JJ3-46421-00-00 GEAR, RINGGEAR, RING
-
34JJ3-46414-C0-00 GEAR, DIFFERENTIAL SIDEGEAR, DIFFERENTIAL SIDE
-
35J38-46415-C0-00 PINION, DIFFERENTIALPINION, DIFFERENTIAL
-
36J38-46417-02-00 PIN, DIFFERENTIALPIN, DIFFERENTIAL
-
3790105-08056-00 BOLT, FLANGEBOLT, FLANGE
-
3899530-12016-00 PIN, DOWELPIN, DOWEL
-
3991609-40040-00 PIN, SPRINGPIN, SPRING
-
40J38-46348-00-00 SHAFT 2SHAFT 2
-
41J38-46356-00-00 GEAR, IDLERGEAR, IDLER
-
4290201-17713-00 WASHER, PLATEWASHER, PLATE
-
43J38-4633A-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
44J38-46338-00-00 FORK, SHIFTFORK, SHIFT
-
4591609-40020-00 PIN, SPRINGPIN, SPRING
-
4690101-08344-00 BOLTBOLT
-
4790430-08119-00 GASKETGASKET
-
4890501-10060-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4990249-07190-00 PINPIN
-
50J38-46384-00-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
5191702-06022-00 PIN, CLEVISPIN, CLEVIS
-
5292907-06200-00 WASHERWASHER
-
5391402-20012-00 PIN, COTTERPIN, COTTER
-
5490201-12166-00 WASHER, PLATEWASHER, PLATE
-
5593102-12224-00 OIL SEALOIL SEAL
-
56J38-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
57JN3-47559-00-00 CAP 2CAP 2
-
5893410-25017-00 CIRCLIPCIRCLIP
-
59JT0-46374-00-00 COLLAR, SPRINGCOLLAR, SPRING
-
6095812-08075-00 BOLT, FLANGEBOLT, FLANGE
-
6195702-08500-00 NUT, FLANGENUT, FLANGE
