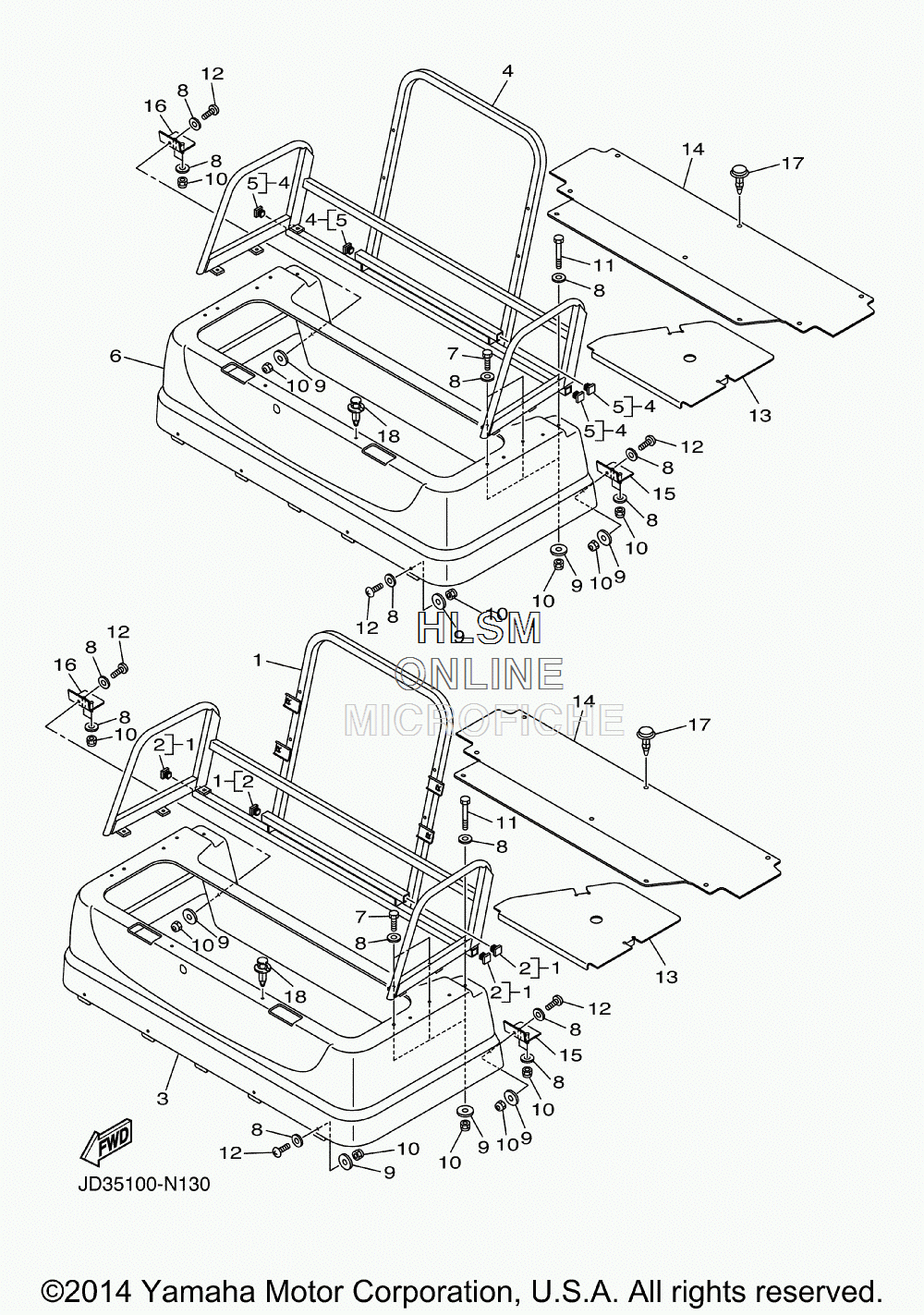

BODY 3 для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREX4PTV6] (JD35) - 2014 года выпуска
-
№АртикулНазвание
-
1JD0-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
25FU-F111A-00-00 ...CAP, MAIN PIPE...CAP, MAIN PIPE
-
3JD4-K8141-50-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-20-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-10-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-00-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-80-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-90-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
3JD4-K8141-30-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
4JD1-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
55FU-F111A-00-00 ...CAP, MAIN PIPE...CAP, MAIN PIPE
-
6JD4-K8141-10-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-20-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-30-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-50-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-80-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-90-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
6JD4-K8141-00-00 PANEL, INTERMEDIATE BODY (OPT)PANEL, INTERMEDIATE BODY (OPT)
-
7JD1-K7481-00-00 BOLTBOLT
-
8JD1-K7525-00-00 WASHER 1WASHER 1
-
9JD1-K7526-00-00 WASHER 2WASHER 2
-
10JD1-K7528-00-00 NUTNUT
-
11JD1-K7574-00-00 BOLTBOLT
-
12JD1-K7387-00-00 SCREWSCREW
-
13JD1-K811U-00-00 LID 2LID 2
-
14JD1-K8241-00-00 MAT, REAR FLOORMAT, REAR FLOOR
-
15JD1-K8135-00-00 BRACKET 1BRACKET 1
-
16JD1-K8136-00-00 BRACKET 2BRACKET 2
-
17JW1-K7449-00-00 RIVET 1RIVET 1
-
1890269-08813-00 RIVETRIVET
