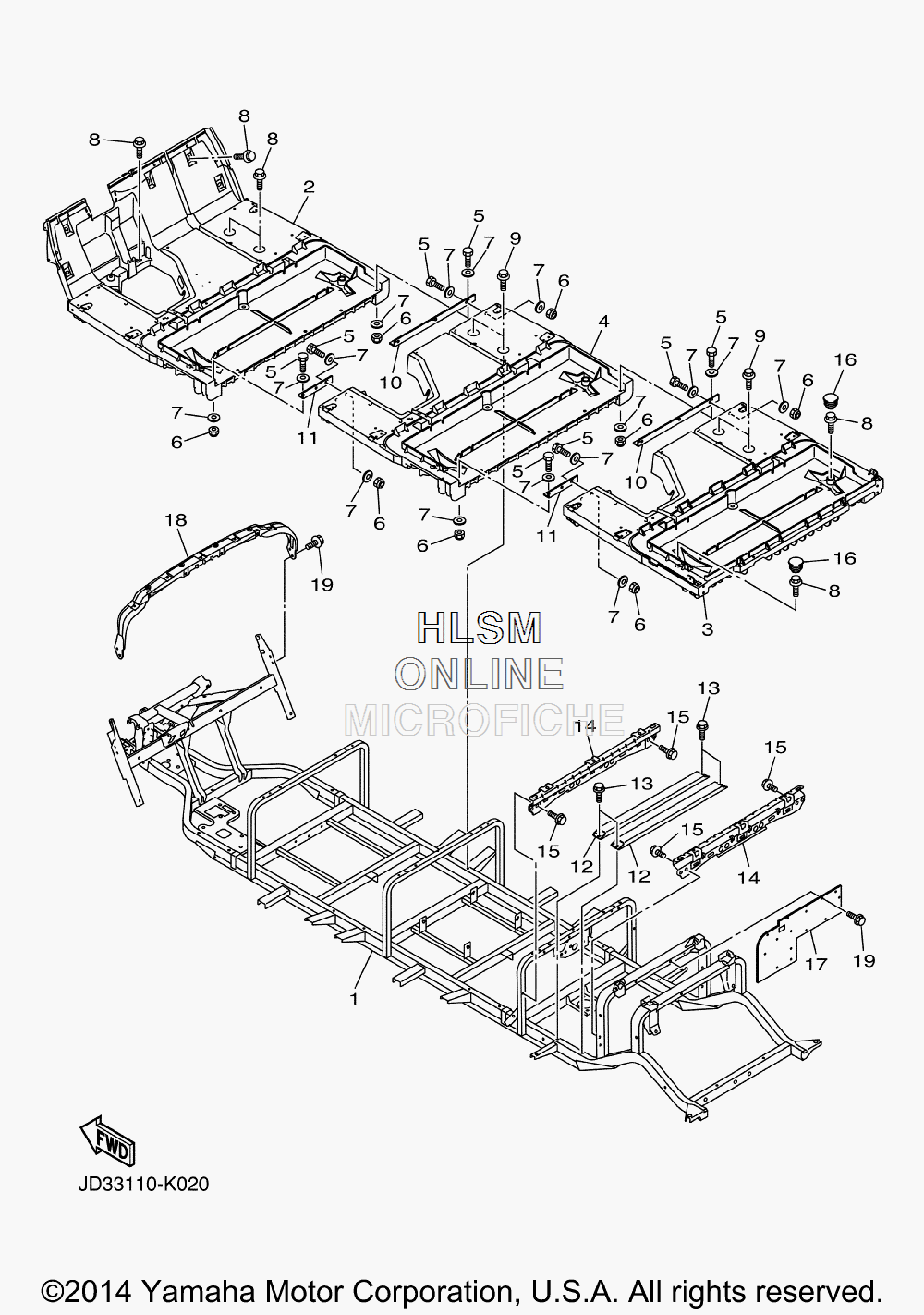

FRAME для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREX4PTV6] (JD35) - 2014 года выпуска
-
№АртикулНазвание
-
1JD3-F2501-21-00 FRAME COMP.FRAME COMP.
-
2JD4-F7411-30-00 FOOTREST 1FOOTREST 1
-
3JD4-F7411-50-00 FOOTREST 1FOOTREST 1
-
4JD4-F7411-40-00 FOOTREST 1FOOTREST 1
-
5JD1-K7481-00-00 BOLTBOLT
-
6JD1-K7528-00-00 NUTNUT
-
7JD1-K7525-00-00 WASHER 1WASHER 1
-
8JW1-F1738-00-00 BOLTBOLT
-
9JW1-F1738-00-00 BOLTBOLT
-
10JD3-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
11JD3-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
12JW9-F2198-01-00 MEMBER, CROSSMEMBER, CROSS
-
13JW1-F1738-00-00 BOLTBOLT
-
14JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
15JW1-F1738-00-00 BOLTBOLT
-
16JW9-F2417-00-00 PLUGPLUG
-
17JD3-F2527-00-00 SUPPORT, MEMBERSUPPORT, MEMBER
-
18JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1990105-06831-00 BOLT, FLANGEBOLT, FLANGE
