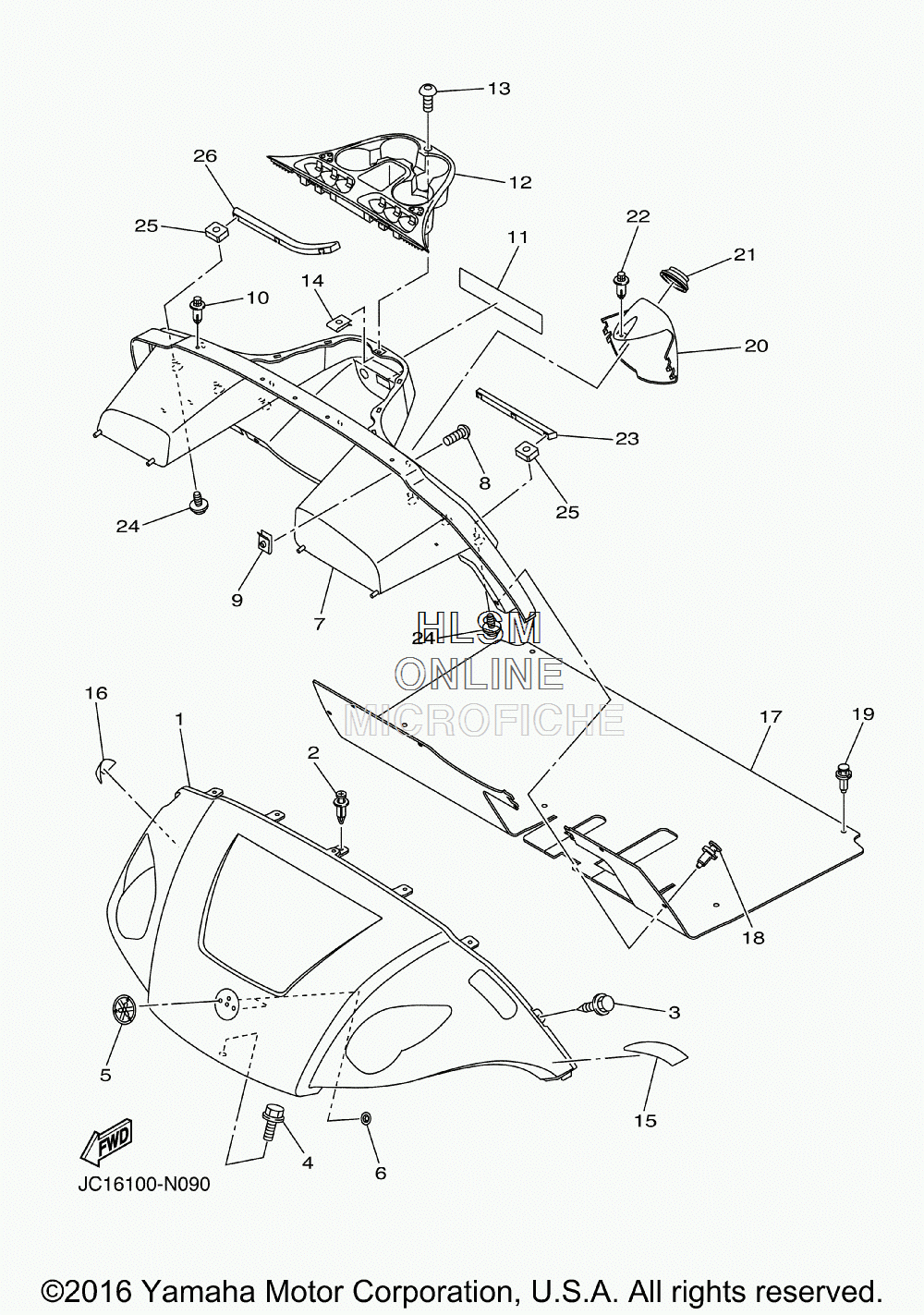

BODY для Yamaha GOLF CAR ELECTRIC [YDREX5 AC DRIVE PTV] (JC18) - 2015 года выпуска
-
№АртикулНазвание
-
1JC0-K8115-P0-00 COWL, FRONT (OPT) (FOR WS7)COWL, FRONT (OPT) (FOR WS7)
-
1JC0-K8115-R0-00 COWL, FRONT (OPT) (FOR VDGS1)COWL, FRONT (OPT) (FOR VDGS1)
-
1JC0-K8115-T0-00 COWL, FRONT (OPT) (FOR LNYM8)COWL, FRONT (OPT) (FOR LNYM8)
-
1JC0-K8115-U0-00 COWL, FRONT (OPT) (FOR LNMP)COWL, FRONT (OPT) (FOR LNMP)
-
1JC0-K8115-V0-00 COWL, FRONT (OPT) (FOR BMG)COWL, FRONT (OPT) (FOR BMG)
-
1JC0-K8115-W0-00 COWL, FRONT (OPT) (FOR DPBST)COWL, FRONT (OPT) (FOR DPBST)
-
1JC0-K8115-X0-00 COWL, FRONT (OPT) (FOR DRMV)COWL, FRONT (OPT) (FOR DRMV)
-
290269-06800-00 RIVETRIVET
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JC0-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
890111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090269-07001-00 RIVETRIVET
-
11JC1-K7768-60-00 LABEL, WARNING 8LABEL, WARNING 8
-
12JW8-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1390111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1490183-05008-00 NUT, SPRINGNUT, SPRING
-
15JC0-H333B-10-00 REFLECTOR 1REFLECTOR 1
-
16JC0-H334B-10-00 REFLECTOR, 2REFLECTOR, 2
-
17JW6-K8233-10-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1890269-09003-00 RIVETRIVET
-
1990269-09003-00 RIVETRIVET
-
20JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
21JW1-K8245-00-00 SEAL 1SEAL 1
-
2290269-06804-00 RIVETRIVET
-
23JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2490119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590173-06010-00 NUT, SQUARENUT, SQUARE
-
26JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
