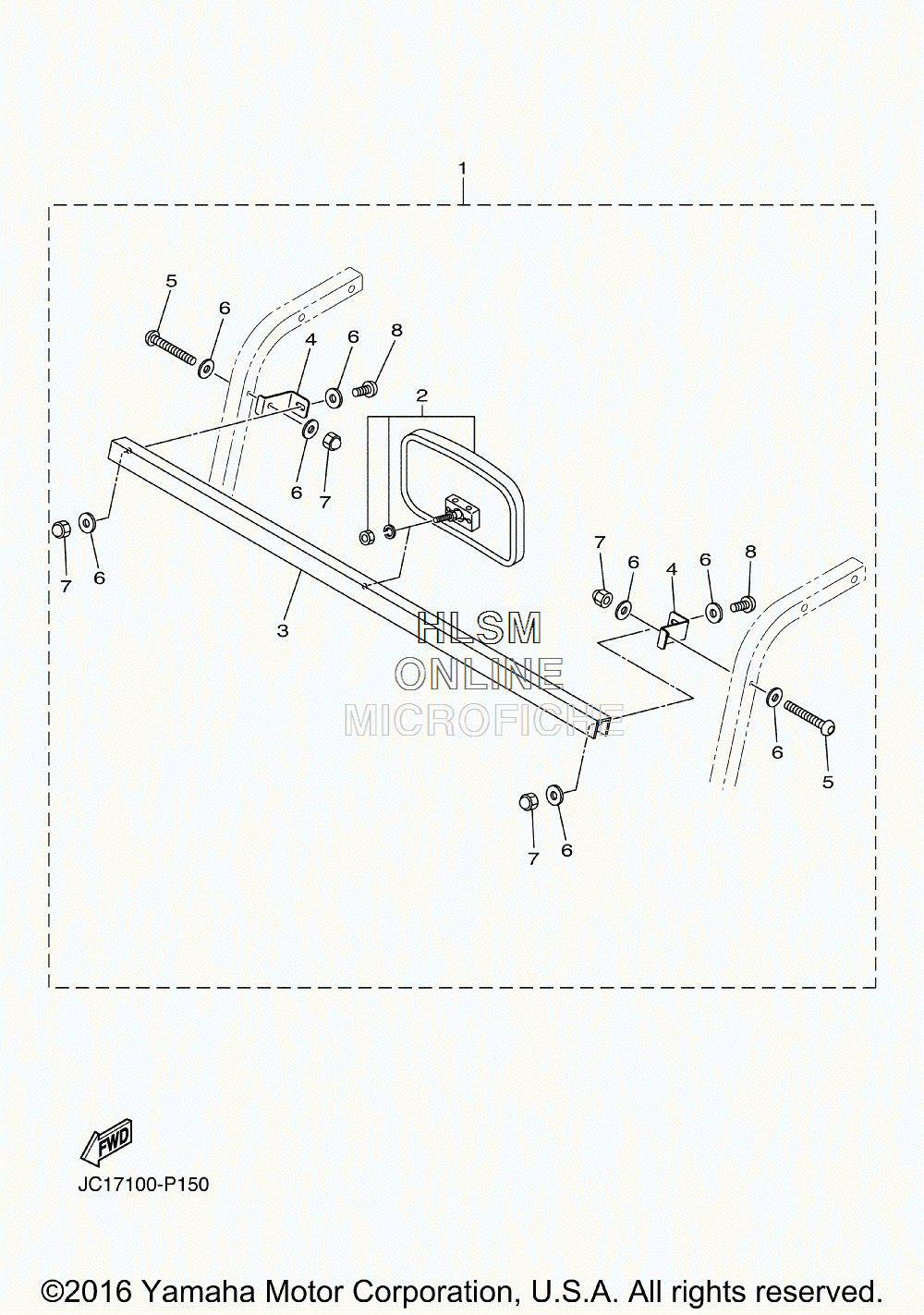

REAR VIEW MIRROR для Yamaha GOLF CAR ELECTRIC [YDREX5 AC DRIVE PTV] (JC18) - 2015 года выпуска
-
№АртикулНазвание
-
1JC0-F6280-01-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
2JC0-F6291-00-00 ...MIRROR...MIRROR
-
3JC0-F831W-10-00 ...STAY, MIRROR 1...STAY, MIRROR 1
-
4JC0-F834N-10-00 ...BRACKET, MIRROR 1...BRACKET, MIRROR 1
-
5JW1-K7387-10-00 ...SCREW...SCREW
-
690201-068G7-00 ...WASHER, PLATE...WASHER, PLATE
-
7JW1-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
-
8JC0-K7212-00-00 ...BOLT, WIND SHIELD...BOLT, WIND SHIELD
