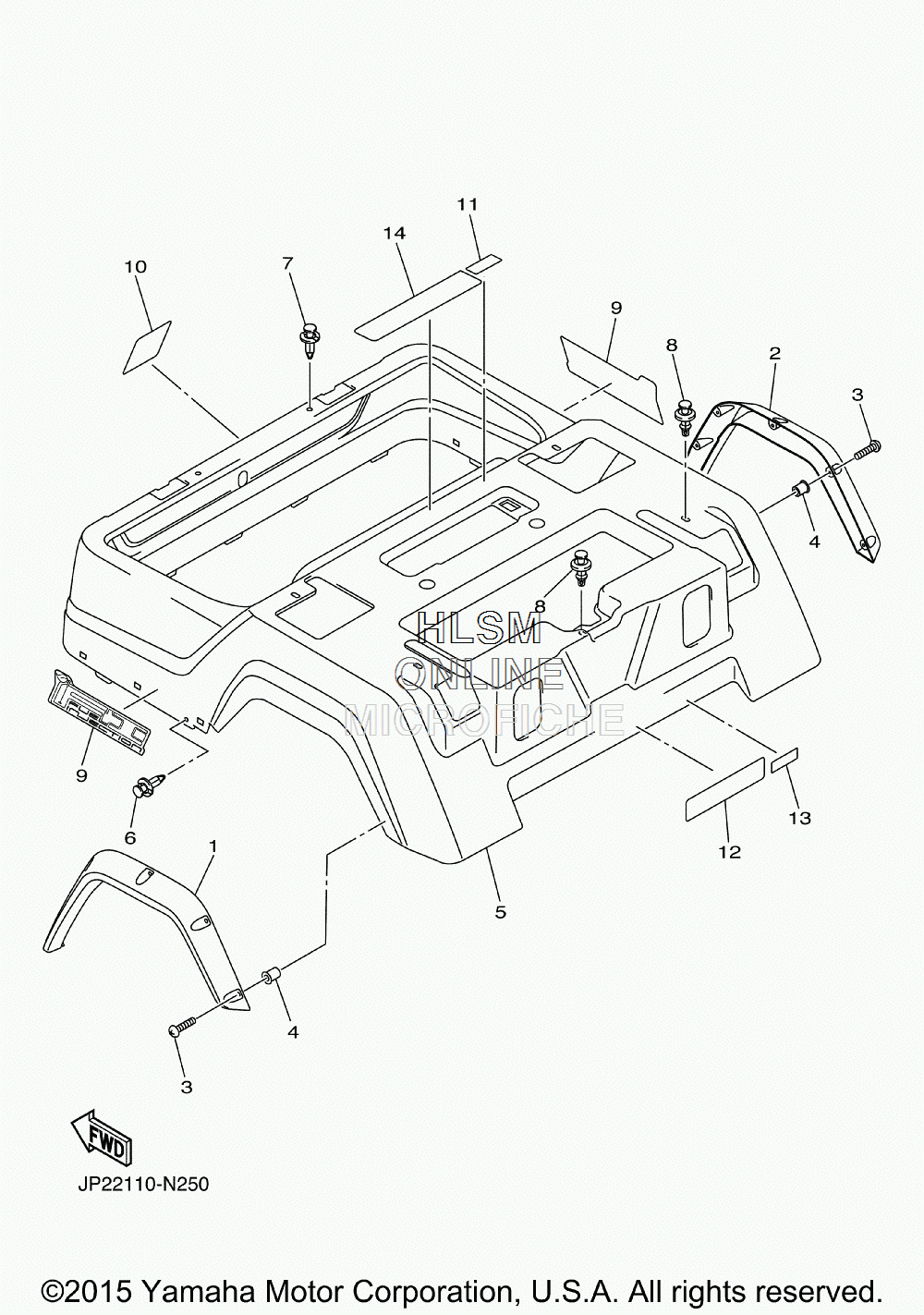

BODY 2 для Yamaha ADVENTURER SPORT [YTF1AX6] (JP24) - 2016 года выпуска
-
№АртикулНазвание
-
1JP2-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
2JP2-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
398902-05020-00 SCREW, BINDSCREW, BIND
-
490179-05523-00 NUTNUT
-
5JW6-K8142-10-00 PANEL, REAR BODYPANEL, REAR BODY
-
690269-06804-00 RIVETRIVET
-
790269-08813-00 RIVETRIVET
-
8JW6-K7449-00-00 RIVET 1RIVET 1
-
9JC2-F1781-00-00 EMBLEM 1EMBLEM 1
-
10JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
11JN6-H2377-00-00 LABELLABEL
-
12JP2-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
13JW6-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
14JW6-K8297-00-00 PLATE, CAUTION 1PLATE, CAUTION 1
