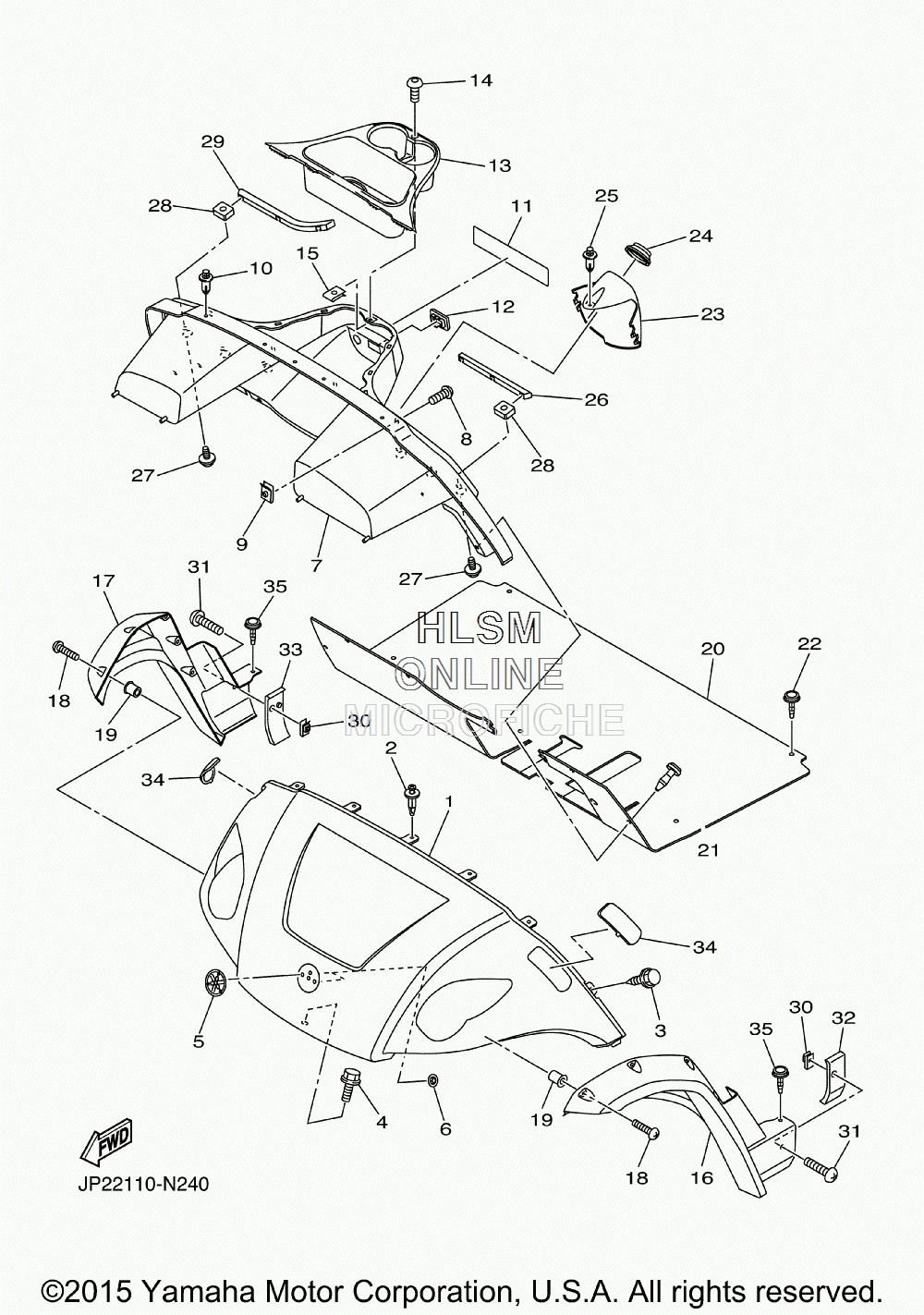

BODY для Yamaha ADVENTURER SPORT [YTF1AX6] (JP24) - 2016 года выпуска
-
№АртикулНазвание
-
1JC0-K8115-R0-00 COWL, FRONTCOWL, FRONT
-
290269-06800-00 RIVETRIVET
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JC0-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
890111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090269-07001-00 RIVETRIVET
-
11JW6-K7768-30-00 LABEL, WARNING 8LABEL, WARNING 8
-
12JW1-F312G-00-00 PLUGPLUG
-
13JW6-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1490111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1590183-05008-00 NUT, SPRINGNUT, SPRING
-
16JW7-F1551-00-00 FENDER, OVERFENDER, OVER
-
17JW7-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
1898902-05020-00 SCREW, BINDSCREW, BIND
-
1990179-05523-00 NUTNUT
-
20JW6-K8233-10-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2190269-09003-00 RIVETRIVET
-
2290269-09003-00 RIVETRIVET
-
23JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
24JW1-K8245-00-00 SEAL 1SEAL 1
-
2590269-06804-00 RIVETRIVET
-
26JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2790119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890173-06010-00 NUT, SQUARENUT, SQUARE
-
29JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
30JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
3198902-08040-00 SCREW, BINDSCREW, BIND
-
32JP2-K83A3-00-00 JOINT, 1JOINT, 1
-
33JP2-K83A4-00-00 JOINT, 2JOINT, 2
-
34JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3GROMMET, ROOF SUPPORT 3
-
35JW1-K7449-00-00 RIVET 1RIVET 1
