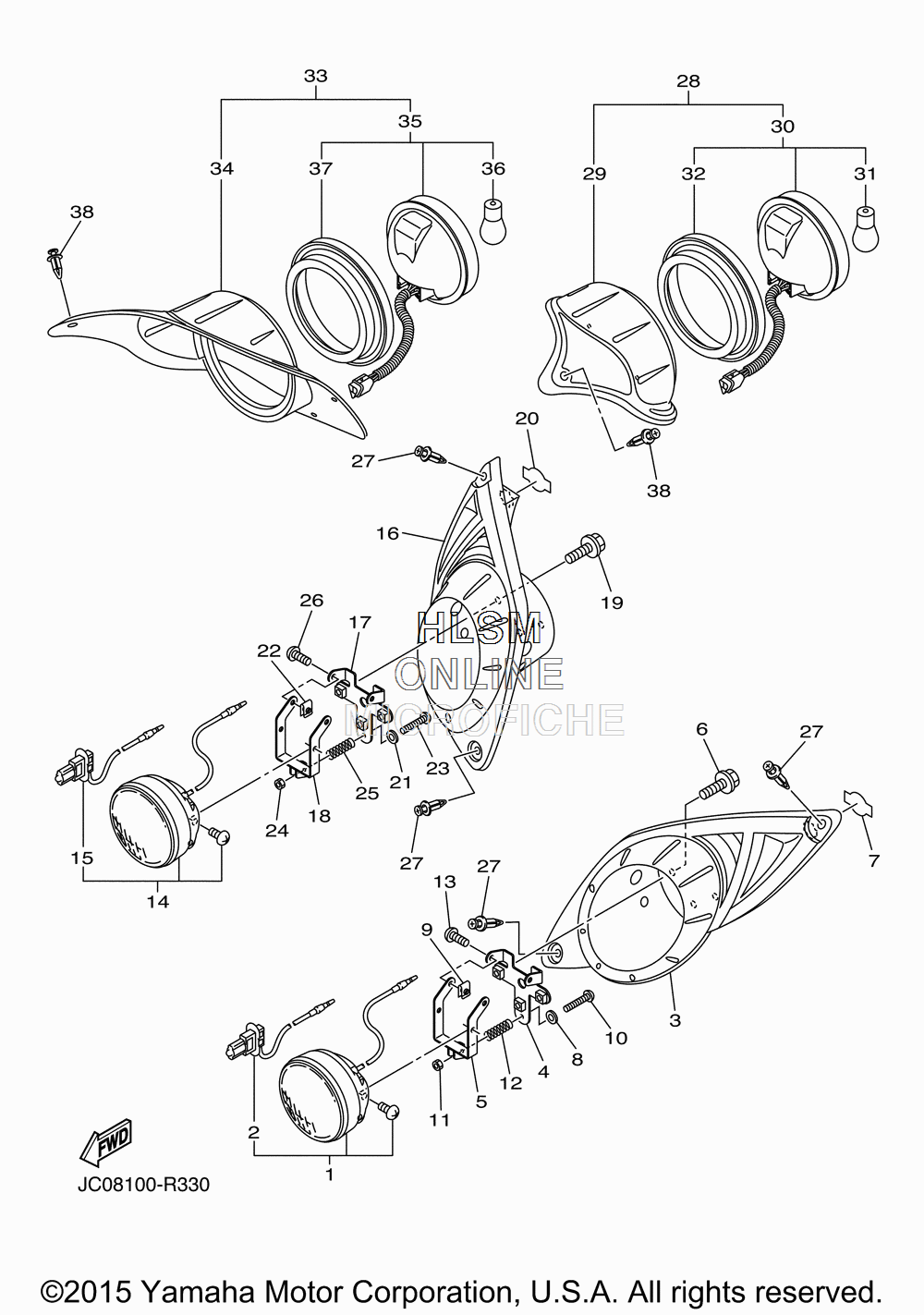

HEADLIGHT / TAIL LIGHT для Yamaha GOLF CAR [DRIVE YDRAX6 PTV HSG] (JC08) - 2016 года выпуска
-
№АртикулНазвание
-
1JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
3JC0-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
4JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
5JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
690119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
890201-03008-00 WASHER, PLATEWASHER, PLATE
-
990183-050A6-00 NUT, SPRINGNUT, SPRING
-
10JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
112GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
122GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
1398902-05016-00 SCREW, BINDSCREW, BIND
-
14JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
16JC0-H4311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
17JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
18JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
1990119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
20JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
2190201-03008-00 WASHER, PLATEWASHER, PLATE
-
2290183-050A6-00 NUT, SPRINGNUT, SPRING
-
23JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
242GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
252GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
2698902-05016-00 SCREW, BINDSCREW, BIND
-
2790269-06800-00 RIVETRIVET
-
28JC0-H4710-20-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
29JC0-H431U-10-00 ...HOLDER...HOLDER
-
30JC0-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
31JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
32JC0-H4718-00-00 ......GROMMET......GROMMET
-
33JC0-H4730-20-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
34JC0-H4387-10-00 ...HOLDER...HOLDER
-
35JC0-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
36JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
37JC0-H4718-00-00 ......GROMMET......GROMMET
-
3890269-06800-00 RIVETRIVET
