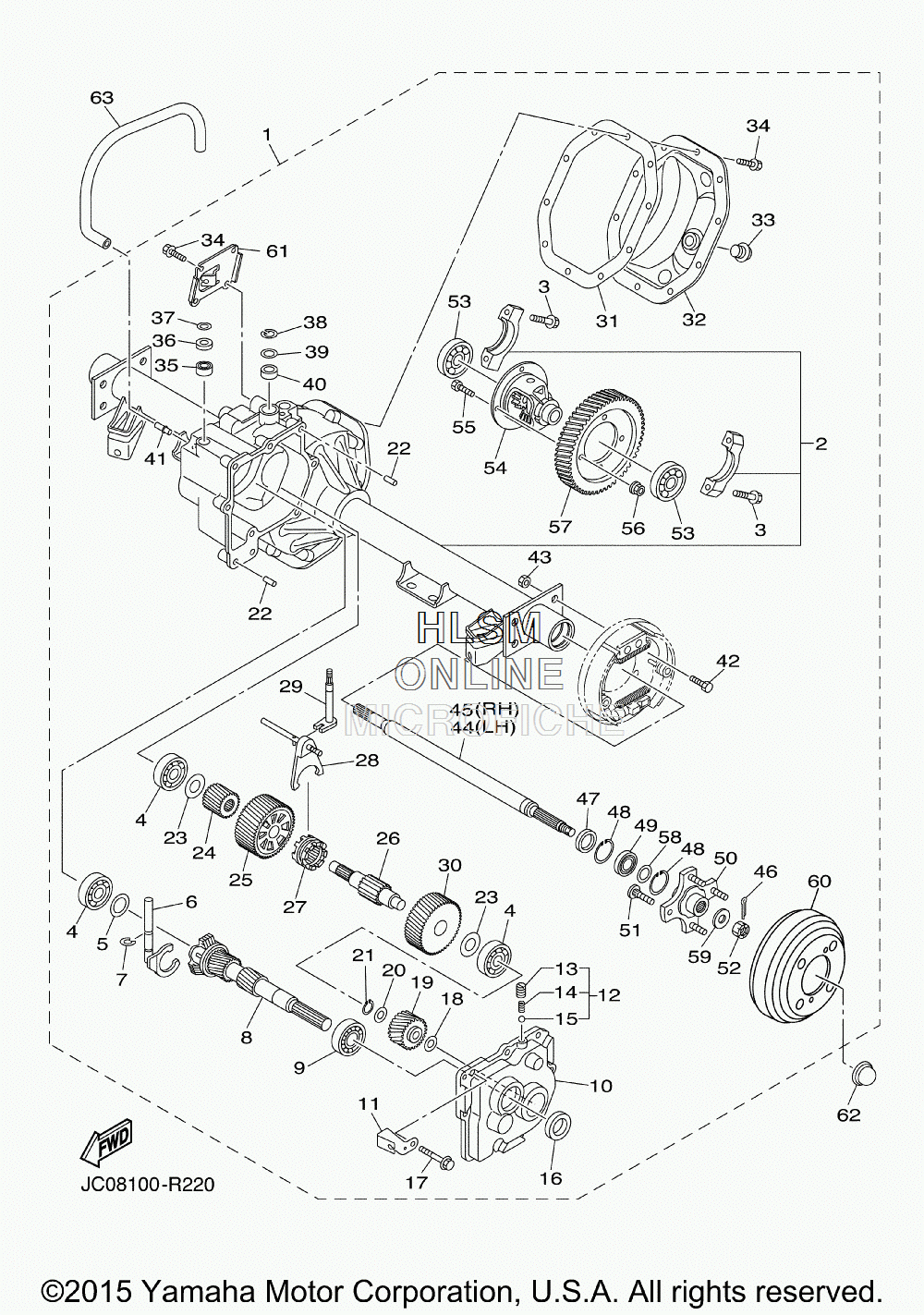

TRANSAXLE для Yamaha GOLF CAR [DRIVE YDRAX6 PTV HSG] (JC08) - 2016 года выпуска
-
№АртикулНазвание
-
1JC0-G6300-10-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW8-G6290-20-00 ...CASE ASSY...CASE ASSY
-
390105-10840-00 ...BOLT, FLANGE...BOLT, FLANGE
-
493306-303Y6-00 ...BEARING...BEARING
-
5JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN)...SHIM, 0.76MM (0.030IN)
-
6JW8-G633E-00-00 ...BAR 1...BAR 1
-
7JU0-F722H-00-00 ...RETAINER...RETAINER
-
8JW8-G6320-00-00 ...INPUT SHAFT ASSY...INPUT SHAFT ASSY
-
993306-005Y1-00 ...BEARING...BEARING
-
10JW8-G6313-10-00 ...COVER, TRNSMISSION...COVER, TRNSMISSION
-
11JW8-G6555-00-00 ...BRACKET 2...BRACKET 2
-
12JU0-G6376-00-00 ...SPRING SET...SPRING SET
-
1390113-08803-00 ......BOLT, SET......BOLT, SET
-
1490501-10852-00 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
1593500-06826-00 ......BALL......BALL
-
1693102-25868-00 ...OIL SEAL...OIL SEAL
-
1790105-08859-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1890201-208H9-00 ...WASHER, PLATE...WASHER, PLATE
-
19JN3-G6356-00-00 ...GEAR, IDLER...GEAR, IDLER
-
2090201-208J0-00 ...WASHER, PLATE...WASHER, PLATE
-
21JW8-F47E3-00-00 ...CIRCLIP...CIRCLIP
-
2293606-10842-00 ...PIN, DOWEL...PIN, DOWEL
-
2390201-178H8-00 ...WASHER, PLATE...WASHER, PLATE
-
24JC0-G6316-00-00 ...GEAR, PINION 1...GEAR, PINION 1
-
25JN3-G6326-00-00 ...GEAR, WHEEL 1...GEAR, WHEEL 1
-
26JN3-G633G-00-00 ...SHAFT...SHAFT
-
27JN3-G6153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
28JN6-G638E-00-00 ...BAR, SHIFT 2...BAR, SHIFT 2
-
29JW8-G638A-00-00 ...BAR, SHIFT 1...BAR, SHIFT 1
-
30JN3-G6327-00-00 ...GEAR, WHEEL 2...GEAR, WHEEL 2
-
31JU0-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
32JW8-G6314-00-00 ...COVER, TRANSMISSION...COVER, TRANSMISSION
-
33JN3-G6432-00-00 ...STOPPER...STOPPER
-
3490101-08856-00 ...BOLT...BOLT
-
35JU0-G6164-00-00 ...BEARING 1...BEARING 1
-
3693109-10820-00 ...OIL SEAL...OIL SEAL
-
37JU0-F723F-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3893410-12822-00 ...CIRCLIP...CIRCLIP
-
3990202-12807-00 ...WASHER, PLATE...WASHER, PLATE
-
4093104-11829-00 ...OIL SEAL...OIL SEAL
-
41JW8-G5378-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
4290101-08855-00 ...BOLT...BOLT
-
4390170-08841-00 ...NUT...NUT
-
44JN3-G6511-00-00 ...SHAFT, REAR AXLE 1 (L.H)...SHAFT, REAR AXLE 1 (L.H)
-
45JN3-G6512-00-00 ...SHAFT, REAR AXLE 2 (R.H)...SHAFT, REAR AXLE 2 (R.H)
-
4691490-30030-00 ...PIN. COTTER...PIN. COTTER
-
4793101-24822-00 ...OIL SEAL...OIL SEAL
-
4893420-44805-00 ...CIRCLIP...CIRCLIP
-
4993306-00440-00 ...BEARING...BEARING
-
50JW8-G6514-00-00 ...HUB, REAR AXLE...HUB, REAR AXLE
-
51JW8-G4178-00-00 ...BOLT, STUD...BOLT, STUD
-
52JW8-G5244-00-00 ...NUT...NUT
-
5393306-007Y0-00 ...BEARING...BEARING
-
54JN6-G6410-00-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
55JC1-G2544-00-00 ...BOLT...BOLT
-
5690170-10840-00 ...NUT...NUT
-
57JC0-G6355-00-00 ...GEAR, PRIMARY...GEAR, PRIMARY
-
58JW8-G2535-00-00 ...WASHER, THRUST...WASHER, THRUST
-
59JW8-G2536-00-00 ...WASHER, THRUST 2...WASHER, THRUST 2
-
60JW3-G6521-00-00 ...DRUM...DRUM
-
61JW8-G1661-00-00 ...BRACKET 1...BRACKET 1
-
62JW8-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
63JW8-G2541-00-00 PIPE 1PIPE 1
