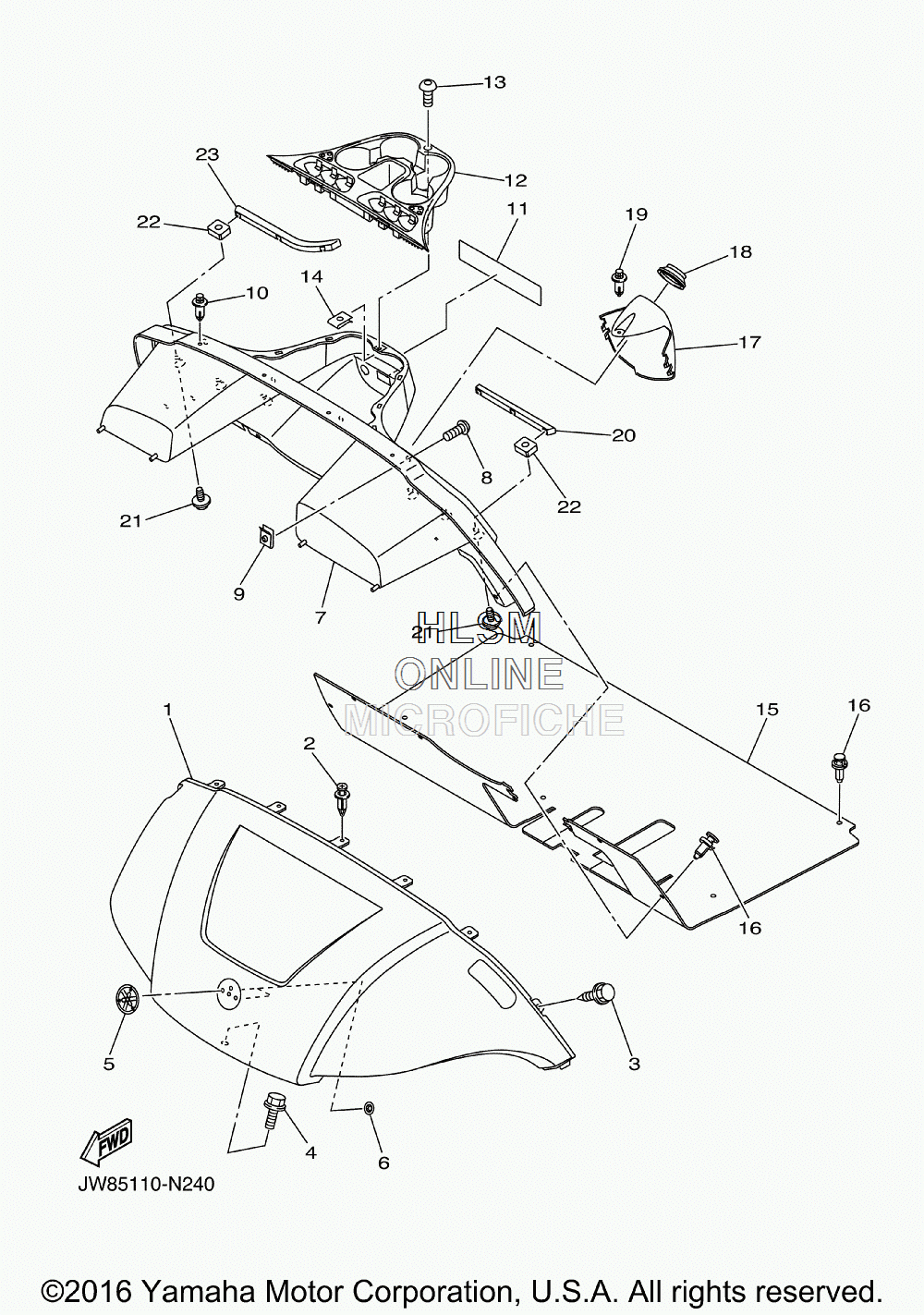

BODY для Yamaha GOLF CAR GAS [DRIVE YDRAX6] (JW87) - 2016 года выпуска
-
№АртикулНазвание
-
1JW1-K8115-01-00 COWL, FRONT (OPT) (WS7)COWL, FRONT (OPT) (WS7)
-
1JW1-K8115-11-00 COWL, FRONT (OPT) (VDGS1)COWL, FRONT (OPT) (VDGS1)
-
1JW1-K8115-21-00 COWL, FRONT (OPT) (HTR)COWL, FRONT (OPT) (HTR)
-
1JW1-K8115-31-00 COWL, FRONT (OPT) (LNYM8)COWL, FRONT (OPT) (LNYM8)
-
1JW1-K8115-80-00 COWL, FRONT (OPT) (DPBST)COWL, FRONT (OPT) (DPBST)
-
1JW1-K8115-90-00 COWL, FRONT (OPT) (LNMP)COWL, FRONT (OPT) (LNMP)
-
1JW1-K8115-W0-00 COWL, FRONT (OPT) (NYS4)COWL, FRONT (OPT) (NYS4)
-
290269-06800-00 RIVETRIVET
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JW2-K8114-02-00 PANEL, FRONTPANEL, FRONT
-
890111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090269-07001-00 RIVETRIVET
-
11JW8-K7768-30-00 LABEL, WARNING 8LABEL, WARNING 8
-
12JW8-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1390111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1490183-05008-00 NUT, SPRINGNUT, SPRING
-
15JW1-K8233-30-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1690269-09003-00 RIVETRIVET
-
17JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
18JW1-K8245-00-00 SEAL 1SEAL 1
-
1990269-06804-00 RIVETRIVET
-
20JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2190119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290173-06010-00 NUT, SQUARENUT, SQUARE
-
23JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
