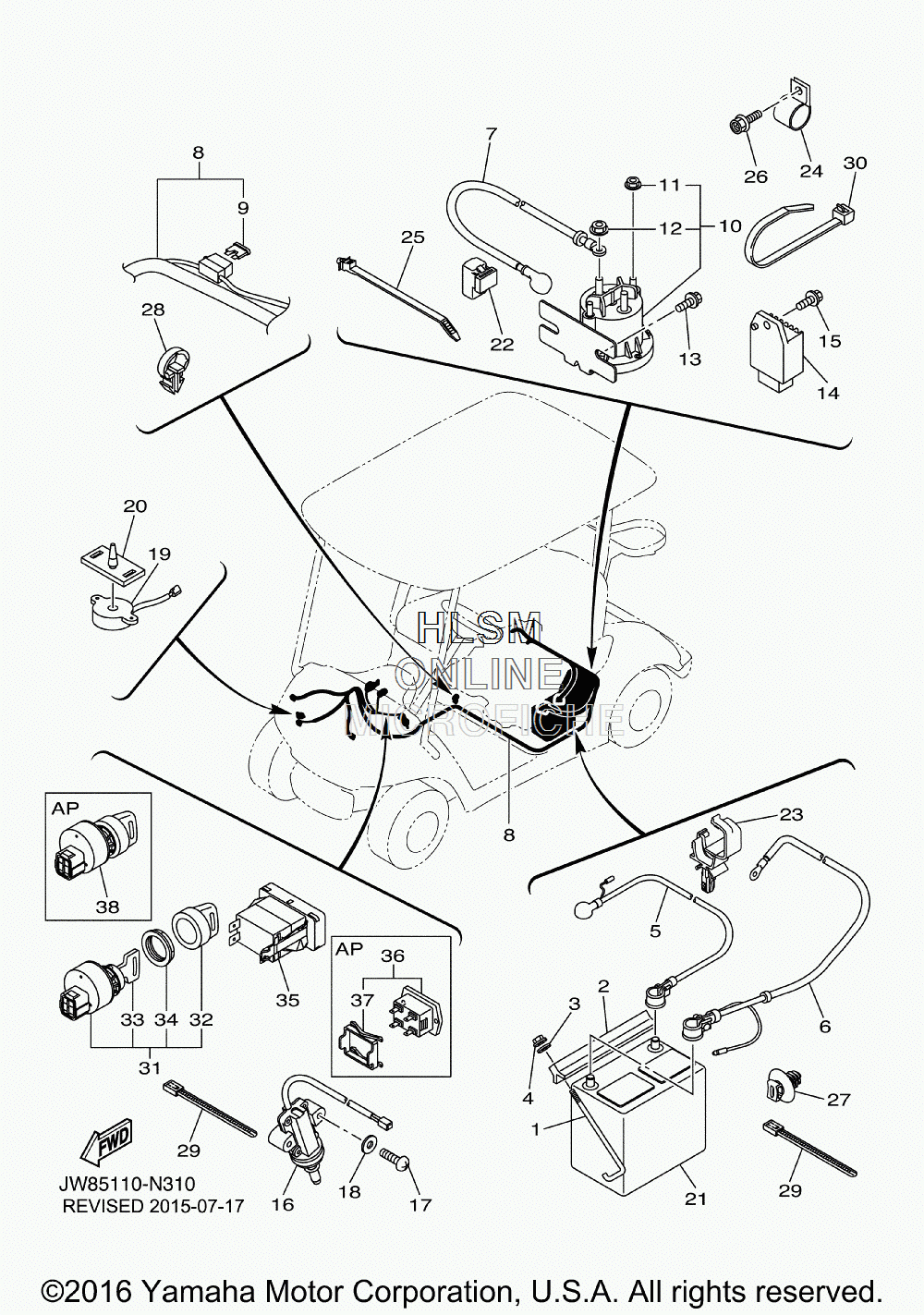

ELECTRICAL 2 для Yamaha GOLF CAR GAS [DRIVE YDRAX6] (JW87) - 2016 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-02-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW8-H2590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
9JN6-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
10JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1190179-05807-00 ...NUT...NUT
-
1290179-08824-00 ...NUT...NUT
-
1390105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
14JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1590105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
16JF7-82817-22-00 SWITCHSWITCH
-
1798502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892902-05600-00 WASHER, PLATEWASHER, PLATE
-
19JR1-H3383-02-00 BUZZERBUZZER
-
20JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
224U8-81950-02-00 RELAY ASSY (4U8-02)RELAY ASSY (4U8-02)
-
2390464-20237-00 CLAMPCLAMP
-
2490461-14108-00 CLAMPCLAMP
-
2590464-09823-00 CLAMPCLAMP
-
2690105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
275UG-F2465-10-00 HOLDERHOLDER
-
2890464-19815-00 CLAMPCLAMP
-
2990464-40825-00 CLAMPCLAMP
-
3090464-76800-00 CLAMPCLAMP
-
31JW1-H2510-00-00 MAIN SWITCH ASSY (STD)MAIN SWITCH ASSY (STD)
-
325UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
33JU2-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
34JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
35JW8-H3530-00-00 PILOT LIGHT ASSY (STD)PILOT LIGHT ASSY (STD)
-
36JN6-H351C-10-00 GAUGE 1 (OPT)GAUGE 1 (OPT)
-
37JW1-H1128-00-00 ...CLAMP...CLAMP
-
38JU2-H2510-20-00 MAIN SWITCH ASSY (OPT) (RANDOM KEY)MAIN SWITCH ASSY (OPT) (RANDOM KEY)
