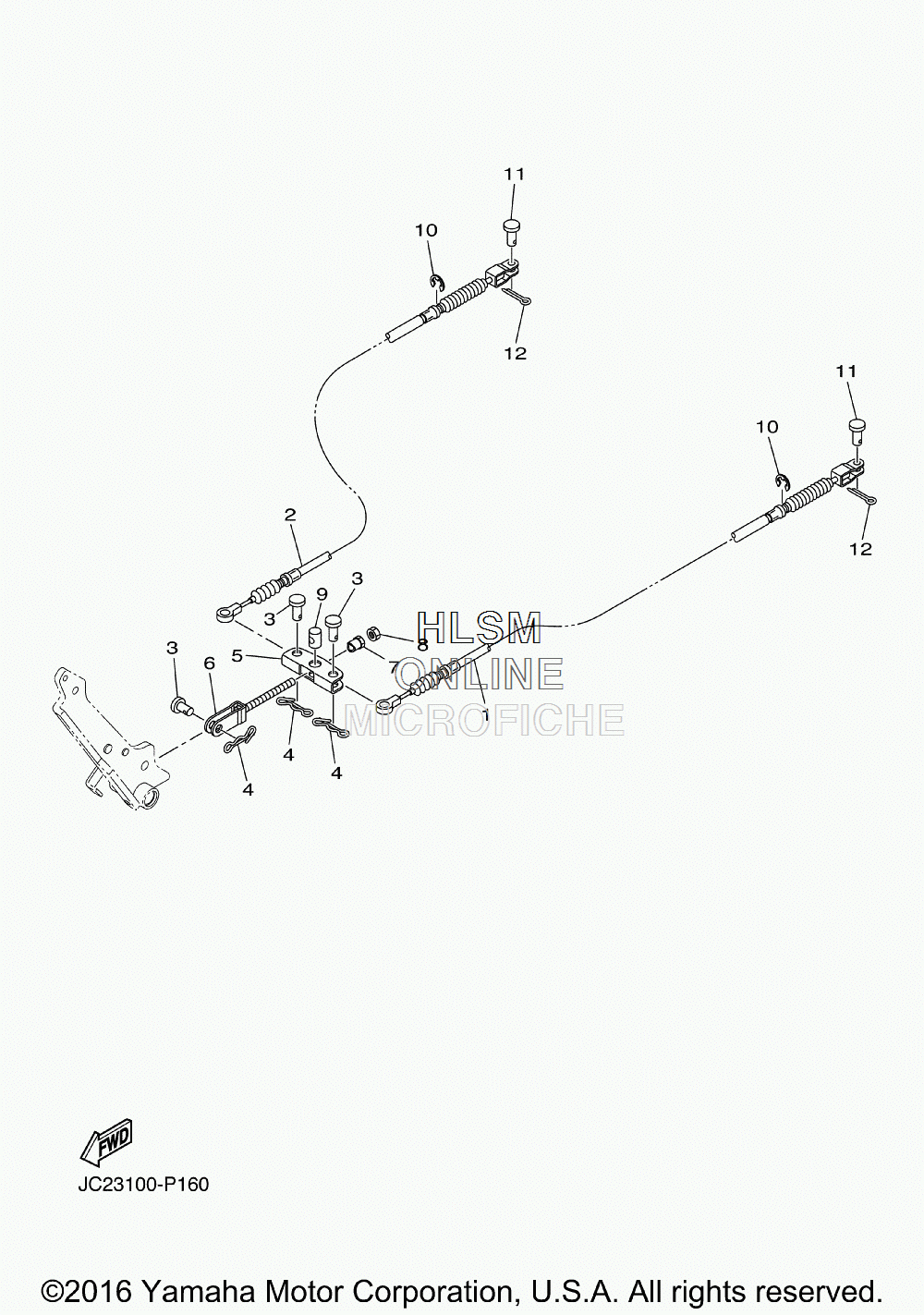

BRAKE - BRAKE SYSTEM для Yamaha SPECIALTY VEHICLE CONCIERGE 4 PASSENGER [YDRAX6 PTV-4] (JD17) - 2016 года выпуска
-
№АртикулНазвание
-
1JD1-F6341-20-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2JD1-F6351-20-00 CABLE, BRAKECABLE, BRAKE
-
391702-10026-00 PIN, CLEVISPIN, CLEVIS
-
490468-20196-00 CLIPCLIP
-
5JW8-F5681-10-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
6JN6-F5685-01-00 RODROD
-
790179-08822-00 NUTNUT
-
895307-08700-00 NUTNUT
-
990249-14129-00 PINPIN
-
1099001-09600-00 CIRCLIPCIRCLIP
-
1191702-08018-00 PIN, CLEVISPIN, CLEVIS
-
1291490-25015-00 PIN. COTTERPIN. COTTER
