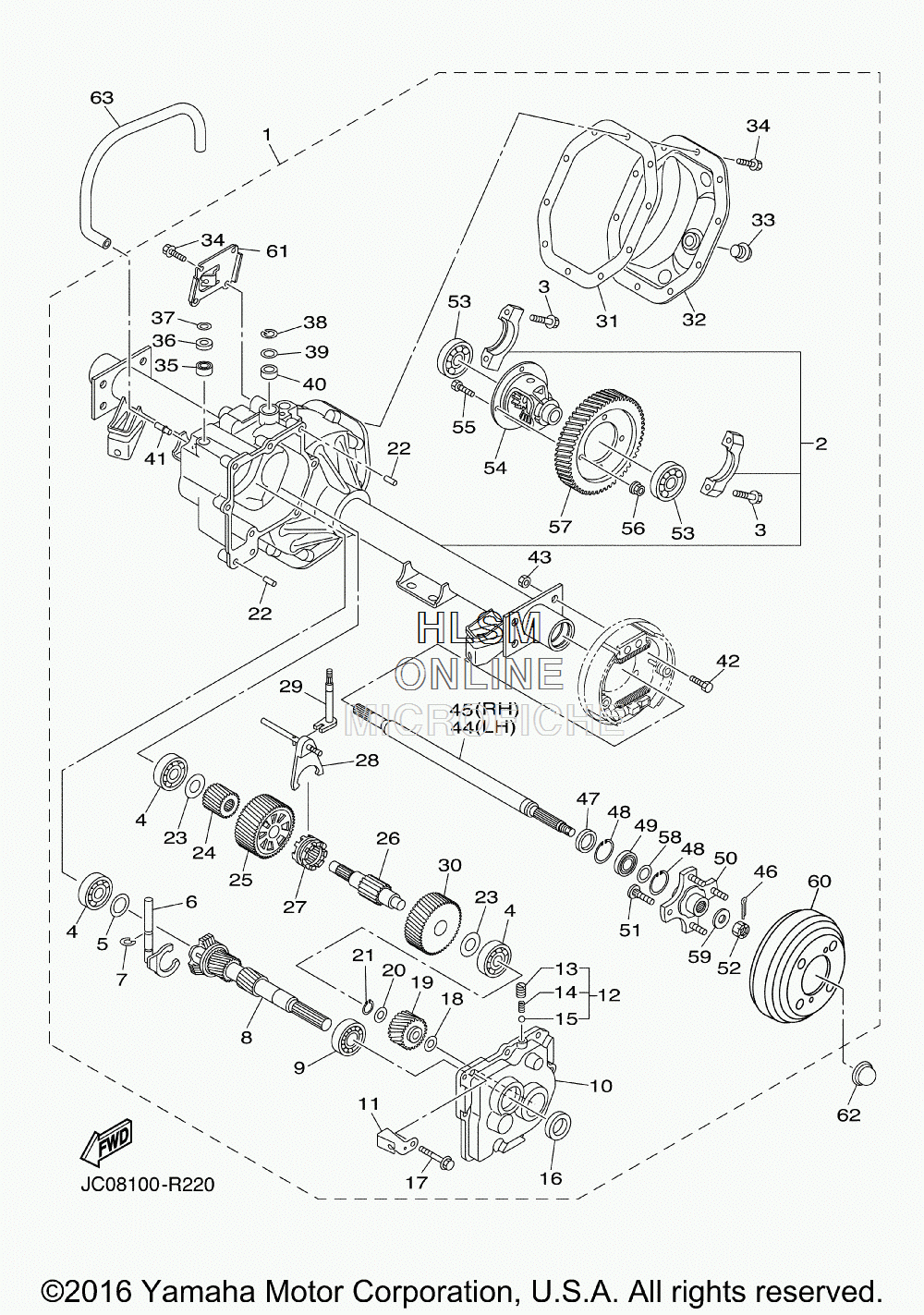

TRANSAXLE для Yamaha SPECIALTY VEHICLE CONCIERGE 4 PASSENGER [YDRAX6 PTV-4] (JD17) - 2016 года выпуска
-
№АртикулНазвание
-
1JC0-G6300-10-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW8-G6290-20-00 ......CASE ASSY......CASE ASSY
-
390105-10840-00 ...BOLT, FLANGE...BOLT, FLANGE
-
493306-303Y6-00 ...BEARING...BEARING
-
5JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN)...SHIM, 0.76MM (0.030IN)
-
6JW8-G633E-00-00 ......BAR 1......BAR 1
-
7JU0-F722H-00-00 ...RETAINER...RETAINER
-
8JW8-G6320-00-00 ...INPUT SHAFT ASSY...INPUT SHAFT ASSY
-
993306-005Y1-00 ...BEARING...BEARING
-
10JW8-G633E-00-00 ......BAR 1......BAR 1
-
11JW8-G6555-00-00 ......BRACKET 2......BRACKET 2
-
12JU0-G6376-00-00 ......SPRING SET......SPRING SET
-
1390113-08803-00 ............BOLT, SET............BOLT, SET
-
1490501-10852-00 ............SPRING, COMPRESSION............SPRING, COMPRESSION
-
1593500-06826-00 ............BALL............BALL
-
1693102-25868-00 ......OIL SEAL......OIL SEAL
-
1790105-08859-00 ......BOLT, FLANGE......BOLT, FLANGE
-
1890201-208H9-00 ......WASHER, PLATE......WASHER, PLATE
-
19JN3-G6356-00-00 ......GEAR, IDLER......GEAR, IDLER
-
2090201-208J0-00 ......WASHER, PLATE......WASHER, PLATE
-
21JW8-F47E3-00-00 ......CIRCLIP......CIRCLIP
-
2293606-10842-00 ......PIN, DOWEL......PIN, DOWEL
-
2390201-178H8-00 ......WASHER, PLATE......WASHER, PLATE
-
24JC0-G6316-00-00 ......GEAR, PINION 1......GEAR, PINION 1
-
25JN3-G6326-00-00 ......GEAR, WHEEL 1......GEAR, WHEEL 1
-
26JN3-G633G-00-00 ......SHAFT......SHAFT
-
27JN3-G6153-00-00 ......COLLAR, GUIDE......COLLAR, GUIDE
-
28JN6-G638E-00-00 ......BAR, SHIFT 2......BAR, SHIFT 2
-
29JW8-G638A-00-00 ......BAR, SHIFT 1......BAR, SHIFT 1
-
30JN3-G6327-00-00 ......GEAR, WHEEL 2......GEAR, WHEEL 2
-
31JU0-G631A-00-00 ......GSKT., CASE......GSKT., CASE
-
32JW8-G6314-00-00 ......COVER, TRANSMISSION......COVER, TRANSMISSION
-
33JN3-G6432-00-00 ......STOPPER......STOPPER
-
3490101-08856-00 ......BOLT......BOLT
-
35JU0-G6164-00-00 ......BEARING 1......BEARING 1
-
3693109-10820-00 ......OIL SEAL......OIL SEAL
-
37JU0-F723F-00-00 ......WASHER, SPECIAL......WASHER, SPECIAL
-
3893410-12822-00 ......CIRCLIP......CIRCLIP
-
3990202-12807-00 ......WASHER, PLATE......WASHER, PLATE
-
4093104-11829-00 ......OIL SEAL......OIL SEAL
-
41JW8-G5378-00-00 ......NIPPLE, HOSE......NIPPLE, HOSE
-
4290101-08855-00 ......BOLT......BOLT
-
4390170-08841-00 ......NUT......NUT
-
44JN3-G6511-00-00 ......SHAFT, REAR AXLE 1 (L.H)......SHAFT, REAR AXLE 1 (L.H)
-
45JN3-G6512-00-00 ......SHAFT, REAR AXLE 2 (R.H)......SHAFT, REAR AXLE 2 (R.H)
-
4691490-30030-00 ......PIN. COTTER......PIN. COTTER
-
4793101-24822-00 ......OIL SEAL......OIL SEAL
-
4893420-44805-00 ......CIRCLIP......CIRCLIP
-
4993306-00440-00 ......BEARING......BEARING
-
50JW8-G6514-00-00 ......HUB, REAR AXLE......HUB, REAR AXLE
-
51JW8-G4178-00-00 ......BOLT, STUD......BOLT, STUD
-
52JW8-G5244-00-00 ......NUT......NUT
-
5393306-007Y0-00 ......BEARING......BEARING
-
54JN6-G6410-00-00 ......DIFFERENTIAL ASSY.......DIFFERENTIAL ASSY.
-
55JC1-G2544-00-00 ......BOLT......BOLT
-
5690170-10840-00 ......NUT......NUT
-
57JC0-G6355-00-00 ......GEAR, PRIMARY......GEAR, PRIMARY
-
58JW8-G2535-00-00 ......WASHER, THRUST......WASHER, THRUST
-
59JW8-G2536-00-00 ......WASHER, THRUST 2......WASHER, THRUST 2
-
60JW3-G6521-00-00 ......DRUM......DRUM
-
61JW8-G1661-00-00 ...BRACKET 1...BRACKET 1
-
62JW8-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
63JW8-G2541-00-00 PIPE 1PIPE 1
