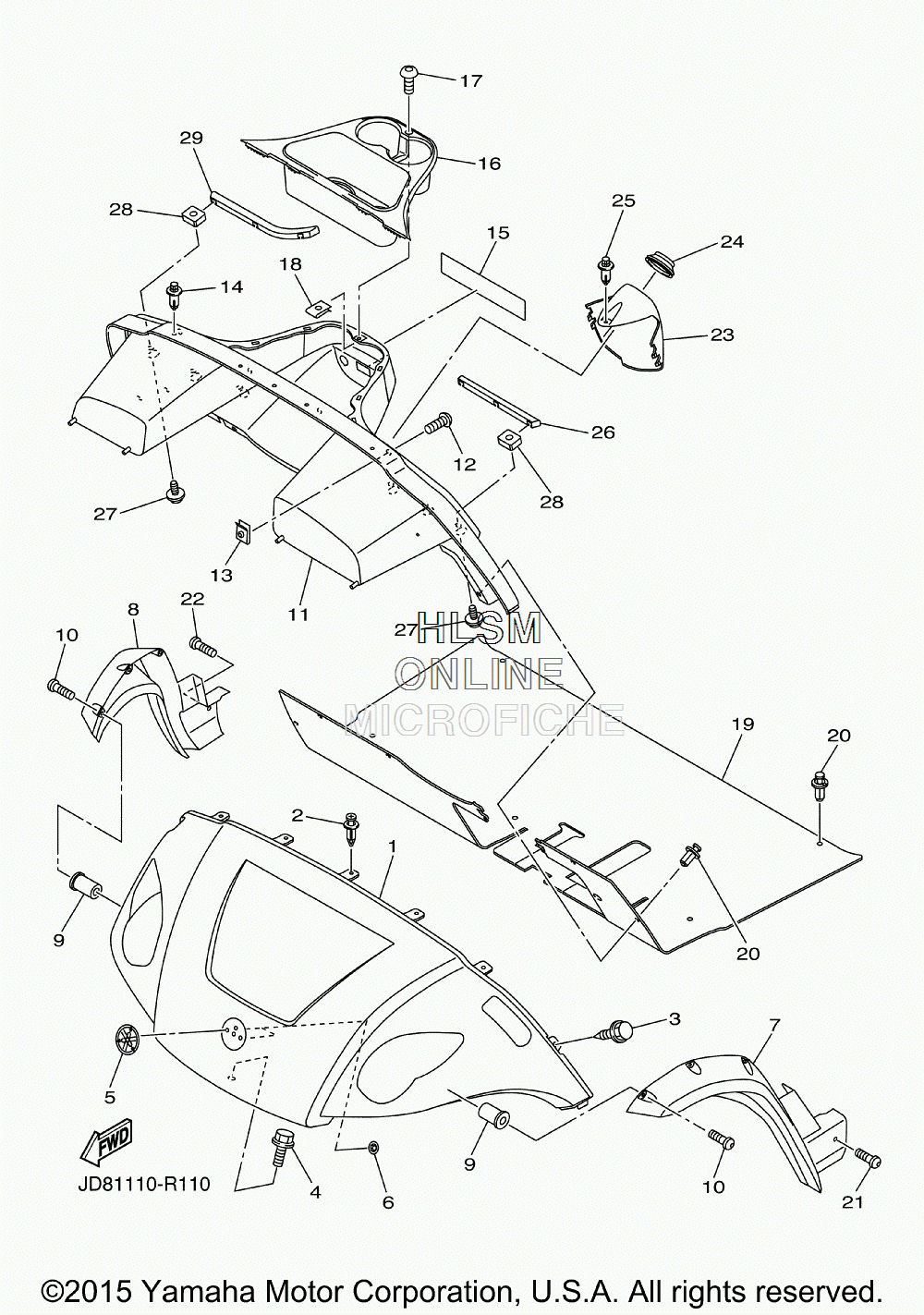

BODY для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDREX6 SUPER] (JD81) - 2016 года выпуска
-
№АртикулНазвание
-
1JC0-K8115-P0-00 COWL, FRONT (WS7)COWL, FRONT (WS7)
-
290269-06800-00 RIVETRIVET
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JW7-F1551-00-00 FENDER, OVERFENDER, OVER
-
8JW7-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
990179-05523-00 NUTNUT
-
1098902-05020-00 SCREW, BINDSCREW, BIND
-
11JC0-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
1290111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390183-05008-00 NUT, SPRINGNUT, SPRING
-
1490269-07001-00 RIVETRIVET
-
15JC1-K7768-60-00 LABEL, WARNING 8LABEL, WARNING 8
-
16JW6-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1790111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1890183-05008-00 NUT, SPRINGNUT, SPRING
-
19JW7-K8233-10-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2090269-09003-00 RIVETRIVET
-
2198902-08040-00 SCREW, BINDSCREW, BIND
-
2298902-08040-00 SCREW, BINDSCREW, BIND
-
23JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
24JW1-K8245-00-00 SEAL 1SEAL 1
-
2590269-06804-00 RIVETRIVET
-
26JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2790119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890173-06010-00 NUT, SQUARENUT, SQUARE
-
29JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
