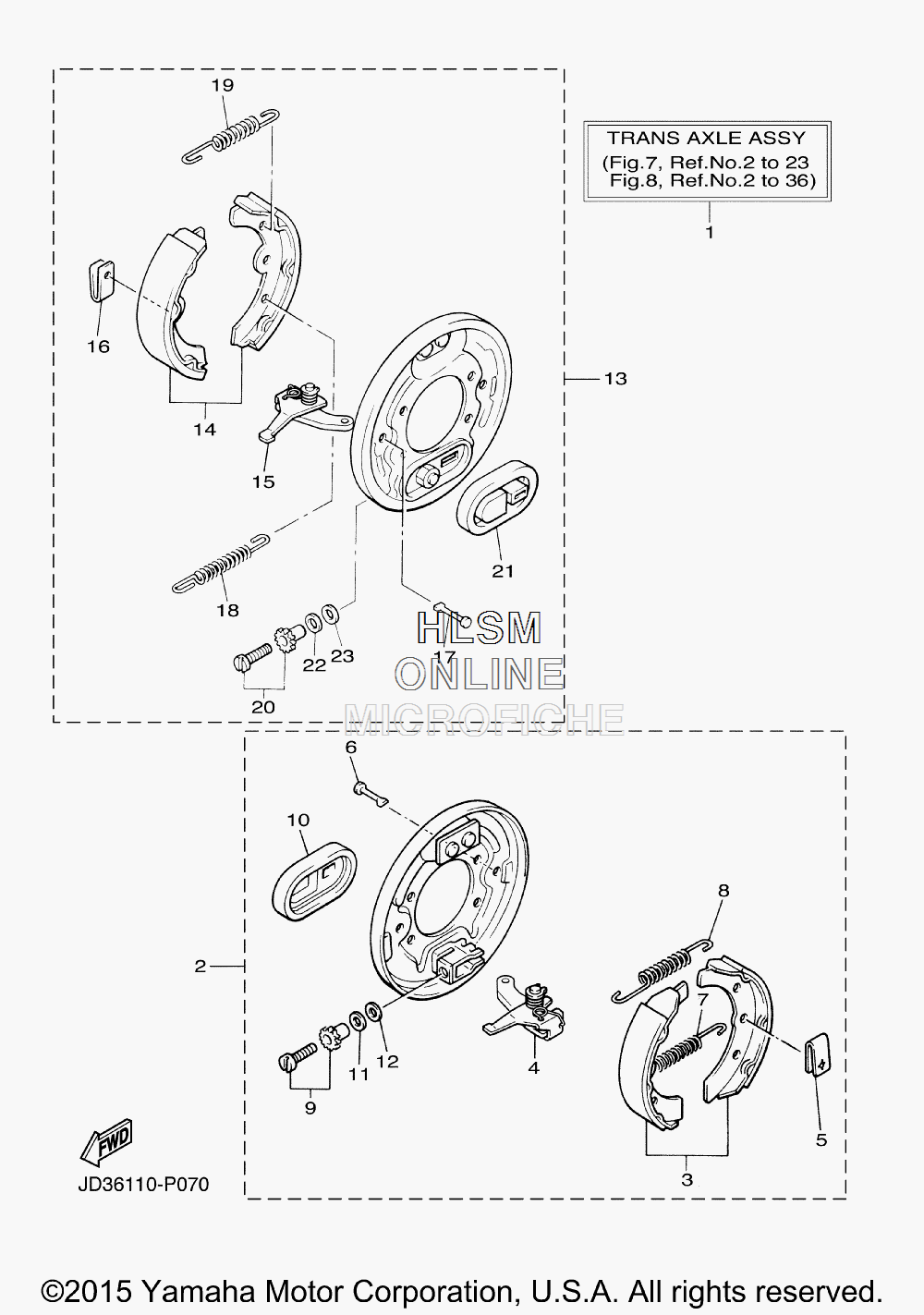

BRAKE для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDREX6 SUPER] (JD81) - 2016 года выпуска
-
№АртикулНазвание
-
1JC1-G6300-00-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW8-F7290-00-00 ...BACKING PLATE ASSY 2...BACKING PLATE ASSY 2
-
3JN9-W2536-00-00 ......BRAKE SHOE SET......BRAKE SHOE SET
-
4J38-27205-00-00 ......LEVER ASSY 2......LEVER ASSY 2
-
5JW8-F7281-00-00 ......SPRING, SHOE CLAMP......SPRING, SHOE CLAMP
-
6J10-27282-00-00 ......PIN, SHOE HOLD DOWN......PIN, SHOE HOLD DOWN
-
790506-20281-00 ......SPRING, TENSION......SPRING, TENSION
-
890506-14001-00 ......SPRING, TENSION......SPRING, TENSION
-
9J55-27260-00-00 ......ADJUSTER ASSY......ADJUSTER ASSY
-
10JW8-F7286-00-00 ......COVER, DUST......COVER, DUST
-
1190201-121H9-00 ......WASHER, PLATE......WASHER, PLATE
-
1290201-121H8-00 ......WASHER, PLATE......WASHER, PLATE
-
13JW8-F7280-00-00 ...BACKING PLATE ASSY 1...BACKING PLATE ASSY 1
-
14JN9-W2536-00-00 ......BRAKE SHOE SET......BRAKE SHOE SET
-
15J38-27204-00-00 ......LEVER ASSY 1......LEVER ASSY 1
-
16JW8-F7281-00-00 ......SPRING, SHOE CLAMP......SPRING, SHOE CLAMP
-
17J10-27282-00-00 ......PIN, SHOE HOLD DOWN......PIN, SHOE HOLD DOWN
-
1890506-20281-00 ......SPRING, TENSION......SPRING, TENSION
-
1990506-14001-00 ......SPRING, TENSION......SPRING, TENSION
-
20J55-27270-00-00 ......ADJUSTER ASSY......ADJUSTER ASSY
-
21JW8-F7286-00-00 ......COVER, DUST......COVER, DUST
-
2290201-121H9-00 ......WASHER, PLATE......WASHER, PLATE
-
2390201-121H8-00 ......WASHER, PLATE......WASHER, PLATE
