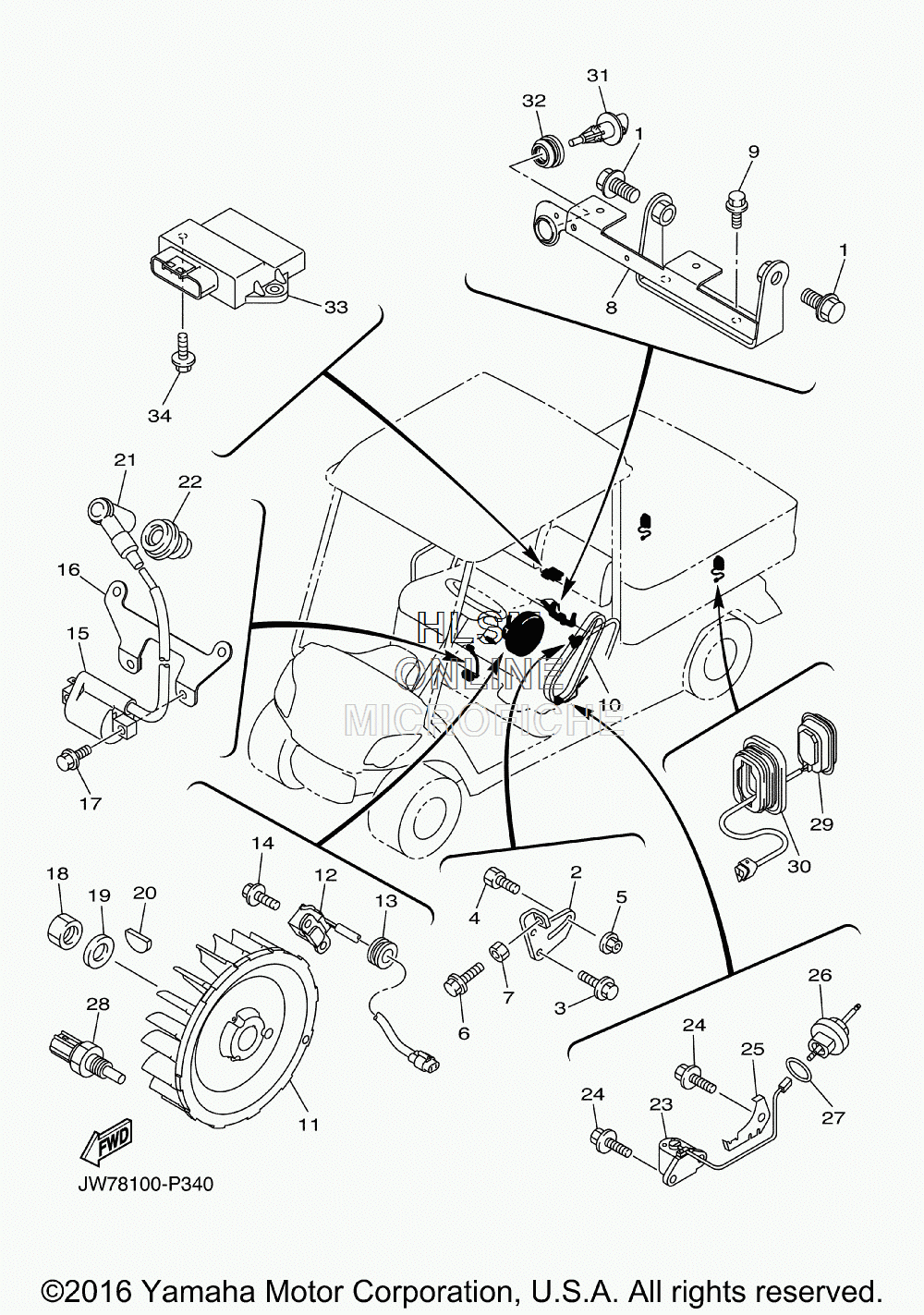

ELECTRICAL для Yamaha ADVENTURER TWO (YTF2A17 SERIAL: JW7-800101) - 2017 года выпуска
-
№АртикулНазвание
-
195812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
2JW1-H1170-11-00 TENSIONER ASSYTENSIONER ASSY
-
395822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490109-08827-00 BOLTBOLT
-
595702-08500-00 NUT, FLANGENUT, FLANGE
-
692012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
795302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
8JC0-H1171-00-00 BRACKET, STARTER GENERATORBRACKET, STARTER GENERATOR
-
995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
10JW1-H1173-02-00 BELTBELT
-
11JC0-85650-10-00 ROTOR ASSYROTOR ASSY
-
12JC0-81670-10-00 PICK-UP ASSYPICK-UP ASSY
-
1390480-20564-00 GROMMETGROMMET
-
1495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
151S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
16JC0-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1795822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1895302-18600-00 NUT, HEXAGONNUT, HEXAGON
-
1990201-18620-00 WASHER, PLATEWASHER, PLATE
-
2090280-04052-00 KEY, WOODRUFFKEY, WOODRUFF
-
21JN6-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
22JE8-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
23JT0-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
2495817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
25JT0-85724-00-00 CLAMPCLAMP
-
26JT0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2793210-15566-00 O-RINGO-RING
-
284P9-83591-00-00 THERMO UNITTHERMO UNIT
-
29JU5-H4700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
30JU5-H4718-00-00 GROMMETGROMMET
-
315CA-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
325CA-14435-00-00 GROMMETGROMMET
-
33JC0-8591A-02-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
3490119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
