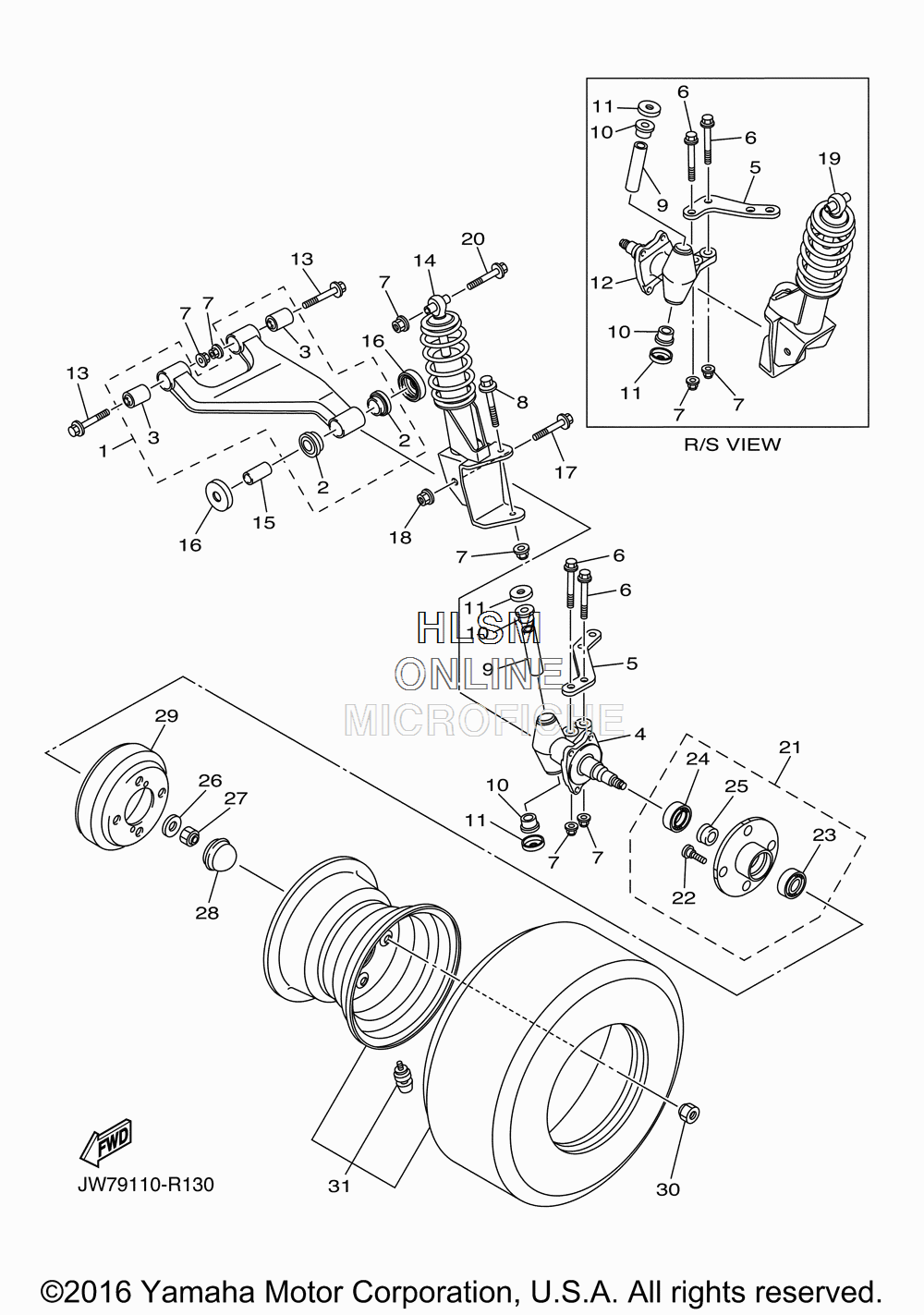

SUSPENSION - FRONT WHEEL для Yamaha ADVENTURER TWO (YTF2A17 SERIAL: JW7-800101) - 2017 года выпуска
-
№АртикулНазвание
-
1JU0-F3570-20-00 FRONT LOWER ARM COMP.FRONT LOWER ARM COMP.
-
290381-18001-00 ...BUSH, SOLID...BUSH, SOLID
-
32HR-23526-00-00 ...BUSH...BUSH
-
4JW7-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
5JW1-F3512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
690105-10373-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
890105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
92NL-23448-00-00 SPACERSPACER
-
1090381-17067-00 BUSH, SOLIDBUSH, SOLID
-
112NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
12JW7-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
1390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
14JW7-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1590387-12016-00 COLLARCOLLAR
-
16401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
1795812-12080-00 BOLT, FLANGEBOLT, FLANGE
-
1895612-12100-00 NUT, UNUT, U
-
19JW7-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
2090105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
21JW3-F5103-00-00 HUB BEARING UNIT ASSYHUB BEARING UNIT ASSY
-
2290114-12805-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2393306-204X0-00 ...BEARING...BEARING
-
2493306-005Y3-00 ...BEARING...BEARING
-
2590387-241M7-00 ...COLLAR...COLLAR
-
2690208-14801-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2795602-14100-00 NUT, UNUT, U
-
28JN6-F5118-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
29JW3-G6521-00-00 DRUMDRUM
-
3090179-12262-00 NUTNUT
-
31JW1-F5100-01-00 WHEEL ASSY (18X8.50-8-4PLY)WHEEL ASSY (18X8.50-8-4PLY)
