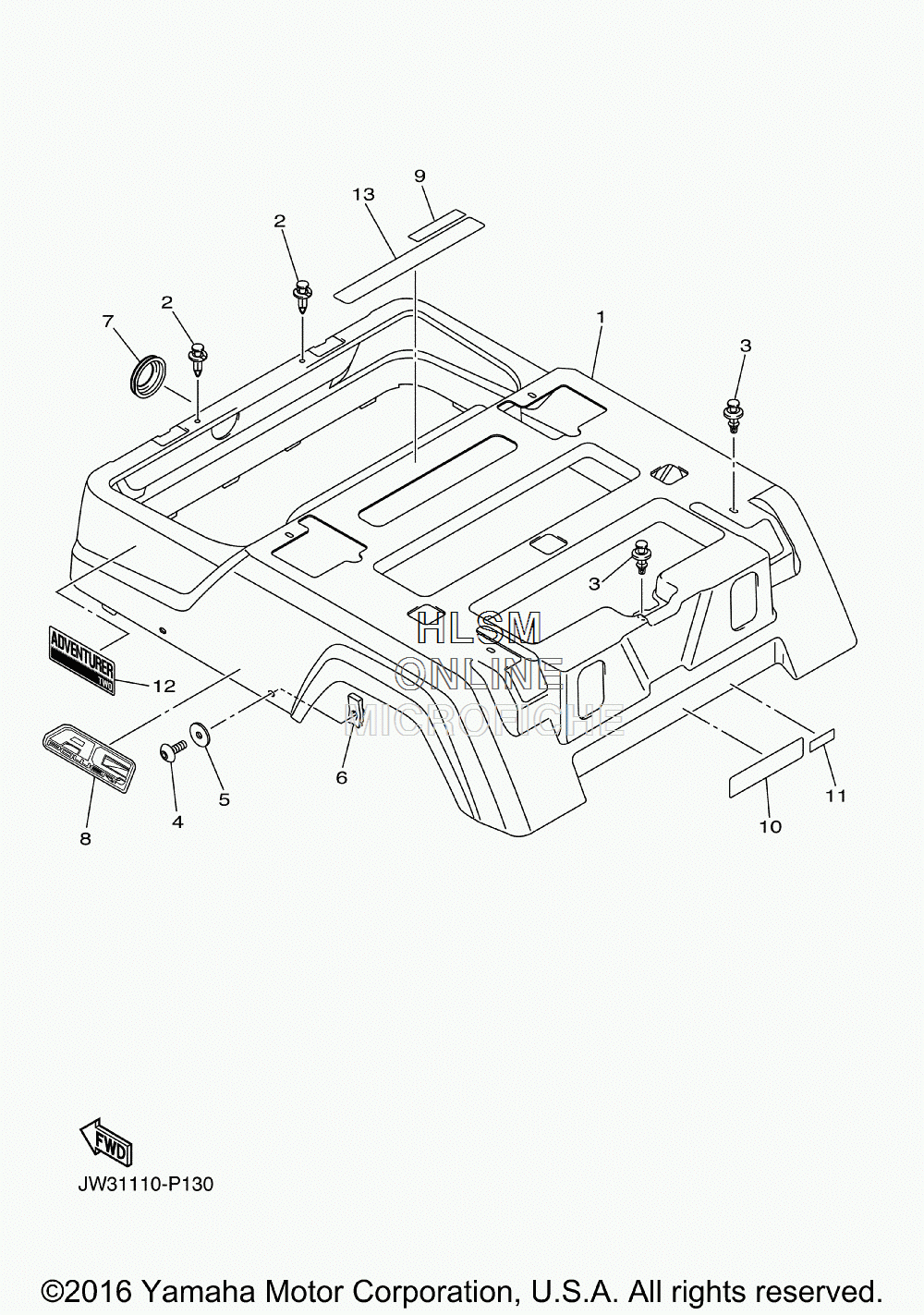

BODY 2 для Yamaha ADVENTURER TWO (YTF2E17 SERIAL: JW3-200101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW3-K8142-00-00 PANEL, REAR BODYPANEL, REAR BODY
-
290269-08813-00 RIVETRIVET
-
3JW6-K7449-00-00 RIVET 1RIVET 1
-
490111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
590201-06086-00 WASHER, PLATEWASHER, PLATE
-
690183-06811-00 NUT, SPRINGNUT, SPRING
-
7JW9-K827A-00-00 GUIDE 1GUIDE 1
-
8JW3-F1781-00-00 EMBLEM 1EMBLEM 1
-
9JW9-K8298-10-00 PLATE, CAUTION 2PLATE, CAUTION 2
-
10JW3-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
11JW6-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
12JW7-F1781-00-00 EMBLEM 1 (OPT)EMBLEM 1 (OPT)
-
13JW3-K8297-01-00 PLATE, CAUTION 1PLATE, CAUTION 1
