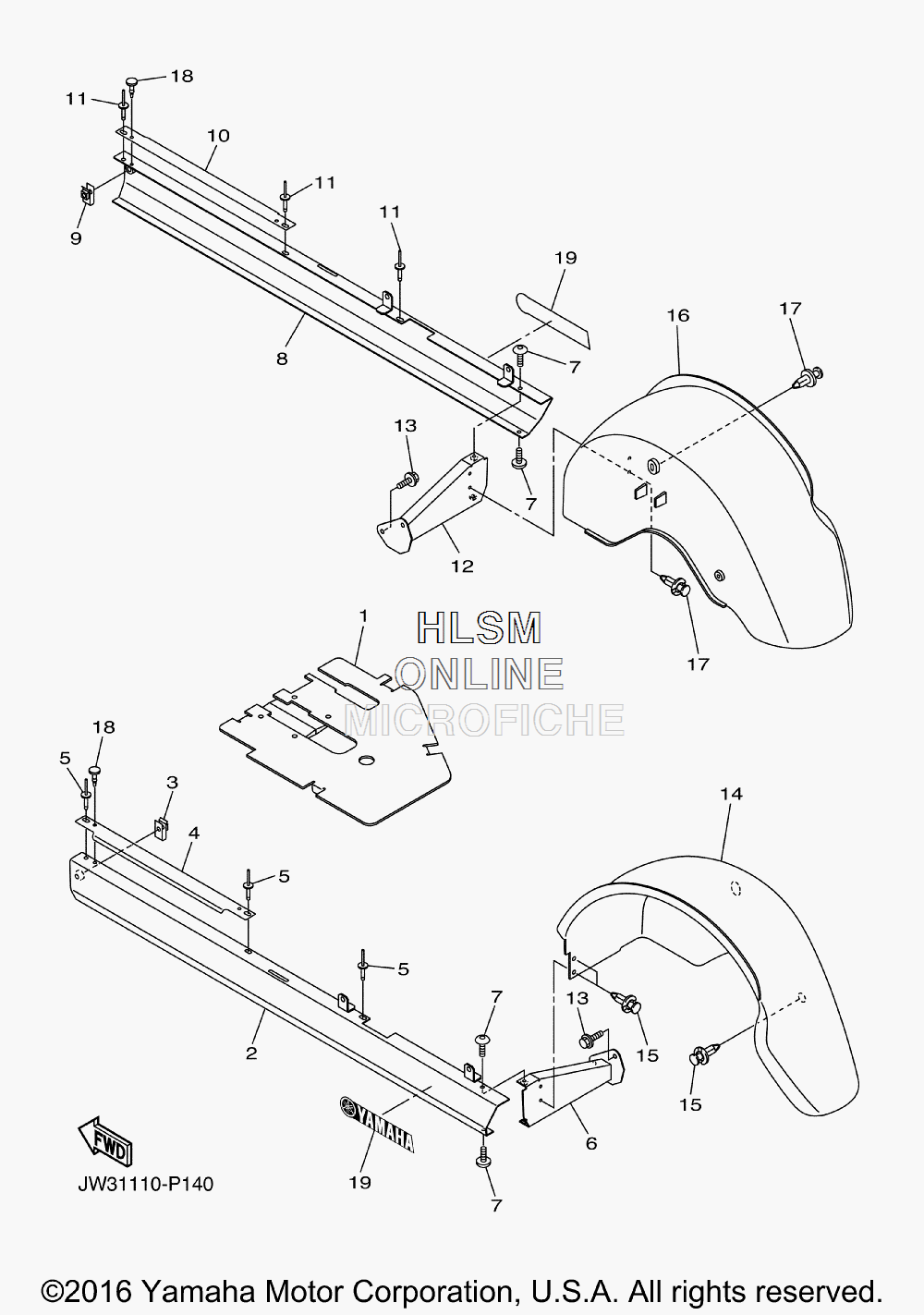

BODY FITTING для Yamaha ADVENTURER TWO (YTF2E17 SERIAL: JW3-200101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW1-K8270-11-00 LID ASSYLID ASSY
-
2JW7-K818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
3JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
4JW7-K8215-00-00 PLATE, SIDE TRIMPLATE, SIDE TRIM
-
5JW7-K7329-00-00 RIVETRIVET
-
6JW7-K818E-00-00 CAP, PROTECTOR END 1CAP, PROTECTOR END 1
-
790111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
8JW7-K818B-00-00 PROTECTOR, SIDE PLATE 2PROTECTOR, SIDE PLATE 2
-
9JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
10JW7-K8215-00-00 PLATE, SIDE TRIMPLATE, SIDE TRIM
-
11JW7-K7329-00-00 RIVETRIVET
-
12JW7-K818F-00-00 CAP, PROTECTOR END 2CAP, PROTECTOR END 2
-
1390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
14JW1-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
1590269-06804-00 RIVETRIVET
-
16JW1-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
1790269-06804-00 RIVETRIVET
-
18JW1-K7449-00-00 RIVET 1RIVET 1
-
19F1X-U411C-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
