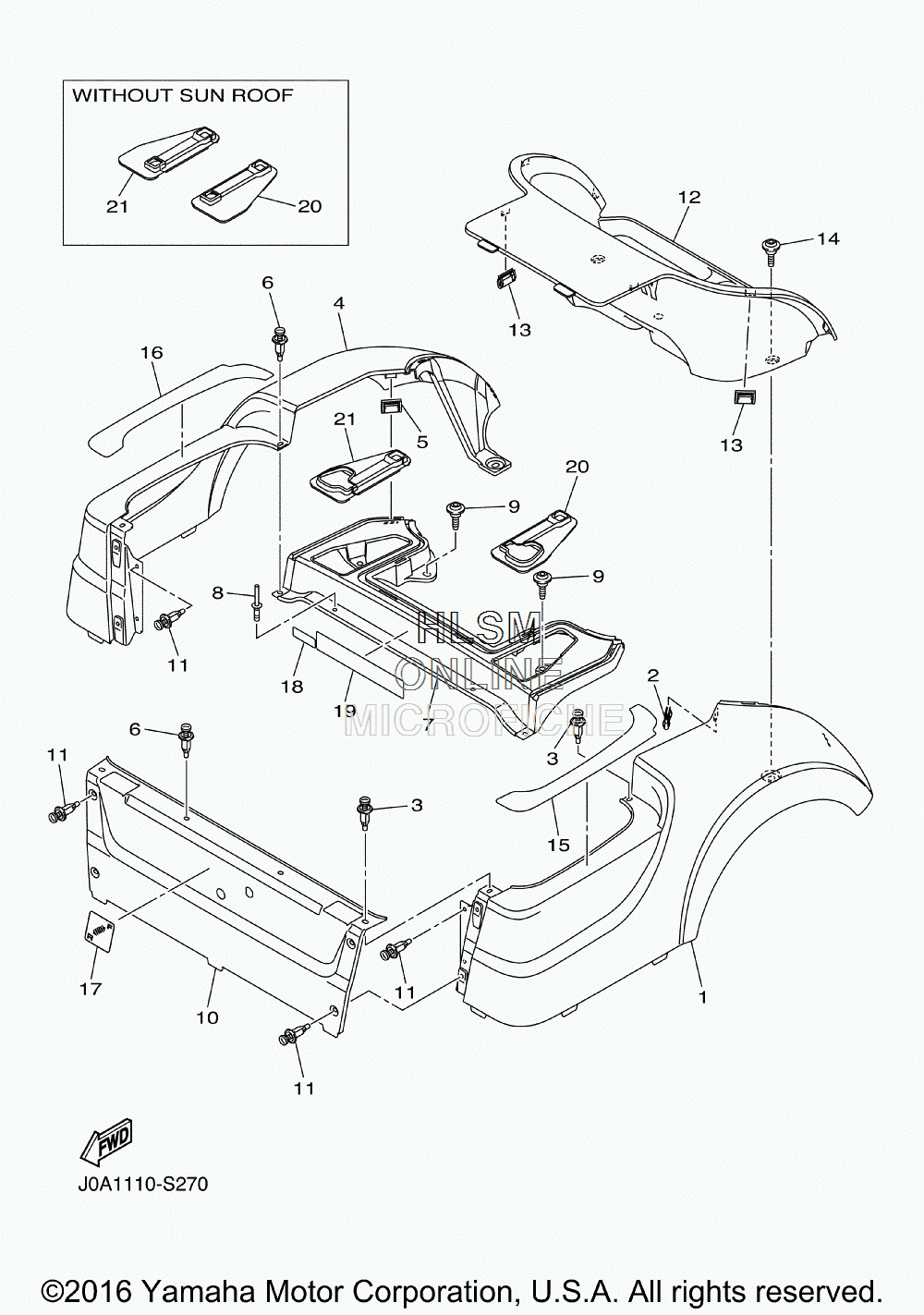

BODY 2 для Yamaha DRIVE2 (DR2A17 SERIAL: J0A-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K8111-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
1J0B-K8111-10-00 PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
-
1J0B-K8111-00-00 PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
-
1J0B-K8111-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1J0B-K8111-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
1J0B-K8111-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0B-K8111-B0-00 PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
-
1J0B-K8111-50-00 PANEL, BODY SHELL (FOR HTR - HEAT RED)PANEL, BODY SHELL (FOR HTR - HEAT RED)
-
1J0B-K8111-60-00 PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
-
2J0B-F3447-00-00 CLIPCLIP
-
390269-07803-00 RIVETRIVET
-
4J0B-K8112-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
4J0B-K8112-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
4J0B-K8112-10-00 PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
-
4J0B-K8112-60-00 PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
-
4J0B-K8112-50-00 PANEL, BODY SHELL (FOR HTR - HEAT RED)PANEL, BODY SHELL (FOR HTR - HEAT RED)
-
4J0B-K8112-B0-00 PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
-
4J0B-K8112-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
4J0B-K8112-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
4J0B-K8112-00-00 PANEL, BODY SHELL (FOR DNBME - DNBME - DARK GRAYISH BLUE)PANEL, BODY SHELL (FOR DNBME - DNBME - DARK GRAYISH BLUE)
-
5J0B-F3447-00-00 CLIPCLIP
-
690269-07803-00 RIVETRIVET
-
7J0B-K819H-00-00 SHELL, REAR BODYSHELL, REAR BODY
-
8JW7-K7329-00-00 RIVETRIVET
-
9J0B-F1738-00-00 BOLTBOLT
-
10J0B-K8141-10-00 PANEL, INTERMEDIATE BODY (FOR VDGS1 - VERY DARK GREEN)PANEL, INTERMEDIATE BODY (FOR VDGS1 - VERY DARK GREEN)
-
10J0B-K8141-00-00 PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)
-
10J0B-K8141-60-00 PANEL, INTERMEDIATE BODY (FOR DNMC - DARK GRAY METALLIC)PANEL, INTERMEDIATE BODY (FOR DNMC - DARK GRAY METALLIC)
-
10J0B-K8141-30-00 PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)
-
10J0B-K8141-40-00 PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)
-
10J0B-K8141-B0-00 PANEL, INTERMEDIATE BODY (FOR NYS4 - GRAYISH YELLOW)PANEL, INTERMEDIATE BODY (FOR NYS4 - GRAYISH YELLOW)
-
10J0B-K8141-50-00 PANEL, INTERMEDIATE BODY (FOR HTR - HEAT RED)PANEL, INTERMEDIATE BODY (FOR HTR - HEAT RED)
-
10J0B-K8141-A0-00 PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)
-
10J0B-K8141-20-00 PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1190269-07803-00 RIVETRIVET
-
12J0B-K8237-01-00 COVER, REAR FLOORCOVER, REAR FLOOR
-
13J0B-F3447-00-00 CLIPCLIP
-
14J0B-F1738-00-00 BOLTBOLT
-
15J0B-F2873-01-00 SEAL 1SEAL 1
-
16J0B-F2874-01-00 SEAL 2SEAL 2
-
17JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
18JN6-H2377-00-00 LABELLABEL
-
19JW1-K8297-02-00 PLATE, CAUTION 1PLATE, CAUTION 1
-
20J0B-K817H-10-00 TRIM, SIDE PANEL 1 (WITH SUN ROOF)TRIM, SIDE PANEL 1 (WITH SUN ROOF)
-
20J0B-K817H-00-00 TRIM, SIDE PANEL 1 (WITHOUT SUN ROOF)TRIM, SIDE PANEL 1 (WITHOUT SUN ROOF)
-
21J0B-K817J-00-00 TRIM, SIDE PANEL 2 (WITHOUT SUN ROOF)TRIM, SIDE PANEL 2 (WITHOUT SUN ROOF)
-
21J0B-K817J-10-00 TRIM, SIDE PANEL 2 (WITH SUN ROOF)TRIM, SIDE PANEL 2 (WITH SUN ROOF)
