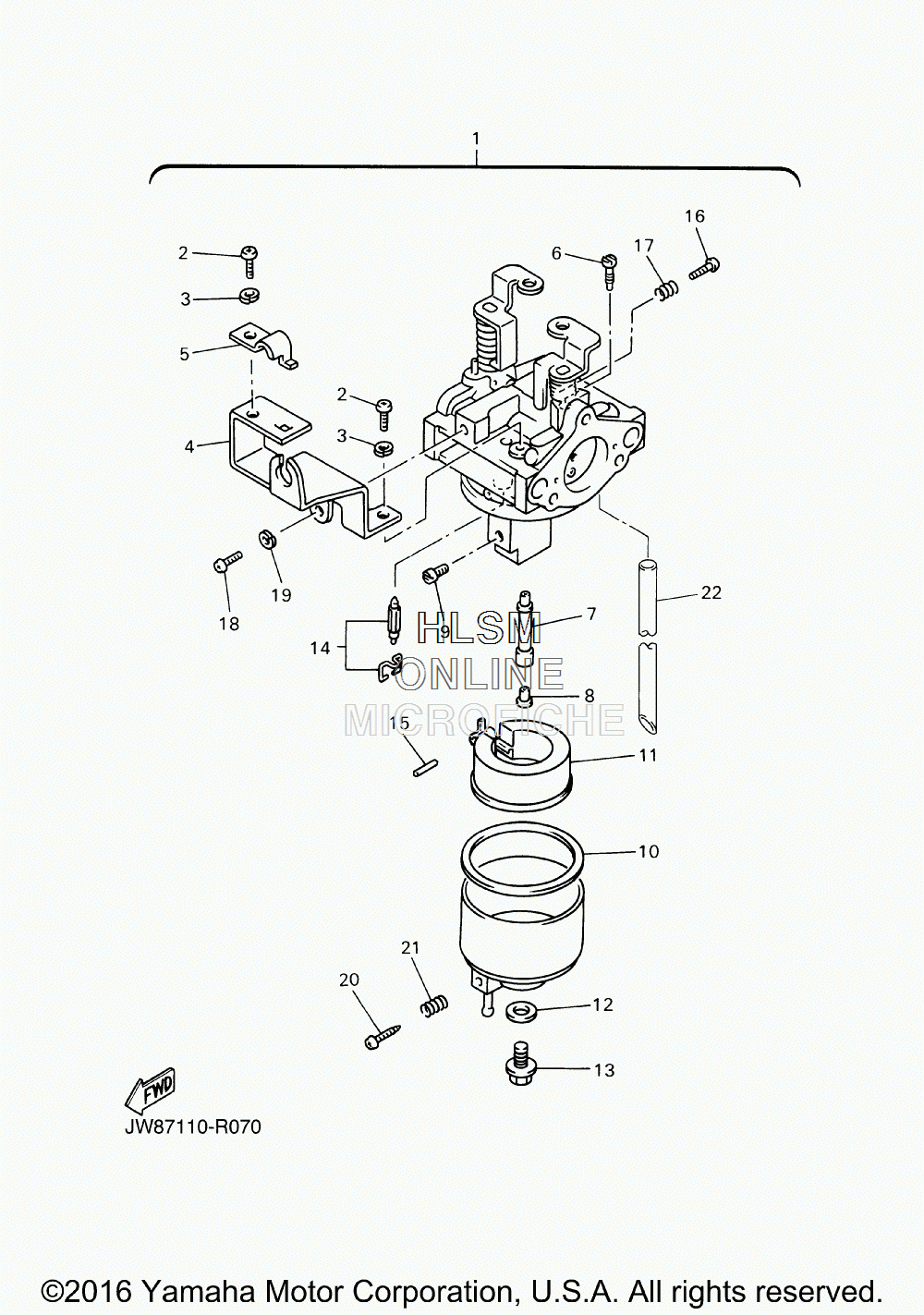

CARBURETOR для Yamaha DRIVE2 (DR2A17 SERIAL: J0A-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JR6-14101-02-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
298507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
392990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
4JN6-14291-00-00 ...BRACKET 1...BRACKET 1
-
5J10-14227-00-00 ...PLATE...PLATE
-
6732-14142-65-A0 ...JET, PILOT (# 65)...JET, PILOT (# 65)
-
7JN6-1495H-3B-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
873A-1414G-00-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
93G2-1423A-68-A0 ...JET, MAIN (# 87.5) (STD)...JET, MAIN (# 87.5) (STD)
-
93G2-1423E-33-A0 ...JET, MAIN (#83.8) (OPT)...JET, MAIN (#83.8) (OPT)
-
93G2-1423A-67-00 ...JET, MAIN (# 82.5) (OPT)...JET, MAIN (# 82.5) (OPT)
-
107CT-E4997-00-00 ...SEAL...SEAL
-
11JN6-14185-00-00 ...FLOAT...FLOAT
-
12127-14198-00-00 ...GASKET...GASKET
-
137R1-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
-
14JN5-14150-00-00 ...NEEDLE ASSY (WITH CLIP)...NEEDLE ASSY (WITH CLIP)
-
1522F-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
161WG-14922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
1773A-14212-10-00 ...SPRING...SPRING
-
1898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
207E1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2173A-14212-00-00 ...SPRING...SPRING
-
221KT-14197-01-00 ...PIPE...PIPE
