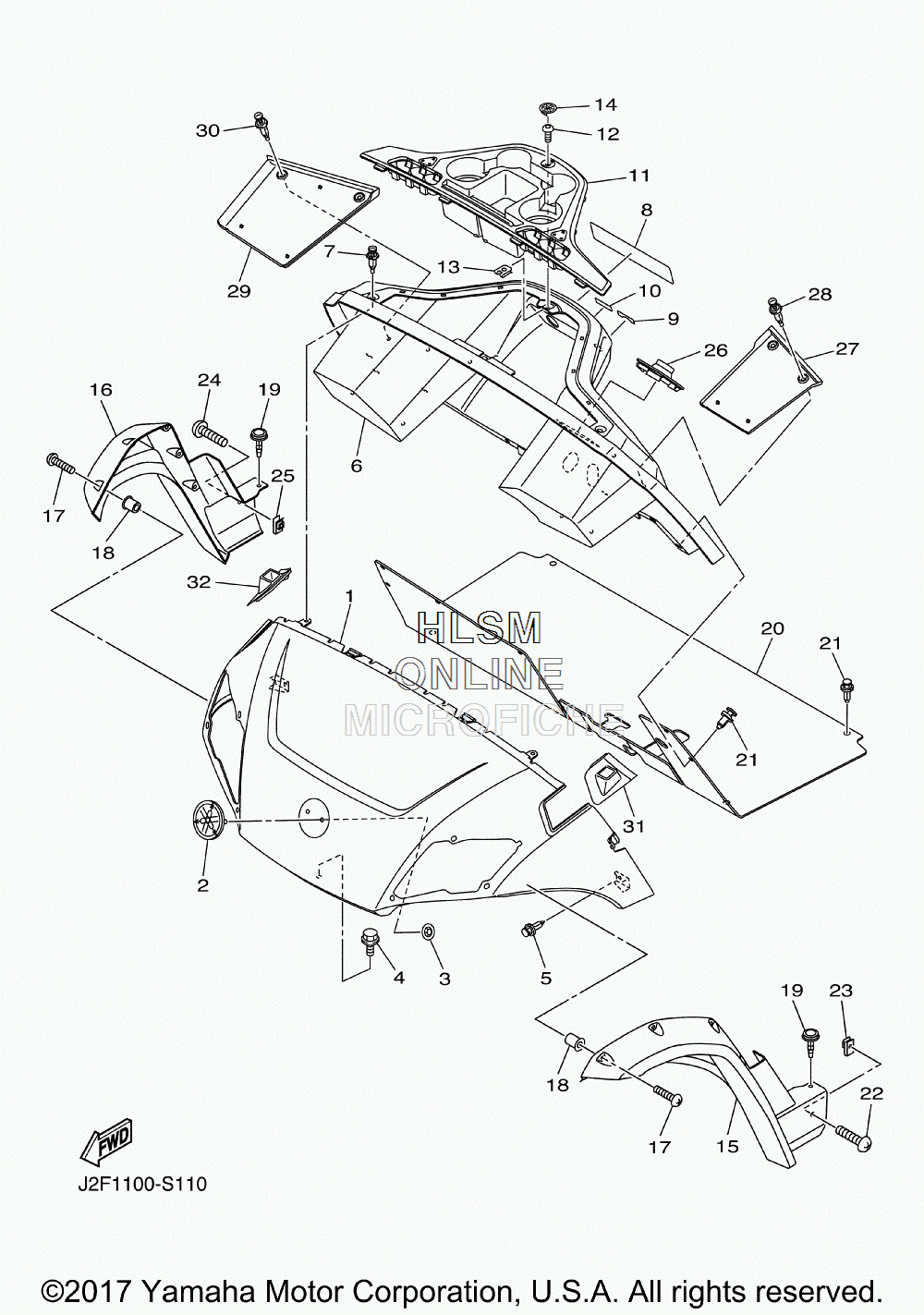

BODY для Yamaha SUPER HAULER (DR2E17 SERIAL: J03-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-K8115-A0-00 COWL, FRONTCOWL, FRONT
-
2J0B-F4161-00-00 EMBLEM 1EMBLEM 1
-
3JU0-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
590269-06804-00 RIVETRIVET
-
6J0E-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
790269-07805-00 RIVETRIVET
-
8J0B-K7768-00-00 LABEL, WARNING 8 (ENGLISH)LABEL, WARNING 8 (ENGLISH)
-
9J0D-K8282-00-00 PLATE, SWITCH PANELPLATE, SWITCH PANEL
-
10J0C-K7741-00-00 INDICATOR 1INDICATOR 1
-
11J0B-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1290111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390183-05008-00 NUT, SPRINGNUT, SPRING
-
14J0B-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
15J2E-F1551-00-00 FENDER, OVERFENDER, OVER
-
16J2E-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
1798902-05020-00 SCREW, BINDSCREW, BIND
-
1890179-05523-00 NUTNUT
-
1990269-06804-00 RIVETRIVET
-
20J2E-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2190269-09003-00 RIVETRIVET
-
2298902-08040-00 SCREW, BINDSCREW, BIND
-
23JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
2498902-08040-00 SCREW, BINDSCREW, BIND
-
25JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
26J0B-K8273-02-00 COVER, HOLECOVER, HOLE
-
27J0B-K8243-00-00 MAT, REAR BODY SIDE (LEFT)MAT, REAR BODY SIDE (LEFT)
-
2890269-07805-00 RIVETRIVET
-
29J0B-K8244-00-00 MAT, REAR BODY SIDE (RIGHT)MAT, REAR BODY SIDE (RIGHT)
-
3090269-07805-00 RIVETRIVET
-
31J0B-K832F-10-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
-
32J0B-K832G-10-00 GROMMET, ROOF SUPPORT 2GROMMET, ROOF SUPPORT 2
