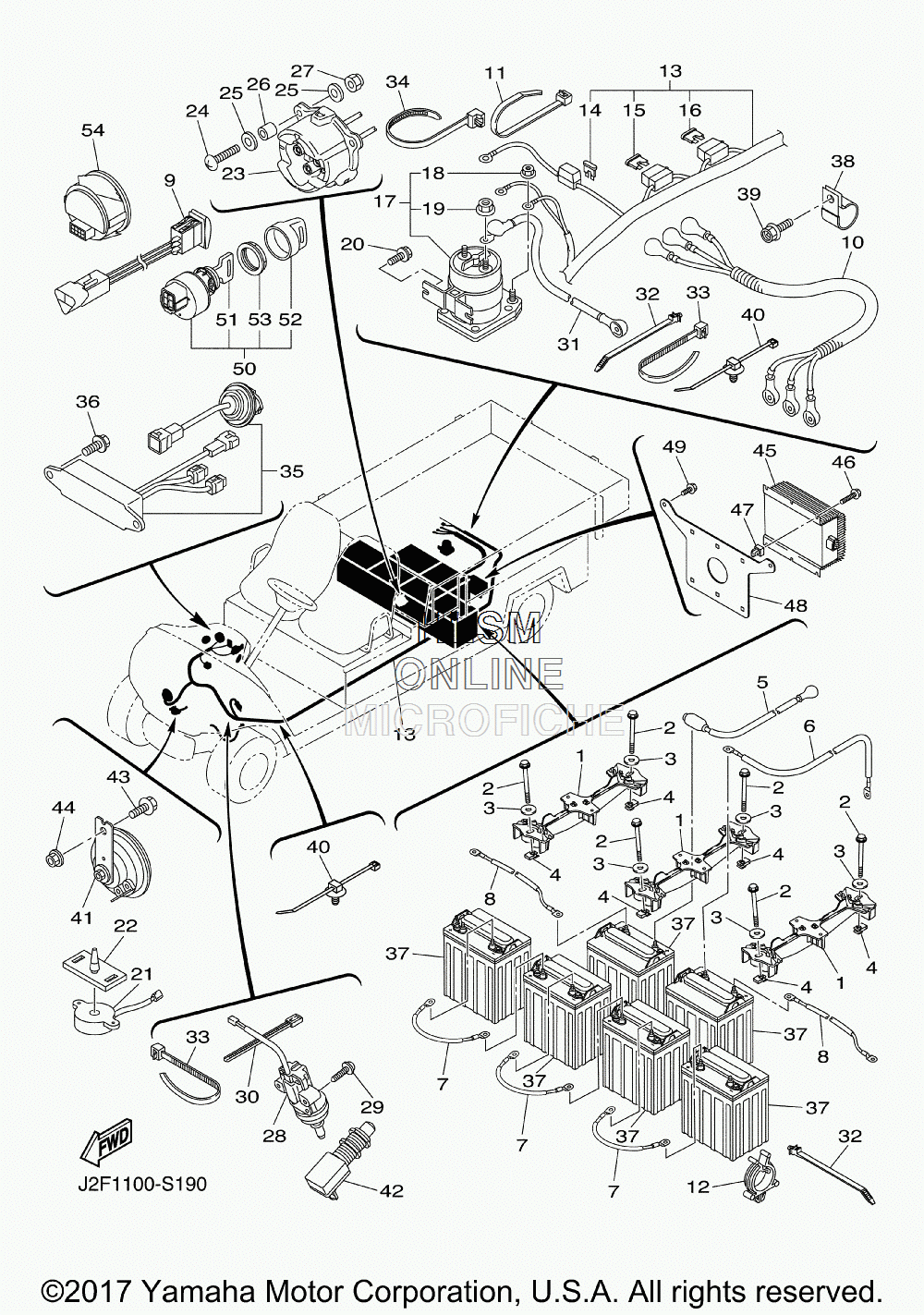

ELECTRICAL для Yamaha SUPER HAULER (DR2E17 SERIAL: J03-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JC1-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JC1-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JC1-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
8JC1-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
9JU2-H2917-00-00 SWITCHSWITCH
-
10JC1-H1441-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1190464-76800-00 CLAMPCLAMP
-
1290464-25826-00 CLAMPCLAMP
-
13J2D-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
14J0E-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
15JR1-H2151-00-00 ...FUSE (3A)...FUSE (3A)
-
16J0E-H2151-10-00 ...FUSE (1A)...FUSE (1A)
-
17JU6-H1950-00-00 RELAY ASSYRELAY ASSY
-
1890179-05807-00 ...NUT...NUT
-
1990179-08824-00 ...NUT...NUT
-
2090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
21JR1-H3383-02-00 BUZZERBUZZER
-
22JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
23JD8-H6181-00-00 RECEPTACLERECEPTACLE
-
24JD7-G5282-00-00 SCREWSCREW
-
25JD7-G7359-00-00 WASHERWASHER
-
26JD7-G6254-00-00 SPACER, DAMPERSPACER, DAMPER
-
27JD7-G621L-00-00 NUTNUT
-
28JF7-82817-22-00 SWITCHSWITCH
-
2997602-05225-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
3090464-40825-00 CLAMPCLAMP
-
31J0E-H6527-00-00 WIRE 7WIRE 7
-
3290464-20005-00 CLAMPCLAMP
-
3390464-48800-00 CLAMPCLAMP
-
3490464-51800-00 CLAMPCLAMP
-
35J0E-H21E0-01-00 USB ASSYUSB ASSY
-
3690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3890461-14108-00 CLAMPCLAMP
-
3990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
401NS-F1338-00-00 CLAMPCLAMP
-
414LR-83371-11-00 HORNHORN
-
42JR6-H270X-00-00 SWITCHSWITCH
-
4395822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4495702-06500-00 NUT, FLANGENUT, FLANGE
-
45JU6-H1910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
46JC1-H252V-00-00 SCREW, SPECIALSCREW, SPECIAL
-
47JC1-H397K-00-00 NUT, INSERTNUT, INSERT
-
48JC1-F7876-40-00 BRKT.,SWITCHBRKT.,SWITCH
-
4990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
50JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
51JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
525UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
53JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
54JC1-H351B-01-00 GAUGE, BATTERYGAUGE, BATTERY
