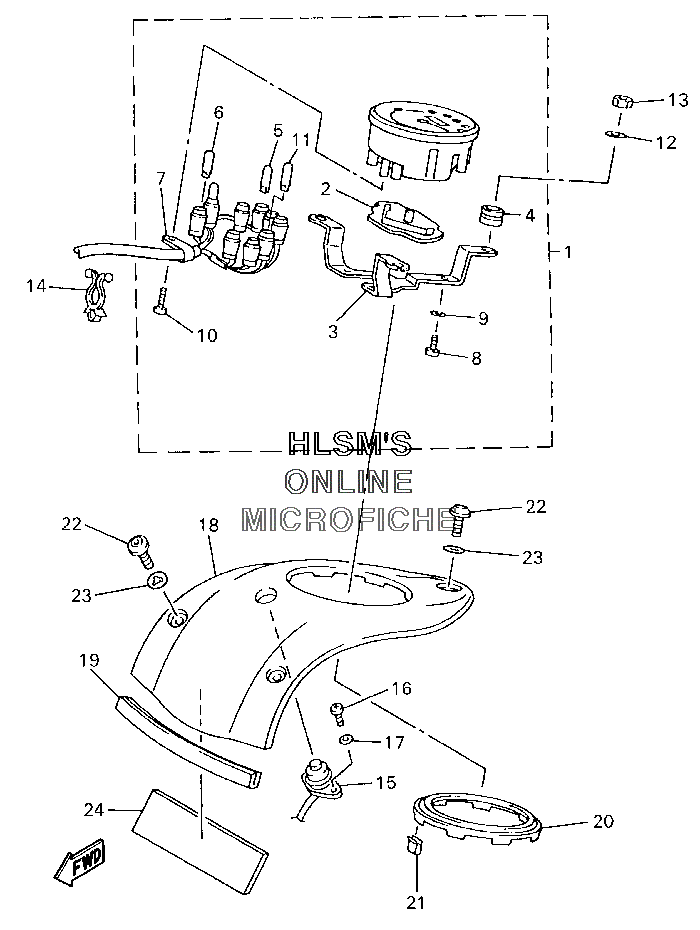

INSTRUMENT PANEL для Yamaha XVZ 1300 AT ROYAL STAR TOUR CLASSIC CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14YE-83500-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
24NK-83579-00-00 ...COVER, METER 2...COVER, METER 2
-
34NK-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
44NK-83523-00-00 ...DAMPER...DAMPER
-
52GV-83517-00-00 ...BULB (12V-1.7W, T6.5)...BULB (12V-1.7W, T6.5)
-
64NK-83517-00-00 ...BULB (12V-1.4W, T6.5) (FOR ILLUMI.)...BULB (12V-1.4W, T6.5) (FOR ILLUMI.)
-
74NK-8357E-00-00 ...CLAMP...CLAMP
-
898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1097707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1142X-83517-00-00 ...BULB (12V-3W) (FOR FUEL)...BULB (12V-3W) (FOR FUEL)
-
1290201-05036-00 WASHER, PLATEWASHER, PLATE
-
1395307-05600-00 NUTNUT
-
1490464-13066-00 CLAMPCLAMP
-
154NK-8358J-00-00 SWITCH, METER CONTROLSWITCH, METER CONTROL
-
1698507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-05600-00 WASHER, PLATEWASHER, PLATE
-
184NK-83559-00-00 COVER, METERCOVER, METER
-
194NK-28345-00-00 MOLE 1MOLE 1
-
204NK-28346-00-00 MOLE 2MOLE 2
-
211FK-2171H-00-00 GUIDEGUIDE
-
2290149-06264-00 SCREWSCREW
-
234U5-2176E-00-00 PLATEPLATE
-
2411H-21747-00-00 DAMPERDAMPER
