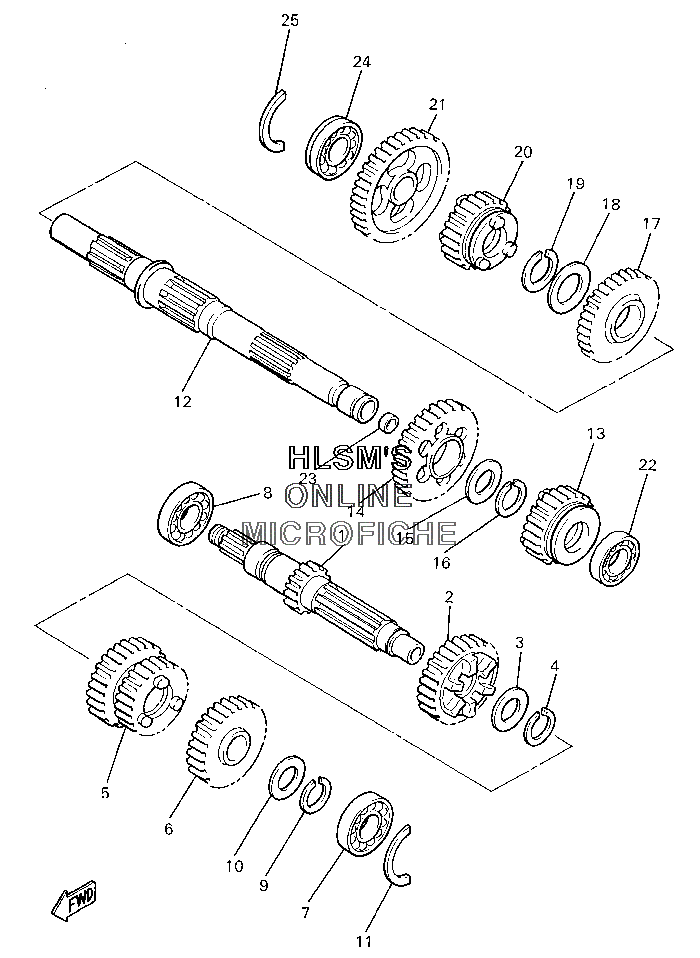

TRANSMISSION для Yamaha XVZ 1300 AT ROYAL STAR TOUR CLASSIC CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14NK-17411-01-00 AXLE, MAIN (16 TEETH)AXLE, MAIN (16 TEETH)
-
24NK-17141-01-00 GEAR, 4TH PINION (32 TEETH)GEAR, 4TH PINION (32 TEETH)
-
390209-25196-00 WASHERWASHER
-
493440-28062-00 CIRCLIPCIRCLIP
-
54NK-17121-01-00 GEAR, 2ND/3RD PINION (19/25 TEETH)GEAR, 2ND/3RD PINION (19/25 TEETH)
-
64NK-17151-00-00 GEAR, 5TH PINION (28 TEETH)GEAR, 5TH PINION (28 TEETH)
-
793306-30430-00 BEARINGBEARING
-
893306-36401-00 BEARINGBEARING
-
993410-23056-00 CIRCLIPCIRCLIP
-
1090201-232K5-00 WASHER, PLATEWASHER, PLATE
-
1193440-52118-00 CIRCLIPCIRCLIP
-
124NK-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
134NK-17251-00-00 GEAR, 5TH WHEEL (21 TEETH)GEAR, 5TH WHEEL (21 TEETH)
-
144NK-17221-01-00 GEAR, 2ND WHEEL (30 TEETH)GEAR, 2ND WHEEL (30 TEETH)
-
1590209-32231-00 WASHERWASHER
-
1693440-34025-00 CIRCLIPCIRCLIP
-
174NK-17231-01-00 GEAR, 3RD WHEEL (29 TEETH)GEAR, 3RD WHEEL (29 TEETH)
-
1890209-27192-00 WASHERWASHER
-
1993440-30077-00 CIRCLIPCIRCLIP
-
204NK-17241-01-00 GEAR, 4TH WHEEL (29 TEETH)GEAR, 4TH WHEEL (29 TEETH)
-
214NK-17211-01-00 GEAR, 1ST WHEEL (39 TEETH)GEAR, 1ST WHEEL (39 TEETH)
-
2293306-20645-00 BEARINGBEARING
-
2390331-15039-00 PLUGPLUG
-
2493306-20555-00 BEARINGBEARING
-
2593440-52118-00 CIRCLIPCIRCLIP
