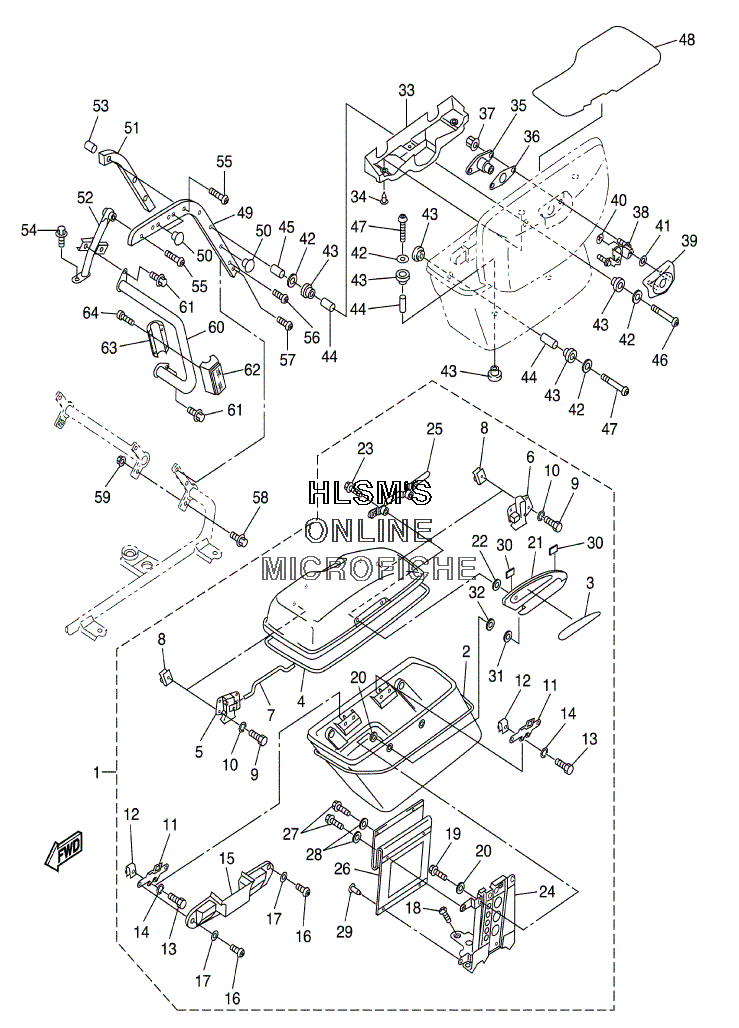

SADDLEBAG 1 для Yamaha XVZ 1300 TFS VENTURE MM LTD CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14XY-Y2843-C0-0X SADDLEBAG COMP, 1 (580) (VIVID RED COCKTAIL 7)SADDLEBAG COMP, 1 (580) (VIVID RED COCKTAIL 7)
-
24XY-2840G-20-00 ...SADDLEBAG GRAPHIC SET...SADDLEBAG GRAPHIC SET
-
34XY-2847A-50-00 ...ORNAMENT 1...ORNAMENT 1
-
44XY-28428-00-00 ...SEAL 1...SEAL 1
-
54XY-28494-00-00 ...HOOK 3...HOOK 3
-
64XY-28495-00-00 ...HOOK 4...HOOK 4
-
74XY-2841A-00-00 ...LEVER...LEVER
-
890183-05024-00 ...NUT, SPRING...NUT, SPRING
-
997007-05012-00 ...BOLT...BOLT
-
1092907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
114XY-28498-00-00 ...HOOK 2...HOOK 2
-
1290183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1397007-05016-00 ...BOLT...BOLT
-
1492907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
154XY-2843J-00-00 ...COVER 3...COVER 3
-
1692017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
1897707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1992017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2090201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
214XY-28444-10-00 ...HINGE 1...HINGE 1
-
2290202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2392017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
244XY-28427-00-00 ...REINFORCEMENT 1...REINFORCEMENT 1
-
254XY-2847H-00-00 ...PLATE 5...PLATE 5
-
264XY-2845M-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
2792017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2892907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
2990269-05039-00 ...RIVET...RIVET
-
304XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
3190201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
324XY-28429-00-00 ...SEAL 2...SEAL 2
-
334XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3490269-06081-00 RIVETRIVET
-
354XY-W2843-00-00 LOCK ASS'Y 3LOCK ASS'Y 3
-
364XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
3795607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
384XY-2849H-00-00 PLATE 6PLATE 6
-
394XY-2842A-00-00 COVER 5COVER 5
-
4090183-04005-00 NUT, SPRINGNUT, SPRING
-
414KJ-28371-00-00 DAMPERDAMPER
-
4290201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4390480-20447-00 GROMMETGROMMET
-
4490387-084R5-00 COLLARCOLLAR
-
4590387-0811N-00 COLLARCOLLAR
-
4692017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4792017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
484XY-2848K-00-00 SEAT 2SEAT 2
-
494XY-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
5090338-07259-00 PLUGPLUG
-
514YE-28415-00-00 DAMPER 1DAMPER 1
-
524YE-28413-01-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
5390387-0811N-00 COLLARCOLLAR
-
5495807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5592014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5692014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5792014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5895827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
5995307-08800-00 NUTNUT
-
604XY-2841K-00-00 GUARD, SADDLEBAG 1GUARD, SADDLEBAG 1
-
6195814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
624YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
634YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6497707-30514-00 SCREW, TAPPINGSCREW, TAPPING
