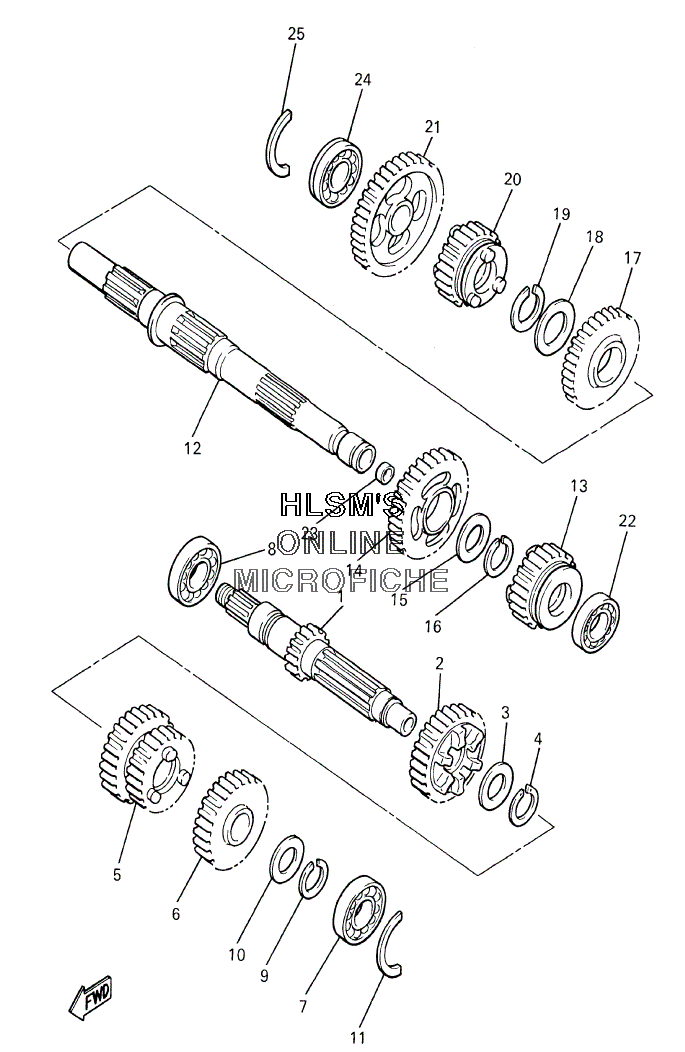

TRANSMISSION для Yamaha XVZ 1300 TFS VENTURE MM LTD CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14XY-17411-00-00 AXLE, MAIN (17 TEETH)AXLE, MAIN (17 TEETH)
-
24XY-17141-00-00 GEAR, 4TH PINION (25 TEETH)GEAR, 4TH PINION (25 TEETH)
-
390209-25196-00 WASHERWASHER
-
493440-28062-00 CIRCLIPCIRCLIP
-
54XY-17121-00-00 GEAR, 2ND/3RD PINION (19/25 TEETH)GEAR, 2ND/3RD PINION (19/25 TEETH)
-
64XY-17151-00-00 GEAR, 5TH PINION (28 TEETH)GEAR, 5TH PINION (28 TEETH)
-
793306-30430-00 BEARINGBEARING
-
893306-36401-00 BEARINGBEARING
-
993410-23056-00 CIRCLIPCIRCLIP
-
1090201-232K5-00 WASHER, PLATEWASHER, PLATE
-
1193440-52118-00 CIRCLIPCIRCLIP
-
124NK-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
134XY-17251-00-00 GEAR, 5TH WHEEL (22 TEETH)GEAR, 5TH WHEEL (22 TEETH)
-
144XY-17221-00-00 GEAR, 2ND WHEEL (31 TEETH)GEAR, 2ND WHEEL (31 TEETH)
-
1590209-32231-00 WASHERWASHER
-
1693440-34025-00 CIRCLIPCIRCLIP
-
174XY-17231-00-00 GEAR, 3RD WHEEL (30 TEETH)GEAR, 3RD WHEEL (30 TEETH)
-
1890209-27192-00 WASHERWASHER
-
1993440-30077-00 CIRCLIPCIRCLIP
-
204XY-17241-00-00 GEAR, 4TH WHEEL (24 TEETH)GEAR, 4TH WHEEL (24 TEETH)
-
214XY-17211-00-00 GEAR, 1ST WHEEL (43 TEETH)GEAR, 1ST WHEEL (43 TEETH)
-
2293306-20645-00 BEARINGBEARING
-
2390331-15039-00 PLUGPLUG
-
2493306-20555-00 BEARINGBEARING
-
2593440-52118-00 CIRCLIPCIRCLIP
